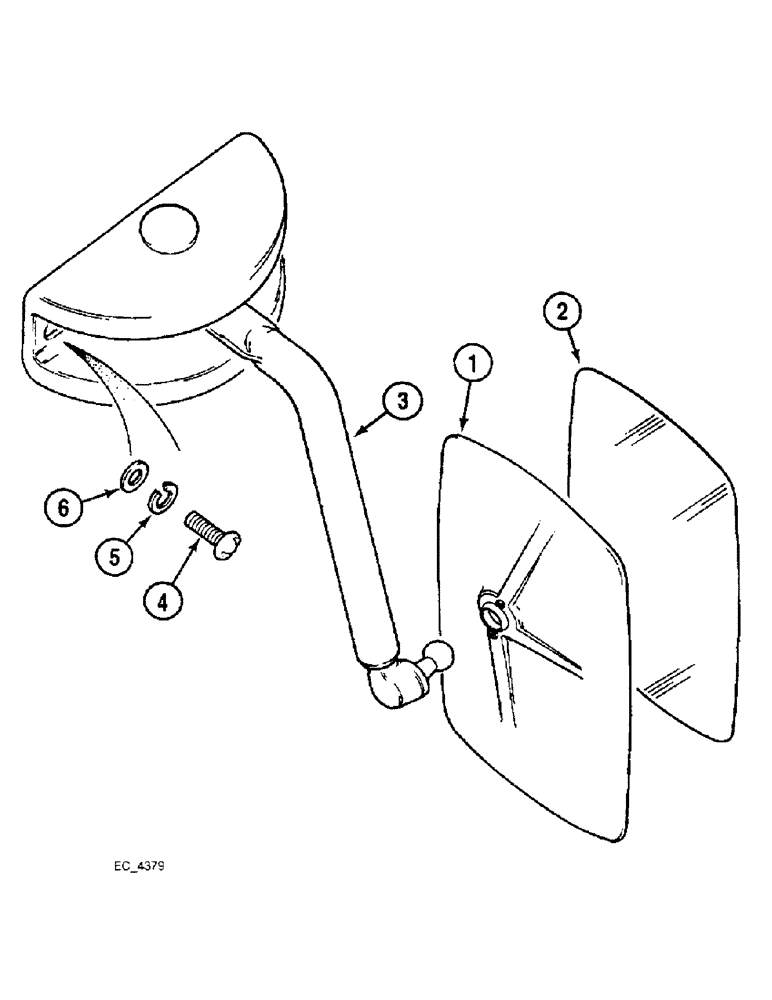

Запчасти Case IH 4240 (9-072) - CAB, WING MIRRORS (09) - CHASSIS/ATTACHMENTS

119286A1

MIRROR

ASSEMBLY - left

1шт.

119287A1

MIRROR

ASSEMBLY - right, Includes: Ref. 1 - 3

1шт.

1

K303758

MIRROR,160mm x 260mm

- exterior without arm, Includes: Ref. 2

1шт.

2

K261635

GLASS,CAB

GLASS - exterior mirror

1шт.

3

1970872C1

ARM

- mirror

1шт.

4

175950A1

HEX SOC SCREW,Btn Hd, M8 x 20mm, Cl 10.9

- pan, cross recess, 8 x 20 mm

4шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.
