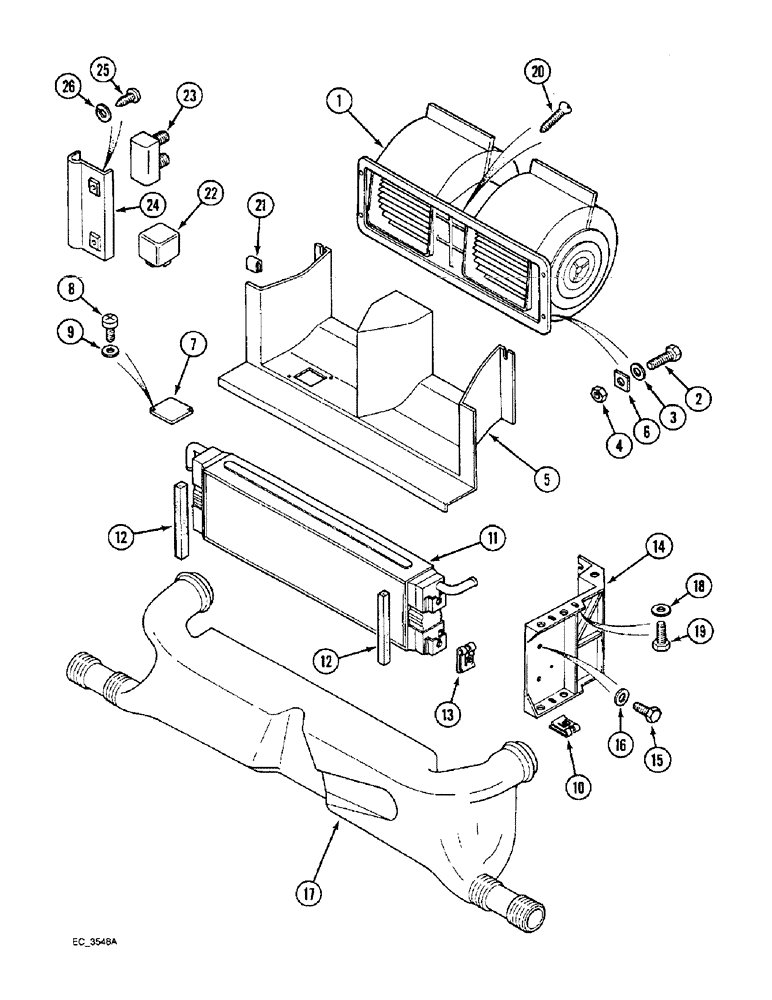

Запчасти Case IH 4240 (9-068) - CAB, HEATER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

3399493R92

HEATER

ASSEMBLY - heater, Includes: Ref. 1 - 26

1шт.

1

REF

INSTRUCTION

GLASS - window, air (See Figure 9-70)

1шт.

2

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 6 x 20 mm, class 8

4шт.

3

934753R1

WASHER

- flat

4шт.

4

825-1406

NUT,M6, Cl 8

4шт.

5

3233571R1

DEFLECTOR

- air

1шт.

6

3402978R1

PLATE

- mounting

2шт.

7

1535269C1

COVER

- deflector

2шт.

8

905922R1

SCREW,M4 x 8mm

- pan, 4 x 8 mm class 4.8

2шт.

9

893-11004

LOCK WASHER,Ext Tooth, M4

2шт.

10

3233707R1

SPRING NUT

- spring, push on

2шт.

11

3233586R91

HEAT-EXCHANGER

ELEMENT ASSEMBLY - heat exchanger, Includes: Ref. 12 and 13

1шт.

12

1283288C1

GASKET

- foam

2шт.

13

3233660R1

SPRING NUT

- spring, push on

4шт.

14

3233574R1

SUPPORT

- right

1шт.

14

3402833R1

SUPPORT

- left

1шт.

15

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

16

934753R1

WASHER

- flat

4шт.

17

3233567R1

MANIFOLD

DEFLECTOR - blower

1шт.

18

934753R1

WASHER

- flat

4шт.

19

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

20

3404394R1

SCREW

- mounting

1шт.

21

3404393R1

CLIP

- protection

2шт.

22

1983394C2

RELAY

- electrical, 30 amp

2шт.

23

245763C1

CIRCUIT-BREAKER,20A

BREAKER - circuit, 20 ampere

1шт.

23

403069R1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 ampere, Serial Range: (Optional-245763C1)

1шт.

23

245765C1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 ampere

1шт.

23

403069R1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 ampere, Serial Range: (Optional-245765C1)

1шт.

24

20-1171T1

SUPPORT

BRACKET - mounting, circuit breaker (Not used with 403069C1)

1шт.

25

760-14413

SELF-TAP SCREW,Pan Hd, M4.8 x 13

SCREW, SELF TAPPING, Pan Hd, M4.8 x 13

1шт.

26

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.
