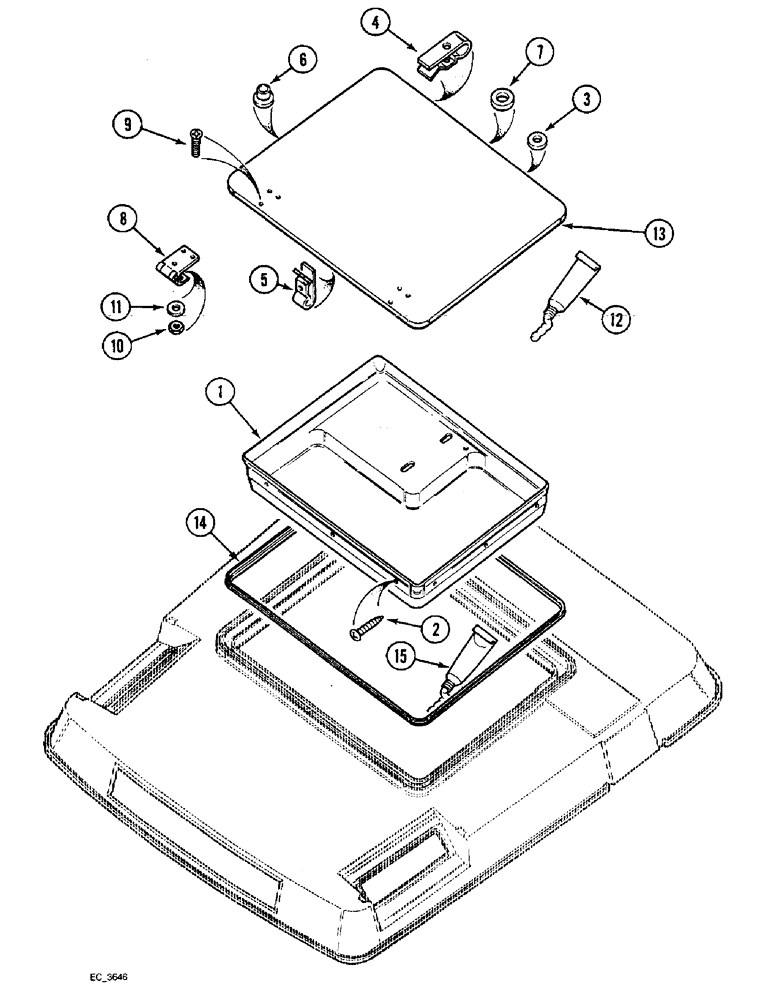

Запчасти Case IH 4240 (9-048) - CAB, ROOF HATCH SEAL SERVICE KIT (09) - CHASSIS/ATTACHMENTS

133071A1

HATCH, ASSY.

HATCH ASSEMBLY - roof, Includes: Ref. 1 - 15

1шт.

133072A1

HATCH

ASSY. - roof, Includes: Ref. 1 - 13

1шт.

1

82462C2

PADDING

LINING - hatch

1шт.

2

765-14322

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW - tapping, oval cross recess, 4.2 x 22 mm

19шт.

3

3234234R1

WASHER

- cover, recess, 4.2 x 22 mm

3шт.

4

3234042R1

SPRING NUT

- spring, 4.2 mm, push-on

5шт.

5

3234214R1

SPRING NUT

- spring, push-on

14шт.

6

3234052R1

WASHER

- cup, 6 mm

3шт.

7

P3528799

WASHER

SPACER - bolt

2шт.

8

1328160C2

HINGE

- roof hatch

2шт.

9

843-2612

SCREW,Flat , M6 x 16.3mm OAL, Cl 4.8

- countersunk, cross recess, 6 x 12 mm

2шт.

10

825-1406

NUT,M6, Cl 8

2шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

3234047R1

PLASTIC GASKET

ADHESIVE - silicon

1шт.

13

82456C3

HATCH

- cab roof

1шт.

14

1328329C2

SEAL

- roof hatch

1шт.

15

116555A1

SEAL

ADHESIVE - black silicon

1шт.
