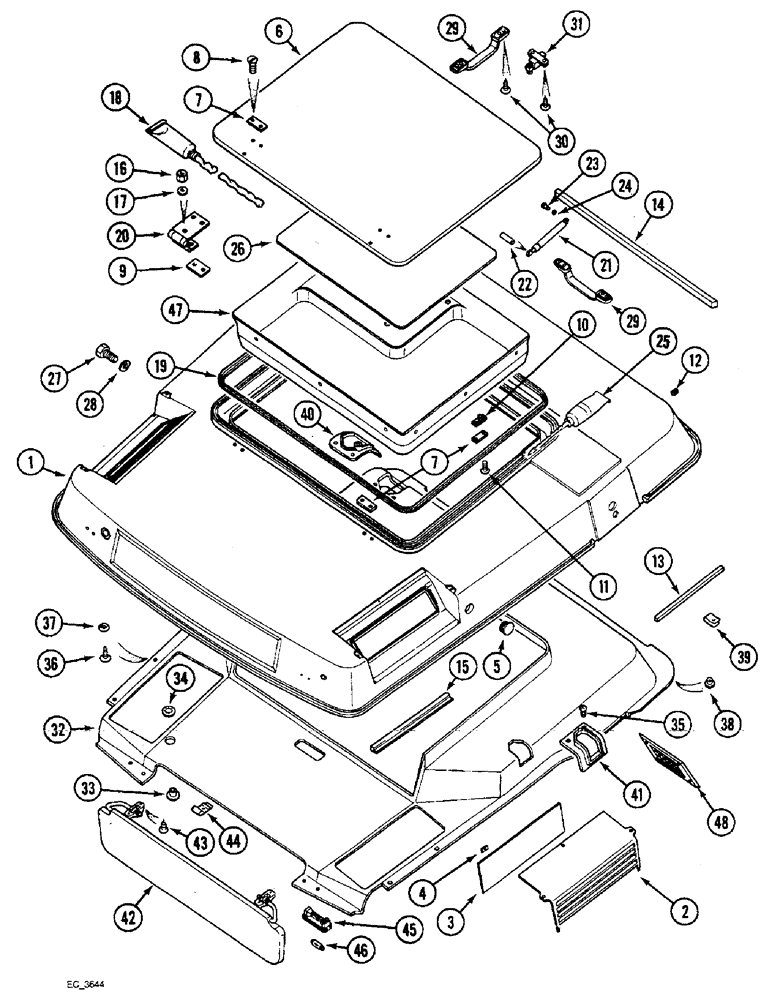

Запчасти Case IH 4240 (9-044) - CAB, ROOF FRAME (09) - CHASSIS/ATTACHMENTS

116702A2

CAB

- complete with trim (With air conditioning)

1шт.

116694A1

CAB

- complete with trim (Without air conditioning), Includes: Ref. 1 - 48

1шт.

NSS

NOT SOLD SEPARAT

ROOF ASSEMBLY - cab, with cover, Includes: Ref. 1 - 25

1шт.

1

141826A1

ROOF

FRAME ASSEMBLY - roof

1шт.

2

3233568R2

SIEVE

GRILLE - cab recirculation

2шт.

3

3234118R2

FILTER SCREEN

SCREEN - cab recirculation

2шт.

4

3234041R1

SPRING NUT

NUT - spring

8шт.

5

3233692R2

PLUG

- rubber

2шт.

6

REF

INSTRUCTION

HATCH ASSEMBLY - cab roof (See Figure 9-48)

1шт.

7

1535322C1

PLATE

STRIP - support

6шт.

8

3402573R1

SCREW,Hex Flat Hd, M6 x 12, 4.8

- cross recess, 6 x 12 mm

10шт.

9

3233671R1

PLATE

- with thread

4шт.

10

3233680R4

HOLDER

BRACKET - gas spring anchor

2шт.

11

3234171R1

SCREW

- hi-lo

10шт.

12

3234212R2

PLUG

- cover

6шт.

13

3402920R2

SEAL

STRIP - roof, 440 mm

2шт.

14

1280239C1

GASKET

GASKET - foam

1шт.

15

1280448C1

SEAL

SEAL - cab recirculation, 280 mm

2шт.

16

825-1406

NUT,M6, Cl 8

2шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

18

3234047R1

PLASTIC GASKET

ADHESIVE - silicon, 310 ml

1шт.

19

1328329C2

SEAL

- roof hatch

1шт.

20

1328160C2

HINGE

- roof hatch

2шт.

21

3399422R3

GAS STRUT,225mm Extended, 165mm Compressed

STRUT - gas filled

2шт.

22

738-5614

LOCK PIN,6mm OD x 14mm L, Slotted

PIN - roll, 6 x 14 mm

2шт.

23

3234082R1

PIN

- gas strut swivel

2шт.

24

3233681R1

SNAP RING

RING - retaining

2шт.

25

116555A1

SEAL

ADHESIVE - black silicon

1шт.

26

1330746C1

FOAM

PAD - foam

1шт.

27

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 14 mm

6шт.

28

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

29

3234209R1

HANDLE

- door, roof

3шт.

30

761-14322

SELF-TAP SCREW,Pan Hd, M4.2 x 22

SCREW - tapping, round cross recess, 4.2 x 22 mm

14шт.

31

3234190R1

LOCK

CATCH - hatch retaining

1шт.

32

132998A1

ROOF LINING

LINING - cab roof (With air conditioning) (4210/4230 only)

1шт.

32

133195A1

ROOF LINING

LINING - cab roof (Without air conditioning)

1шт.

33

133094A1

BUSHING

- screw

1шт.

34

3234395R1

PUSH-ON NUT

WASHER - lock

1шт.

35

905930R1

SELF-TAP SCREW,Flat Hd, M4.2 x 13

SCREW - tapping, 4.2 x 13 mm, flat cross recess

1шт.

36

3233378R1

SELF-TAP SCREW,Oval Hd, M4.2 x 19

SCREW - tapping oval cross recess, 4.2 x 19 mm

1шт.

36

765-14322

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW - tapping, oval cross recess, 4.2 x 22 mm

1шт.

37

3402617R1

CUP WASHER

WASHER - cup

1шт.

38

3234052R1

WASHER

- cup, 6 mm

1шт.

REF

INSTRUCTION

CAB - complete with trim (With air conditioning)

1шт.

REF

INSTRUCTION

CAB - complete with trim (Without air conditioning)

1шт.

39

3234042R1

SPRING NUT

- spring, 4.2 mm, push-on

1шт.

39

3234191R1

SPRING NUT

- spring, push-on

1шт.

39

3234214R1

SPRING NUT

- spring, push-on

1шт.

40

133002A1

COVER

- blanking

2шт.

41

1330715C2

COVER

- blanking (If equipped)

2шт.

42

3234218R2

VISOR, SUN

VISOR - sun

1шт.

43

765-14322

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW - tapping, oval cross recess, 4.2 x 22 mm

4шт.

44

3234214R1

SPRING NUT

- spring, push-on

4шт.

45

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome, courtesy (See Figure 4-4), Includes: Ref. 46

1шт.

46

710196R1

BULB,C5W, 12V, 5W

LAMP - C11, 12 volt/ 5 watt, festoon

1шт.

47

133001A1

ROOF LINING

LINING - roof hatch

1шт.

48

REF

INSTRUCTION

GRILLE - speaker (See Figure 9-50)

1шт.
