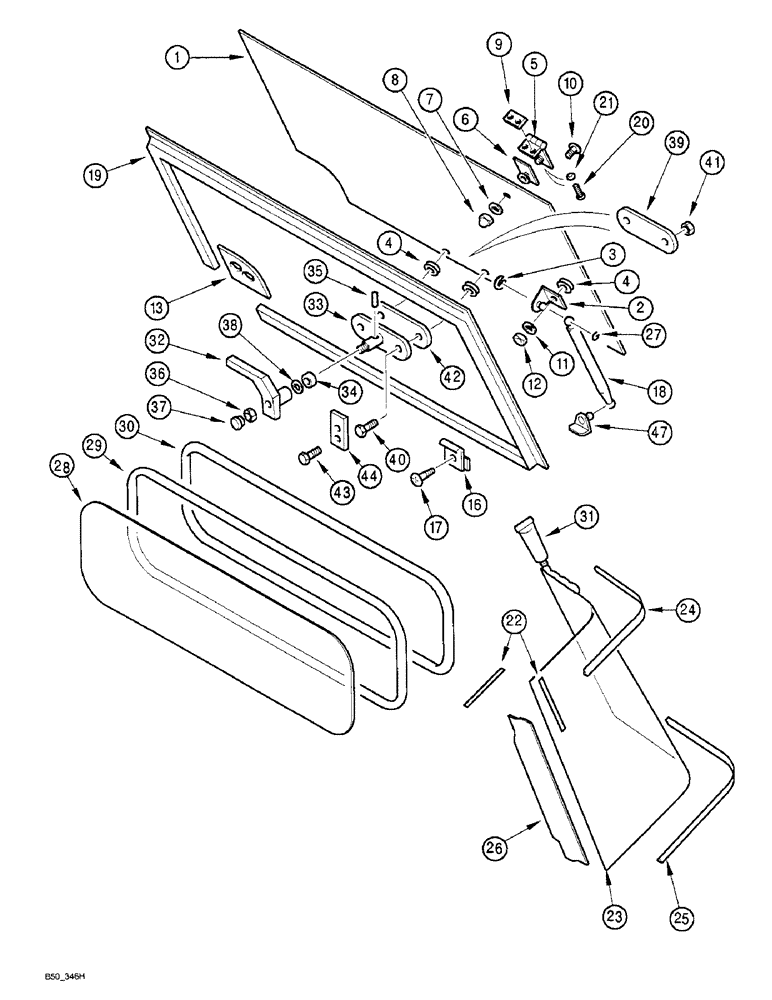

Запчасти Case IH 4240 (9-042) - CAB, REAR WINDOWS (09) - CHASSIS/ATTACHMENTS

116702A2

CAB

- complete with trim (With air conditioning)

1шт.

116773A1

CAB

- complete with trim (Without air conditioning), Includes: Ref. 1 - 27

1шт.

3234162R96

GLASS

WINDOW - assembly, upper rear, Includes: Ref. 1 - 12

1шт.

1

182027A1

GLASS

- rear upper window (Without cable access)

1шт.

1

126317A1

GLASS

- rear upper window (With cable access)

1шт.

2

3233683R91

HOLDER

BRACKET - gas strut

1шт.

3

3233695R1

PROTECTOR

- operator

1шт.

4

3234066R1

GROMMET

- rear upper window

3шт.

5

1535229C2

HINGE

- rear upper window

2шт.

6

3234167R1

GROMMET

- rear upper window hinge

2шт.

7

906007R1

WASHER,M8.4 x 25 x 2.5

- flat, 8 mm

7шт.

8

3221592R1

CAP

NUT - crown

3шт.

9

3233679R1

PLATE

- support

2шт.

10

30301R1

SCREW,Cross Pan Hd, M8 x 20

- pan, 8 x 20 mm, cross recess

5шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

12

825-1408

NUT,M8, Cl 8

1шт.

13

126322A2

PAD, RUBBER

GROMMET - 20 mm

1шт.

16

3233691R1

COVER

PLATE - locking

1шт.

17

761-17213

SELF-TAP SCREW,Pan Hd, M3.9 x 13

SCREW - tapping, round cross recess, 3.5 x 13 mm

2шт.

18

3234163R1

GAS STRUT,549mm Extended, 329mm Compressed

STRUT - gas filled

1шт.

19

126318A1

SEAL

SEAL - rear upper window

1шт.

20

543-706

SCREW,Hex Flat Hd, M6 x 16, 4.8

- countersunk 6 x 16 mm, flat cross recess

4шт.

21

892-11006

LOCK WASHER,M6

WASHER, LOCK, , Toothed M6

4шт.

22

P741441

SPACER

PLUG - door frame, bonded glass

1шт.

23

3233040R1

CAB GLASS

GLASS - rear left window

1шт.

23

3233041R1

CAB GLASS

GLASS - rear right window

1шт.

24

3234050R2

SEAL, GLASS

UPPER SEAL - bottom, rear side window (Replaces 3234051R2)

1шт.

25

3234051R2

SEAL, GLASS

SEAL - bottom, rear side window

1шт.

26

3405554R1

SILL

- window

2шт.

27

3404206R1

BALL STUD

- retaining

2шт.

28

98041C1

GLASS

WINDOW - lower, rear

1шт.

29

1535585C1

DOOR SEAL

SEAL - lower rear window

1шт.

30

P346008

SEAL

STRIP - filler

1шт.

3404053R92

REPAIR KIT

- service, glass installation, Includes: Ref. 31

1шт.

31

3399917R1

GLUE

FLUID - cartridge, 300 ml

1шт.

224736A1

HANDLE

ASSEMBLY - window, Includes: Ref. 32 - 38

1шт.

32

224731A1

HANDLE

- rear window

1шт.

33

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY - clamping (Order 224736A1)

1шт.

34

1340206C1

RUBBER BUSHING

BUSHING - rubber

1шт.

35

38-21010

PIN,3.96mm OD x 15.88mm L, Coiled

1шт.

36

825-1406

NUT,M6, Cl 8

, Serial Range: -JKJ156935

1шт.

36

825-1408

NUT,M8, Cl 8

, Start Serial: JKJ156936

1шт.

37

1340207C1

PLUG

- window hinge, Serial Range: -JKJ156935

1шт.

37

224734A1

PLUG

- window handle, Start Serial: JKJ156936

1шт.

38

495-81018

WASHER,17/32" x 7/8" x .060"

- flat, 17/32 x 7/8 x 1/16 inch

1шт.

39

1535255C1

LARGE PLATE

PLATE - handle clamping

1шт.

40

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

41

97005C1

FLANGE NUT

- hex flange, self-locking, special, 6 mm - 1

2шт.

42

1535256C1

GASKET,3mm Thk

PAD - clamping plate

2шт.

43

905998R1

SCREW,Phillips Drive, Flat HD, M6 x 20mm, Cl 4.8

- locking plate

1шт.

44

1535257C1

LARGE PLATE

PLATE - locking

1шт.

47

3233933R1

SUPPORT ASSY.

HOLDER - gas, strut

1шт.
