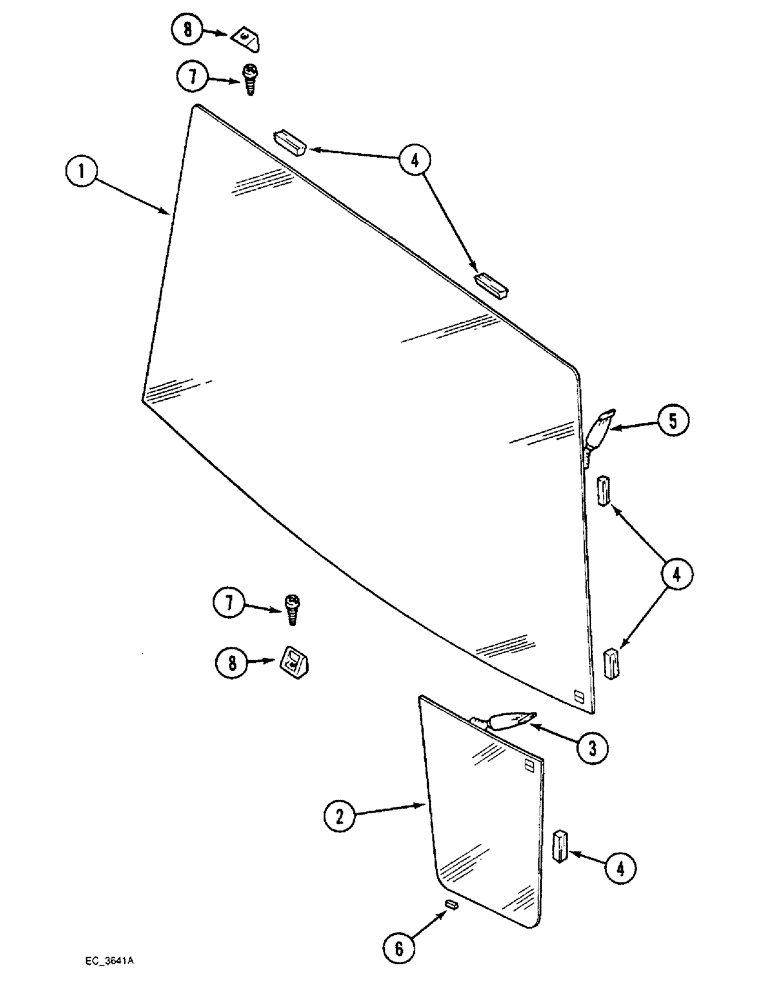

Запчасти Case IH 4240 (9-040) - CAB, WINDSHIELD (09) - CHASSIS/ATTACHMENTS

116702A2

CAB

- complete with trim (With air conditioning)

1шт.

116773A1

CAB

- complete with trim (Without air conditioning), Includes: Ref. 1 - 6

1шт.

1

3234160R91

GLASS

- assembly, windshield, Includes: Ref. 1 and 2

1шт.

1

3233045R1

GLASS

- windshield

1шт.

2

3233036R1

GLASS

- windshield, lower left

1шт.

2

3233037R1

GLASS

- windshield, lower right

1шт.

3404053R92

REPAIR KIT

- service, glass installation, Includes: Ref. 3

1шт.

3

3399917R1

GLUE

FLUID - cartridge, 300 ml

1шт.

4

P741441

SPACER

PLUG - door frame, bonded glass

10шт.

5

3404053R92

REPAIR KIT

- service, glass installation, Includes: Ref. 3

1шт.

3

3399917R1

GLUE

FLUID - cartridge, 300 ml

1шт.

6

3233689R2

PAD, RUBBER

PAD - rubber

4шт.

7

761-17213

SELF-TAP SCREW,Pan Hd, M3.9 x 13

SCREW - tapping, round cross recess, 3.5 x 13 mm

9шт.

8

3233675R3

SUPPORT

RETAINER - window, glass

9шт.
