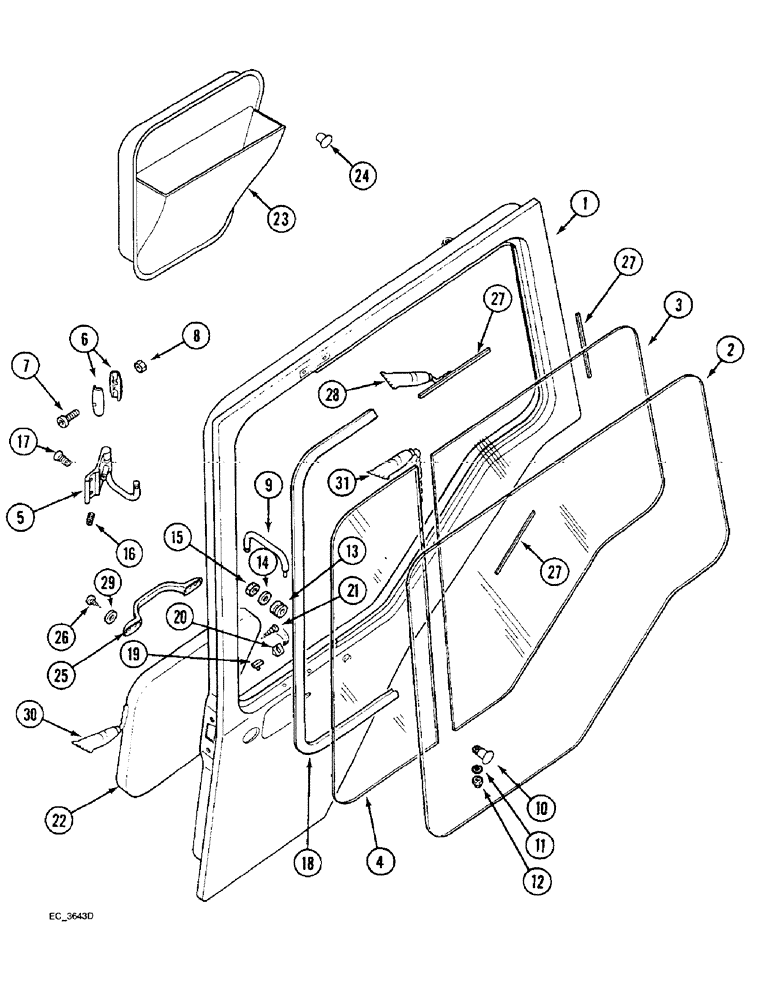

Запчасти Case IH 4240 (9-038) - CAB, DOORS, WINDOWS AND TRIM (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

CAB - complete with trim (See Figure 9-30), Includes: Ref. 1 - 29

1шт.

1

REF

INSTRUCTION

DOOR ASSEMBLY - left, black and red (See Figure 9-34)

1шт.

1

REF

INSTRUCTION

DOOR ASSEMBLY - right, black and red (See Figure 9-34)

1шт.

2

1975195C1

GLASS

- door (Fixed non-venting type)

2шт.

3234126R1

GLASS

- door, venting, Includes: Ref. 3 and 4

1шт.

3

3233051R1

GLASS

- door

2шт.

4

3233053R1

GLASS

- door

2шт.

3234145R91

HANDLE

STAY - window, left

1шт.

3234146R91

HANDLE

STAY - window, right, Includes: Ref. 5 - 15

1шт.

5

NSS

NOT SOLD SEPARAT

HINGE - window stay

1шт.

6

3233687R1

SHELL

HANDLE - window stay

2шт.

7

565-104

HEX SOC SCREW,M6 x 20mm, Cl 8.8

SCREW, Hex Soc Hd, M6 x 20, 8.8

1шт.

8

825-1406

NUT,M6, Cl 8

1шт.

9

NSS

NOT SOLD SEPARAT

ROD - window stay

1шт.

10

3233678R1

SCREW

BOLT - special, window stay

1шт.

11

3232883R1

WASHER

WASHER - plain, 8 mm

1шт.

12

3233290R1

NUT

- hex crown, 8 mm - 1.25

1шт.

13

3233670R1

GROMMET

- window

1шт.

14

3233328R1

WASHER,M17

- flat, 17 mm

1шт.

15

3233326R1

THIN NUT,Thin, M16 x 1.5, Cl 04

- hex, 6 mm

1шт.

16

3233323R1

SCREW,Slotted Shoulder, M5 x 3

- set, 5 x 10 mm

1шт.

17

543-706

SCREW,Hex Flat Hd, M6 x 16, 4.8

- countersunk 6 x 16 mm

4шт.

18

3234056R2

SEAL

STRIP - sealing, 1345 mm

2шт.

19

3233689R2

PAD, RUBBER

PAD - rubber

4шт.

20

3233675R3

SUPPORT

RETAINER - window

8шт.

21

761-17213

SELF-TAP SCREW,Pan Hd, M3.9 x 13

SCREW - tapping, round cross recess, 3.5 x 13 mm

8шт.

22

133014A1

COVER

- left door

1шт.

23

133016A1

POCKET

- right door

1шт.

24

3404078R1

PLUG

- pin, 6 OD x 13.5 mm

4шт.

25

3234209R1

HANDLE

- door

2шт.

26

761-14322

SELF-TAP SCREW,Pan Hd, M4.2 x 22

SCREW - tapping, round cross recess, 4.2 x 22 mm

8шт.

27

P741441

SPACER

PLUG - door frame, bonded glass

10шт.

3404053R92

REPAIR KIT

- service, glass installation, Includes: Ref. 28

1шт.

28

3399917R1

GLUE

FLUID - cartridge, 300 ml, glass installation

1шт.

29

3233254R1

WASHER,M4.3 ID x 9 OD x .8 Thk

- 4 mm

8шт.

30

1332211C1

GLUE

ADHESIVE - flexible

1шт.

31

B17576

GASKET MAKER FLUID

SEALANT - gasket, RTV No. 595, clear, 300 ml tube

1шт.
