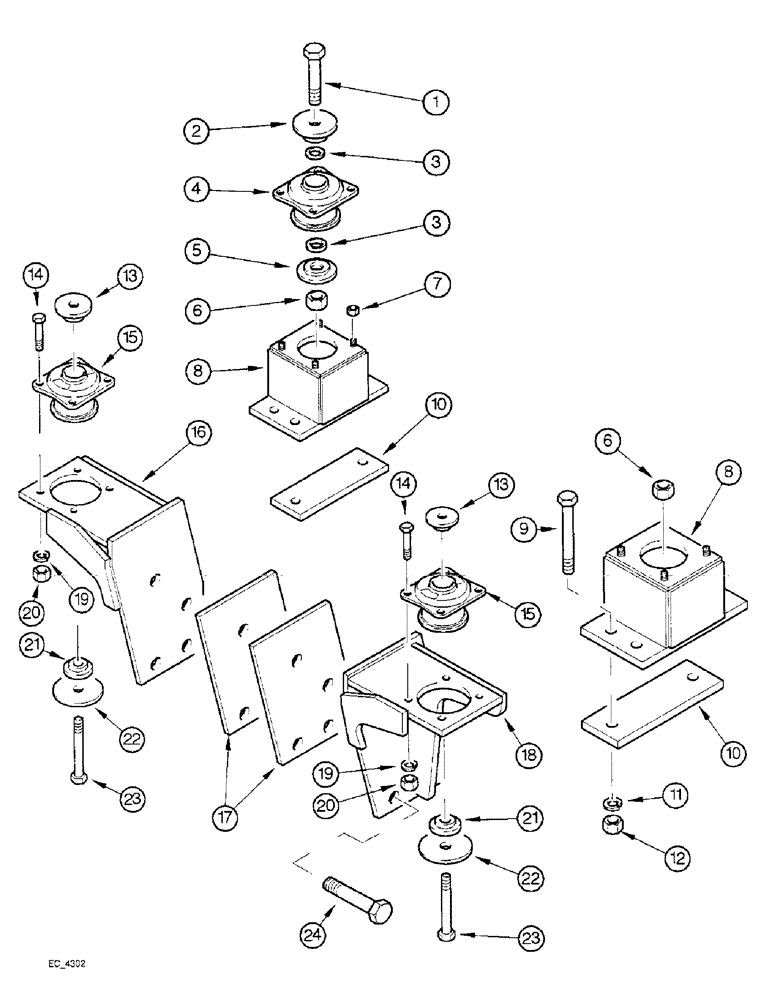

Запчасти Case IH 4240 (9-028) - CAB MOUNTINGS, REAR ISO MOUNTS, FRONT ISO MOUNTS (09) - CHASSIS/ATTACHMENTS

1

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, G8, rear ISO mounts

2шт.

2

3116801R1

CUP WASHER

WASHER - cone, rear ISO mounts

2шт.

3

3048473R2

WASHER

- centralizing, rear ISO mounts

2шт.

4

1533773C1

DAMPER

MOUNTING - rubber, rear ISO mounts

2шт.

5

3116148R1

WASHER

- rebound, rear ISO mounts

2шт.

6

3100765R2

LOCK NUT

- hex, 5/8 inch NC, Philidas lock, rear ISO mounts

2шт.

7

825-1410

NUT,M10, Cl 8

Rear ISO mounts M10, Cl 8

8шт.

8

91863C2

SUPPORT ASSY.

SUPPORT ASSEMBLY - rear isomount, rear ISO mounts

2шт.

9

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch, rear ISO mounts

4шт.

10

1500903C3

PLATE

- front axle mounting, rear ISO mounts

2шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Rear ISO mounts 5/8"

4шт.

12

425-1010

NUT,5/8"-11, G5

Rear ISO mounts 5/8"-11, G5

4шт.

13

1537383C1

CUP WASHER

- mounting upper, front ISO mounts

2шт.

14

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Front ISO Mounts Hex, M10 x 25, 8.8, Full Thd

8шт.

15

1537382C1

SILENTBLOC

MOUNTING - cab front, front ISO mounts

2шт.

16

1537158C2

SUPPORT

BRACKET ASSEMBLY - front right, front ISO mounts

1шт.

17

3129865R2

SPACER

- mounting bracket, front ISO mounts

2шт.

18

1537155C2

SUPPORT

BRACKET ASSEMBLY - front left, front ISO mounts

1шт.

19

892-11010

LOCK WASHER,M10

Front ISO mounts M10

8шт.

20

825-1410

NUT,M10, Cl 8

Front ISO mounts M10, Cl 8

8шт.

21

1537191C1

WASHER

- mounting lower, front ISO mounts

2шт.

22

1537176C1

WASHER

- rebound, front ISO mounts

2шт.

23

827-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

hex, 12 - 1.75 x 20 mm, 10.9, Front ISO mounts

2шт.

24

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8, front ISO mounts

8шт.
