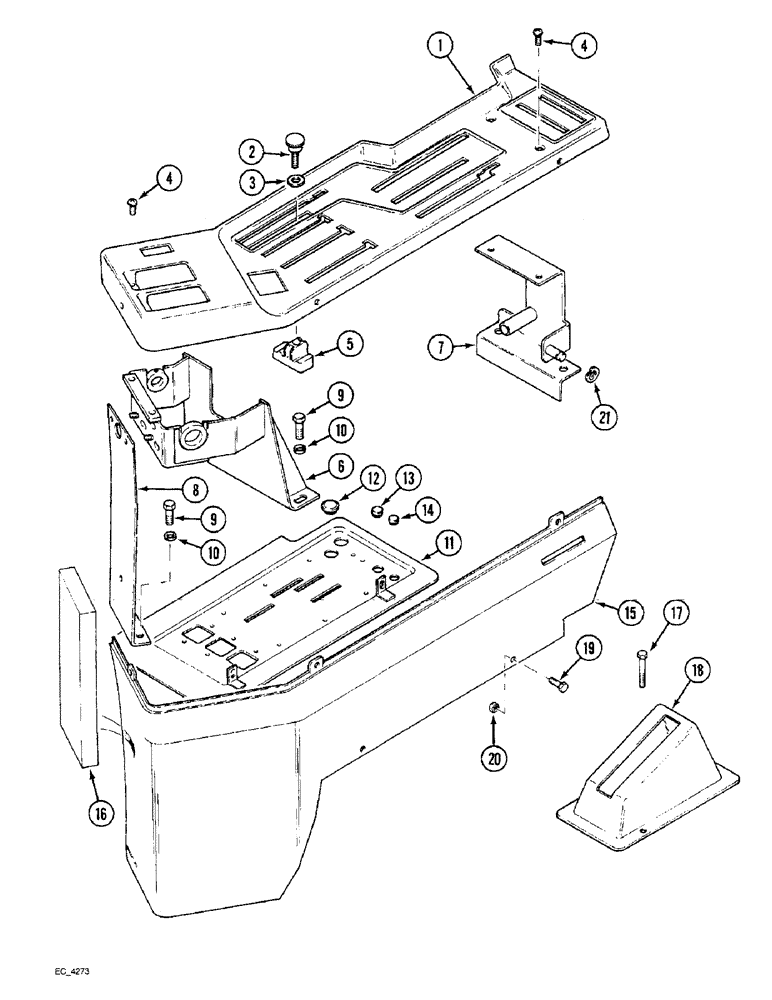

Запчасти Case IH 4240 (9-016) - CONTROL CONSOLE RIGHT, TRACTOR WITH CAB (09) - CHASSIS/ATTACHMENTS

1

114732A5

COVER

CONSOLE - side panel control, top

1шт.

2

96860C1

KNOB

- position stop

1шт.

3

1971243C1

WASHER

- nylon, 7.13 x 19.1 x 3.2 mm

1шт.

4

540-704

SCREW,Cross Pan Hd, M6 x 16

- pan head, 6 x 16 mm

4шт.

5

1259806C1

BAR

- stop-handle

1шт.

6

119234A1

SUPPORT ASSY.

BRACKET - shift lever support

1шт.

7

116488A3

SUPPORT ASSY.

BRACKET - lever pivot

1шт.

8

122846A1

SUPPORT

BRACE - support

1шт.

9

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

11

118471A2

COVER

PLATE - adapter

4шт.

12

353-426

PLUG,1" Hole, Nylon

Flat face pry out 1" Hole, Nylon

1шт.

13

353-427

PLUG,9/16" Hole, Nylon

- pry-out, 5/8 inch

1шт.

14

353-428

PLUG,3/4" Hole, Nylon

- pry-out, 3/4 inch

1шт.

133315A3

COVER ASSY

COVER - console, side, Includes: Ref. 15 and 16

1шт.

15

114733A4

COVER

- console, side

1шт.

16

133316A1

LINING

INSULATOR - pad

1шт.

17

3225053R1

SCREW

BOLT - hex, 6 mm x 16 mm

3шт.

18

116556A2

COVER

- park brake

1шт.

19

1990952C1

CAPTIVE WASHER SCREW,Phillips Drive, Pan HD, M16 x 1 x 25.4mm

SCREW - cross slotted truss, 10-16 x 1 inch

3шт.

20

96900C1

SPRING NUT,U, #10-16, Panel type

Speed U, #10-16, Panel type

2шт.

20

133754A1

SPRING NUT,U, #10-16, Panel type

1шт.

21

800-4310

CIRCLIP,M10

Ring, Retaining, External, M10

1шт.
