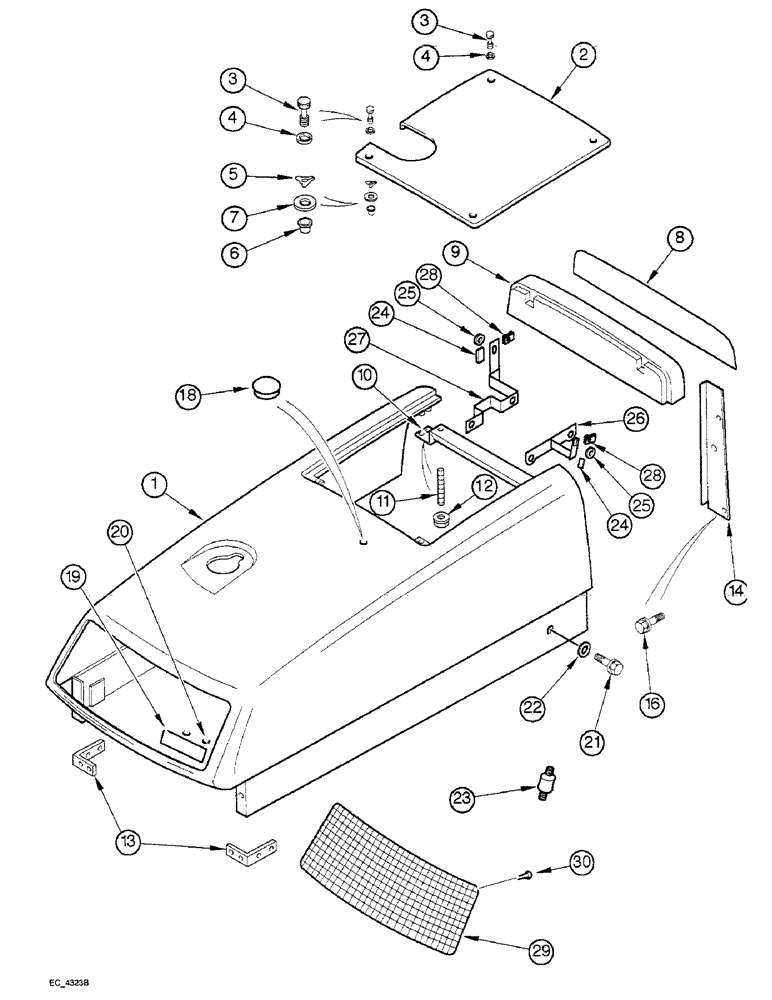

Запчасти Case IH 4240 (9-010) - HOOD (09) - CHASSIS/ATTACHMENTS

1

137453A1

HOOD ASSY.

HOOD ASSEMBLY - (Without cab)

1шт.

1

137461A1

HOOD ASSY.

HOOD ASSEMBLY - (With cab)

1шт.

2

138244A1

COVER

- rear hood (4210/4230 Without cab)

1шт.

2

138246A1

COVER

- rear hood (4210/4230 With cab)

1шт.

2

138668A1

COVER

- rear hood (4240 Without cab)

1шт.

2

138670A1

COVER

- rear hood (4240 With cab)

1шт.

2

138242A1

COVER

- rear hood (With underslung exhaust)

1шт.

2

192041A1

COVER

- rear hood (With downswept exhaust) (With cab)

1шт.

3

139161A2

SCREW,Sl Knurled Hd, M8 x 1.25 x 35mm

BOLT - special

4шт.

4

139657A1

WASHER

- flat

4шт.

5

3221347R2

CIRCLIP

RING - retaining

4шт.

6

140540A1

NUT

FASTENER - rivet, M8

2шт.

7

495-51047

WASHER,0.47" ID x 0.88" OD x 0.06" Thk

- flat, 15/32 x 7/8 x 1/16 inch

2шт.

8

138006A2

DECAL

- windshield

1шт.

9

143551A2

SEAL

- hood rear (With cab)

1шт.

10

140465A1

SUPPORT

- access cover rear

1шт.

11

1537389C1

STUD

- flange, 6 mm, class 8

1шт.

12

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

13

138208A1

ANGLE

BRACKET - hood front support

2шт.

14

223215A1

SUPPORT

BRACKET - hood side, right

1шт.

14

223214A1

SUPPORT

BRACKET - hood side, left

1шт.

16

555-3

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- hex, 8 x 16 mm

4шт.

19

220980A1

EMBLEM CASE/IH

MEDALLION - case logo

1шт.

20

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push-on type, 1/4 inch

2шт.

21

139451A1

BOLT,Hex, 5/16" - 18 x 1 1/2", W/ Spcl Coating

BOLT - hex, 5/16 x 1-1/2

2шт.

22

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

23

3129866R1

SHOCK ABSORBER

BLOCK - isolating (See Figure 5-4)

2шт.

24

1333189C2

RUBBER BLOCK

PAD - isolating

2шт.

25

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

- flat, 9 x 21 x 1.6 mm

2шт.

26

195461A1

SUPPORT

BRACKET - hood mounting left (4210/4230)

1шт.

26

224943A1

SUPPORT

BRACKET - hood mounting left (4240)

1шт.

27

195465A1

SUPPORT

BRACKET - hood mounting right

1шт.

28

3129868R1

NUT

- caged, 5/16 inch

2шт.

29

137497A1

SIEVE

SCREEN

1шт.

30

139445A1

SCREW

5шт.
