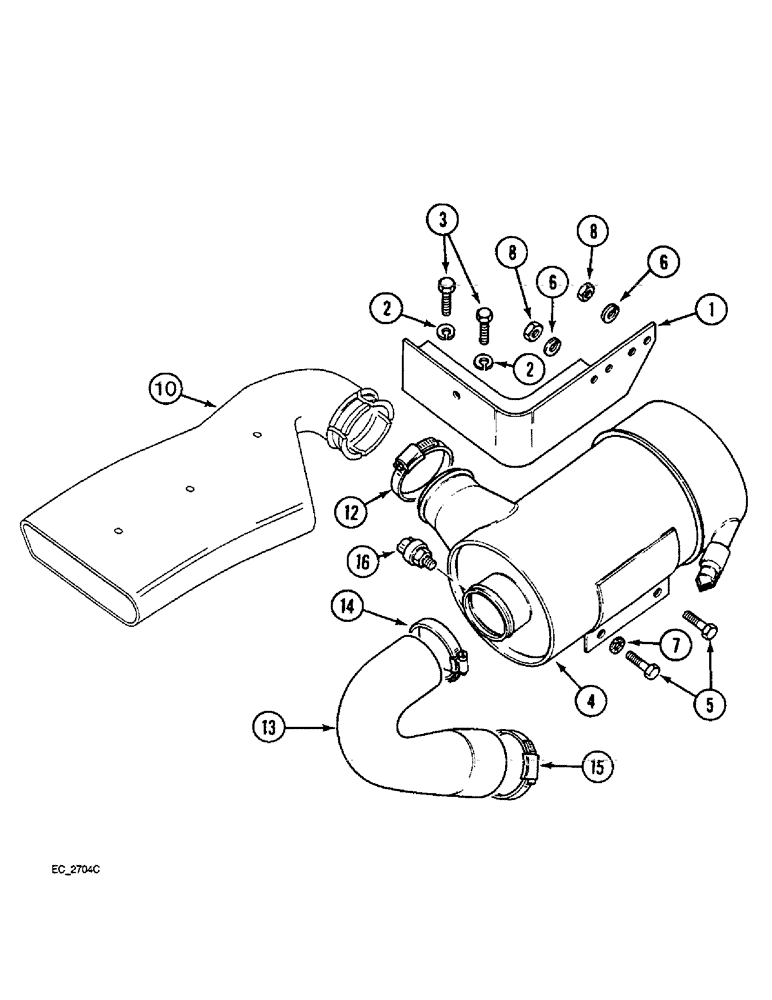

Запчасти Case IH 4240 (2-24) - AIR CLEANER MOUNTING (02) - ENGINE

1

1536485C2

SUPPORT

BRACKET - air cleaner mounting

1шт.

2

492-11038

LOCK WASHER,3/8"

2шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

4

84490C91

AIR CLEANER

CLEANER ASSEMBLY - air, 8 inch (4210/30) (See Figure 2-28)

1шт.

4

1536486C1

AIR CLEANER

CLEANER ASSEMBLY - air (4240) (See Figure 2-26)

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (With air cond) (4210/30)

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER - external tooth lock, 3/8 inch

1шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

10

136176A2

DUCT

- air inlet

1шт.

12

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, #64, 3.56/4.50 Type F Worm

1шт.

13

402622R1

INTAKE AIR HOSE,69.80 mm ID x 194.30 mm

- Air Cleaner Outlet (With air cond)(4210/30) 69.80 mm ID x 194.30 mm

1шт.

13

3125121R3

INTAKE AIR HOSE,70.00 mm ID, 88.90 mm ID x 255.00 mm

Air Cleaner Outlet (4210/30) 70.00 mm ID, 88.90 mm ID x 255.00 mm

1шт.

13

194757A2

HOSE,70.00 mm ID, 88.90 mm ID x 347.00 mm

Air Cleaner Outlet 70.00 mm ID, 88.90 mm ID x 347.00 mm

1шт.

14

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - hose, Type F No. 48

2шт.

15

214-1556

HOSE CLAMP,#56, 3.06" - 4", Type F Worm, W/ Liner

CLAMP - hose, Type F No. 56 with liner

2шт.

16

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner restriction indicator

1шт.

226682A1

SUPPORT

PLATE - mounting, air cleaner (4240 with air cond) (Not shown)

1шт.
