(9-004) - FRONT BOLSTERS, CAST, TWO WHEEL DRIVE TRACTOR

Запчасти Case IH 4240 (9-004) - FRONT BOLSTERS, CAST, TWO WHEEL DRIVE TRACTOR (09) - CHASSIS/ATTACHMENTS

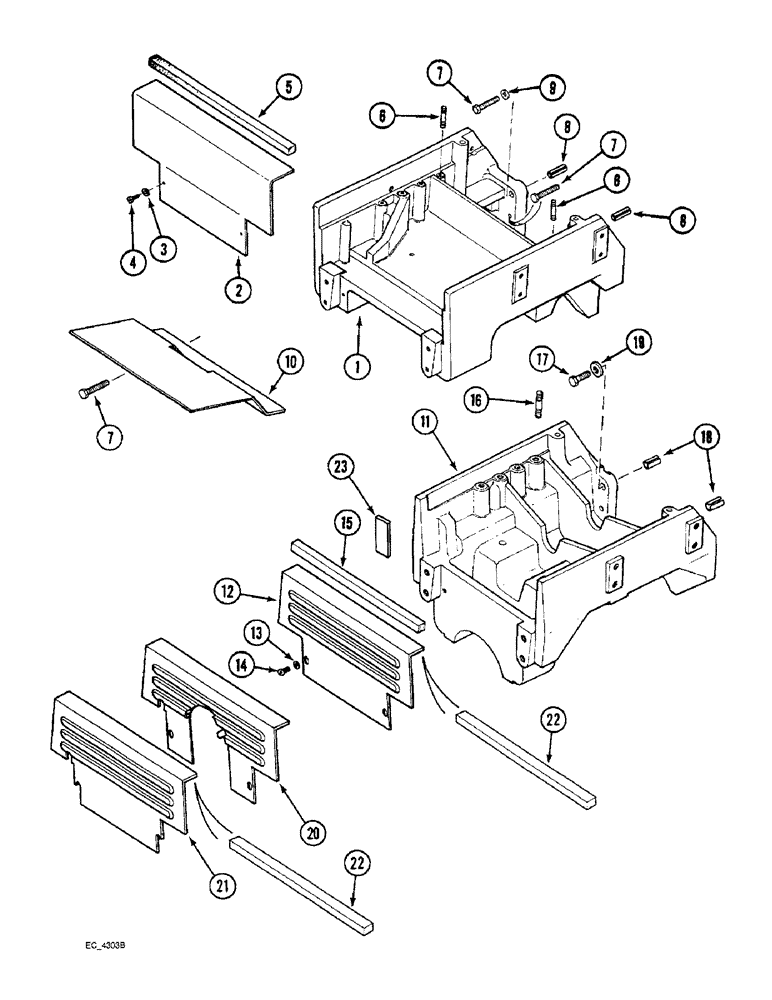

Схема запчастей Case IH 4240 - (9-004) - FRONT BOLSTERS, CAST, TWO WHEEL DRIVE TRACTOR (09) - CHASSIS/ATTACHMENTS
12
4
7
3
22
15
18
7
20
1
9
6
13
16
7
22
8
6
17
11
23
2
14
19
21
5
8
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

94178C4

AXLE SUPPORT

BOLSTER - cast, front (Utility), 2 wheel drive tractor

1шт.

1

138734A1

AXLE SUPPORT

BOLSTER - cast, front, (Row Crop), 2 wheel drive tractor, Serial Range: -JJE0910720

1шт.

1

180509A1

AXLE SUPPORT

BOLSTER - front, (Row Crop), 2 wheel drive tractor, Start Serial: JJE0910720

1шт.

2

187575A2

COVER

- bolster front, Row Crop, 2 wheel drive tractor

1шт.

2

187574A2

COVER

- bolster front, utility, 2 wheel drive tractor

1шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , 2 wheel drive tractor 5/16"

2шт.

4

3118624R1

SCREW

- hex, washer head, 5/16 inch NC, 2 wheel drive tractor

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL - front cover, 20.5 inch (Order 2 x 73212C1, cut to length), 2 wheel drive tractor

1шт.

73212C1

GASKET

SEAL - foam, 1 foot length, 2 wheel drive tractor

1шт.

6

99688C1

STUD

- 3/8 inch NC x 47 mm, 2 wheel drive tractor

2шт.

7

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

2WD tractor Hex, 5/8"-11 x 2 3/4", G8

8шт.

8

838-42116

LOCK PIN,M21 x 16, Slotted

PIN - slotted spring, 21 x 16 mm, 2 wheel drive tractor

2шт.

9

82744C1

WASHER

- hardened, 2 wheel drive tractor

2шт.

10

534811R1

PROTECTION PLATE

BAFFLE - bolster (Adjustable swept back front axle), 2 wheel drive tractor

1шт.

11

94180C5

AXLE SUPPORT

BOLSTER - cast, front, MFD tractor

1шт.

12

187574A2

COVER

- bolster front, utility, MFD tractor

1шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , MFD tractor 5/16"

2шт.

14

3118624R1

SCREW

- hex, washer head, 5/16 inch NC, MFD tractor

2шт.

15

184894A1

SEAL

- front cover, MFD tractor

1шт.

16

99688C1

STUD

- 3/8 inch NC x 47 mm, MFD tractor

2шт.

17

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

MFD tractor Hex, 5/8"-11 x 2 3/4", G8

1шт.

18

838-42116

LOCK PIN,M21 x 16, Slotted

PIN - slotted spring, 21 x 16 mm, MFD tractor

2шт.

19

82744C1

WASHER

- hardened, MFD tractor

1шт.

22

143817A2

SEAL

- front, bolster, MFD tractor

1шт.

23

122315A1

LINING

INSULATOR - front bolster cover, MFD tractor

2шт.
