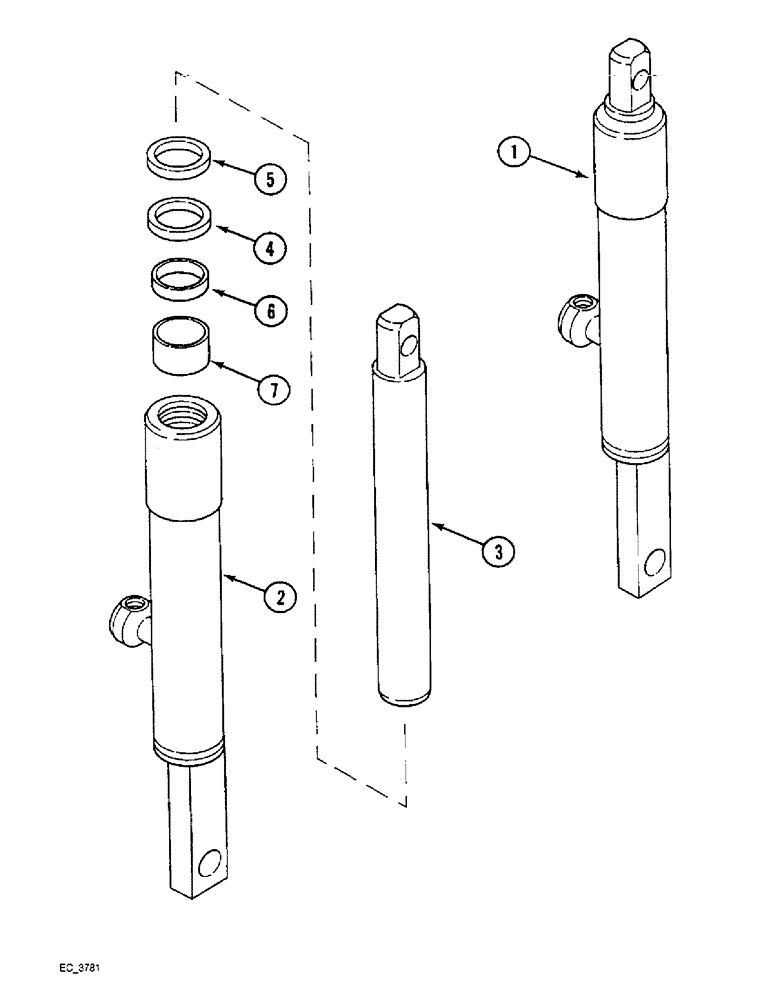

Запчасти Case IH 4240 (8-66) - ASSISTOR RAM (08) - HYDRAULICS

1

3121734R94

CYLINDER ASSY.

CYLINDER ASSEMBLY - assistor, left, Includes: Ref. 2 - 7

1шт.

1

1970987C3

CYLINDER ASSY.

CYLINDER ASSEMBLY - assistor, right, Includes: Ref. 2 - 7

1шт.

2

1971094C2

HYD CYL SLEEVE

CYLINDER - assistor, left

1шт.

2

1971095C2

HYD CYL SLEEVE

CYLINDER - assistor, right

1шт.

3

1971100C1

PISTON ROD

ROD - piston

1шт.

1536096C2

SEAL KIT

KIT - service, Includes: Ref. 4 - 7

1шт.

4

133503A1

SEAL

- main

1шт.

5

1971111C1

WIPER SEAL

- wiper

1шт.

6

1971112C1

GUIDE RING

GUIDE - ring

1шт.

7

1971113C1

GUIDE RING

GUIDE - ring

1шт.
