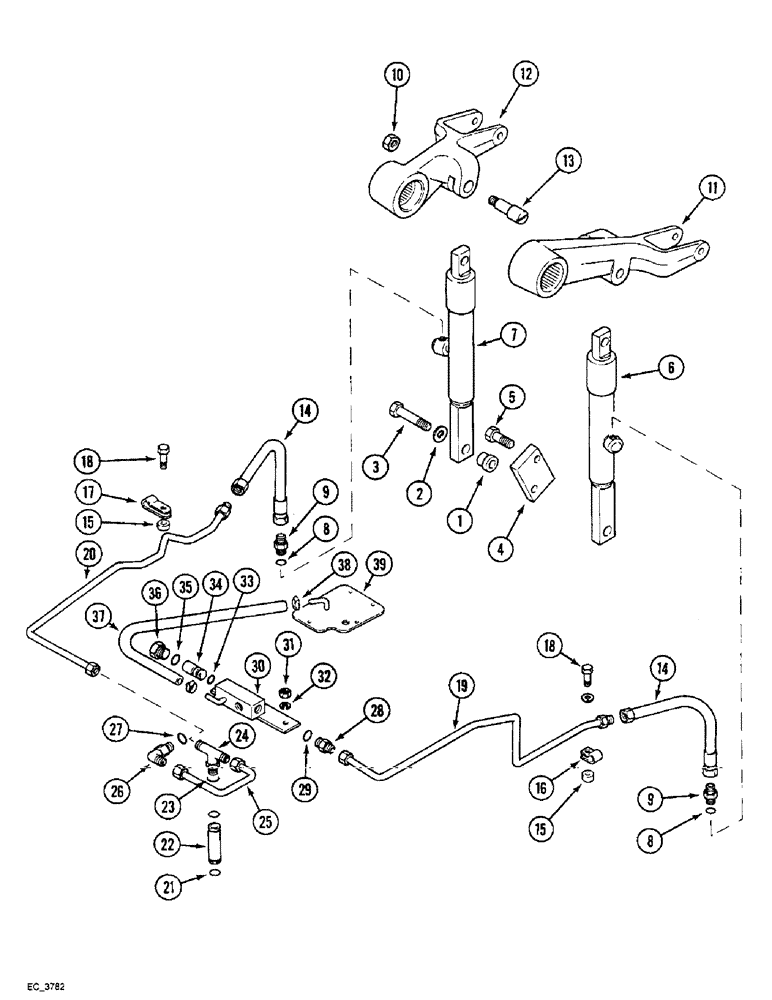

Запчасти Case IH 4240 (8-64) - ASSISTOR RAM AND PIPES TWIN, TRACTOR WITHOUT CAB (08) - HYDRAULICS

1

742964C1

SLEEVE

- cylinder, pivot

2шт.

2

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

2шт.

3

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

4

3129039R1

PLATE

- bracket, (With swinging drawbar)

2шт.

5

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

6

3121734R94

CYLINDER ASSY.

CYLINDER ASSEMBLY - assistor, left (See Figure 8-64)

1шт.

7

1970987C3

CYLINDER ASSY.

CYLINDER ASSEMBLY - assistor, right (See Figure 8-64)

1шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-Ring boss

2шт.

10

425-1010

NUT,5/8"-11, G5

2шт.

11

114422A1

ROCKER ARM

ARM - rockshaft, left

1шт.

12

114423A1

ROCKER ARM

ARM - rockshaft, right

1шт.

13

3121748R1

BOLT,Step, 5/8" - 11 x 2.28"

Shoulder

2шт.

14

3121754R2

HOSE

-, Serial Range: tube-cylinder

2шт.

15

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

- pipe

1шт.

16

3111750R1

CLAMP

- tube, left

1шт.

17

1971089C1

CLAMP

- tube, right

1шт.

18

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

19

1500584C2

HYD TUBE,9.53 mm OD, 475, 65 mm Length

TUBE ASSEMBLY - valve to hose

1шт.

20

1970989C1

HYD TUBE,0.375" OD

TUBE ASSEMBLY - valve to hose, right

1шт.

21

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

2шт.

22

3118053R2

PIPE,9.804 mm ID, 14.287 mm OD, 60.27 mm Length

TUBE ASSEMBLY

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

24

1970986C1

TEE

- reducer

1шт.

25

3121752R2

TUBE ASSY.

TUBE ASSEMBLY - valve feed

1шт.

26

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x Adj O-Ring boss

1шт.

28

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-Ring boss

1шт.

30

3121749R1

BLOCK ASSY.

BLOCK ASSEMBLY - cushion valve

1шт.

31

425-106

NUT,3/8"-16, Cl 5

2шт.

32

492-11038

LOCK WASHER,3/8"

2шт.

33

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

34

400095R92

VALVE, CUSHION

VALVE ASSEMBLY - safety, cushion

1шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

36

536855R1

PLUG

- hex, 3/4 inch NF

1шт.

37

3121755R2

HYDRAULIC HOSE,7.60 mm ID, 8.50 mm ID x 375.00 mm, SAE 100R6 Class 14

HOSE - cushion valve, dump

2шт.

38

3125239R1

COLLAR

CLAMP - hose, worm drive

2шт.

39

99973C1

COVER

- linkage, access

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
