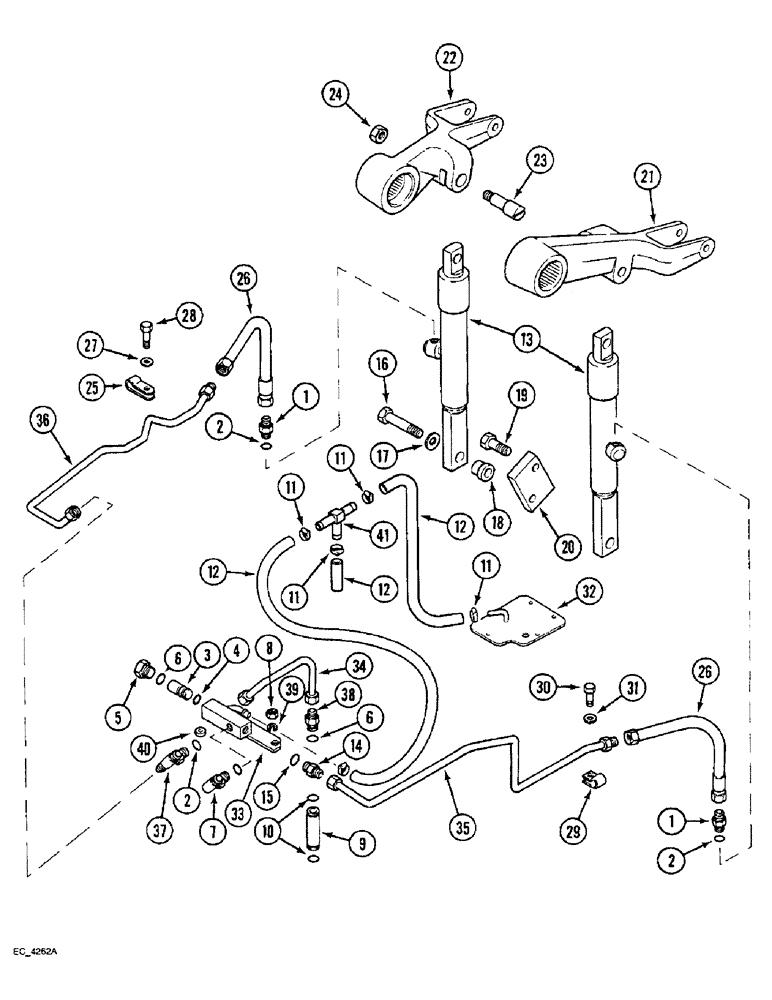

Запчасти Case IH 4240 (8-62) - ASSISTOR RAM AND PIPES, TRACTOR WITH CAB (08) - HYDRAULICS

1

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-Ring boss

2шт.

3

400095R92

VALVE, CUSHION

VALVE ASSEMBLY - safety, cushion

1шт.

4

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

5

536855R1

PLUG

- hex, 3/4 inch NF

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x Adj O-Ring boss

1шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

3118053R2

PIPE,9.804 mm ID, 14.287 mm OD, 60.27 mm Length

TUBE ASSEMBLY

1шт.

10

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

2шт.

11

3125239R1

COLLAR

CLAMP - hose, worm drive

4шт.

12

125149A1

HYDRAULIC HOSE

HOSE -, Serial Range: tee-cover

3шт.

13

1970987C3

CYLINDER ASSY.

CYLINDER ASSEMBLY - assistor, right (See Figure 8-66)

1шт.

13

3121734R94

CYLINDER ASSY.

CYLINDER ASSEMBLY - assistor, left (See Figure 8-66)

1шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-Ring boss

1шт.

16

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

17

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

2шт.

18

742964C1

SLEEVE

- cylinder, pivot

2шт.

19

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

20

3129039R1

PLATE

- bracket, (With swinging drawbar)

2шт.

21

114422A1

ROCKER ARM

ARM - rockshaft, left

1шт.

22

114423A1

ROCKER ARM

ARM - rockshaft, right

1шт.

23

3121748R1

BOLT,Step, 5/8" - 11 x 2.28"

Shoulder

2шт.

24

425-1010

NUT,5/8"-11, G5

2шт.

25

1971089C1

CLAMP

- tube, right

1шт.

26

3121754R2

HOSE

-, Serial Range: tube-cylinder

2шт.

27

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

- pipe

1шт.

28

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

29

384891R11

CLAMP

- power steering tube

1шт.

30

424-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

- machine, pan head Phillips, 1/4 x 3/4 inch

1шт.

31

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

99973C1

COVER

- linkage, access

1шт.

33

125157A1

BLOCK ASSY.

BLOCK ASSEMBLY - cushion valve

1шт.

34

125804A1

HYD TUBE

TUBE ASSEMBLY - speed, valve

1шт.

35

1500429C1

TUBE ASSY.,9.525 mm OD, 475, 124 mm Length

TUBE ASSEMBLY - valve to hose, left

1шт.

36

125805A1

HYD TUBE

TUBE ASSEMBLY - twin assistor ram

1шт.

37

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch Adj O-Ring branch x flare x flare

1шт.

38

1500430C1

UNION

- reducer

1шт.

39

492-11038

LOCK WASHER,3/8"

2шт.

40

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

- pipe

2шт.

41

123949A1

TEE

- beaded, tube

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
