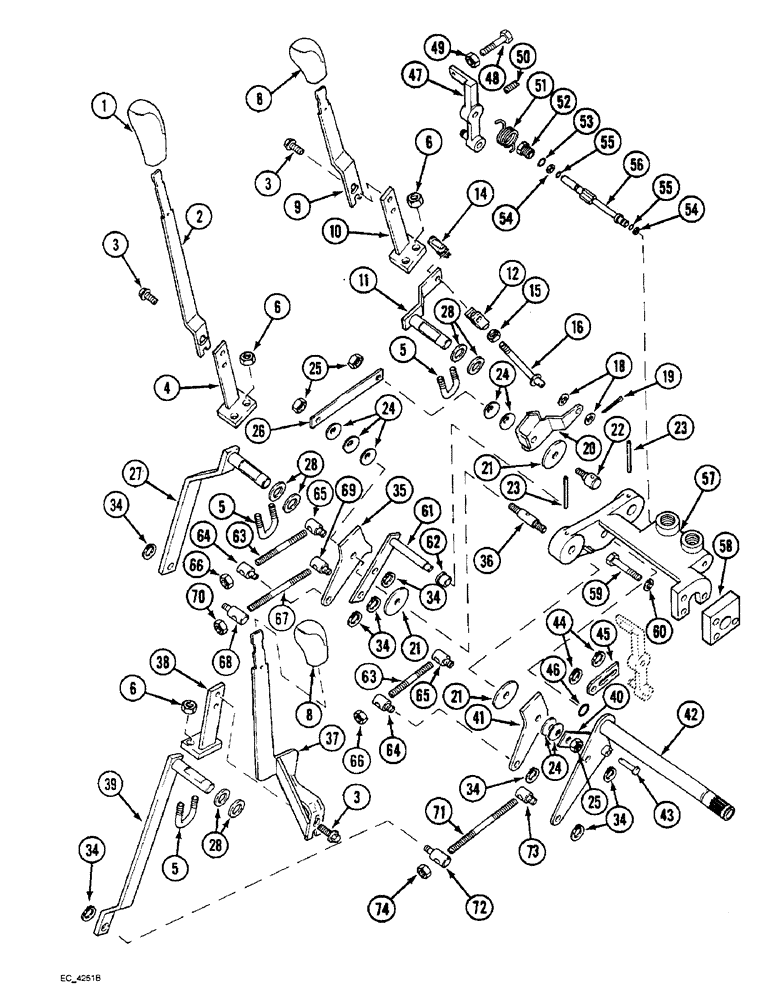

Запчасти Case IH 4240 (8-58) - DRAFT CONTROL, EXTERNAL LEVERS AND LINKAGE, WITH CAB (08) - HYDRAULICS

1

117112A1

BUTTON

KNOB - control

1шт.

2

128229A2

LEVER

- draft control, upper

1шт.

3

905-6012

BOLT,Hex Flg, M6 x 12mm

- hex, flange, 6 mm - 1.00 x 12 mm

6шт.

4

3129764R1

LEVER ASSY.

LEVER - lower, draft control

1шт.

5

3129349R1

U-BOLT,M8 x 1.25 x 36.25mm

BOLT - U-Type, 8 mm

3шт.

6

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm - 1.25, class 10.9

6шт.

8

117114A1

BUTTON

KNOB - response control lever

2шт.

9

128225A1

LEVER

- raise response

1шт.

10

3129764R1

LEVER ASSY.

LEVER - lower, raise reponse

1шт.

11

129262A1

LEVER ASSY.

SHAFT ASSEMBLY - raise response

1шт.

12

713-126

CLEVIS

- 6 mm x 24 mm

1шт.

14

3234936R1

CLEVIS PIN

CLIP - clevis

1шт.

15

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

16

3129769R3

STEM

LINK - connecting, raise response

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

733-1616

COTTER PIN,M1.6 x 16

PIN - cotter, 1.6 x 16 mm

1шт.

20

3129765R1

LEVER

- Bellcrank, raise response

1шт.

21

380421R2

FRICTION WASHER

WASHER - friction, sensitivity control

3шт.

22

527919R1

BOLT

BOLT - Flow lever pivot

1шт.

23

19716R1

PIN,4.75mm OD x 44.45mm L, Coiled

2шт.

24

536847R1

BELLEVILLE WASHER

WASHER - Belleville

7шт.

25

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Hex, self-locking 3/8"-16, GB

3шт.

26

536849R1

PLATE

- outer retaining

1шт.

27

113803A2

LEVER ASSY.

SHAFT ASSEMBLY - pivot

1шт.

28

3129414R1

SPACER

- pivot shaft

1шт.

34

100-1143

SNAP RING,#43, Ext

Ring, Snap, #43, Ext

8шт.

35

129259A1

LEVER

- draft control

1шт.

36

400081R1

BOLT,3/8" - 16 x 72.90mm, HT

- Hitch control lever pivot

1шт.

37

175819A1

LEVER ASSY.

LEVER - position control

1шт.

38

3129764R1

LEVER ASSY.

LEVER - lower, position control

1шт.

39

113802A2

LEVER ASSY.

SHAFT - position control

1шт.

40

537600R1

PLATE

- inner retaining

1шт.

41

3118010R1

LEVER

- position control

1шт.

42

117302A1

LEVER ASSY.

SHAFT ASSEMBLY - position control

1шт.

43

527923R1

PIN

- link arm

1шт.

44

100-3331

SNAP RING,#X31, .243" Dia, E-Type

Ring, Retaining, #X31, .243" Dia, E-Type

2шт.

45

527926R1

LINK

- flow control over-ride

1шт.

46

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

47

529353R2

ARM ASSY.

ARM ASSEMBLY - flow control

1шт.

48

1502037C1

SET SCREW

SCREW - set, 1/4 NC x 1-1/2 inch, hex

1шт.

49

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

1шт.

50

65461C1

SET SCREW

SCREW - 1/4 inch NF, with nylon patch insert

1шт.

51

529352R1

SPRING

- return

1шт.

52

529356R1

PLUG

- variable flow control valve

1шт.

54

529355R1

WASHER

- back-up

2шт.

55

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

2шт.

56

529351R1

SPOOL

- variable flow control valve

1шт.

57

529349R3

SUPPORT

ASSEMBLY - hitch control shaft

1шт.

58

3129761R1

SPACER

- support assembly

1шт.

59

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

3шт.

60

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

61

129260A1

LEVER ASSY.

SHAFT ASSEMBLY - load control

1шт.

62

374940R1

NYLON BEARING

BEARING - control lever shaft

2шт.

63

129303A1

ROD,THREADED

STUD - connecting rod, hitch link

2шт.

64

400086R1

PIN

- connecting, hitch link front

2шт.

65

400087R1

PIN

- connecting, hitch link rear

2шт.

66

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2шт.

67

129303A1

ROD,THREADED

STUD - connecting rod, hitch link

1шт.

68

1500634C1

PIN

- connecting, hitch link front

1шт.

69

400087R1

PIN

- connecting, hitch link rear

1шт.

70

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

71

1500635C1

STUD

- hitch link

1шт.

72

1500634C1

PIN

- connecting, hitch link front

1шт.

73

400087R1

PIN

- connecting, hitch link rear

1шт.

74

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

53

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
