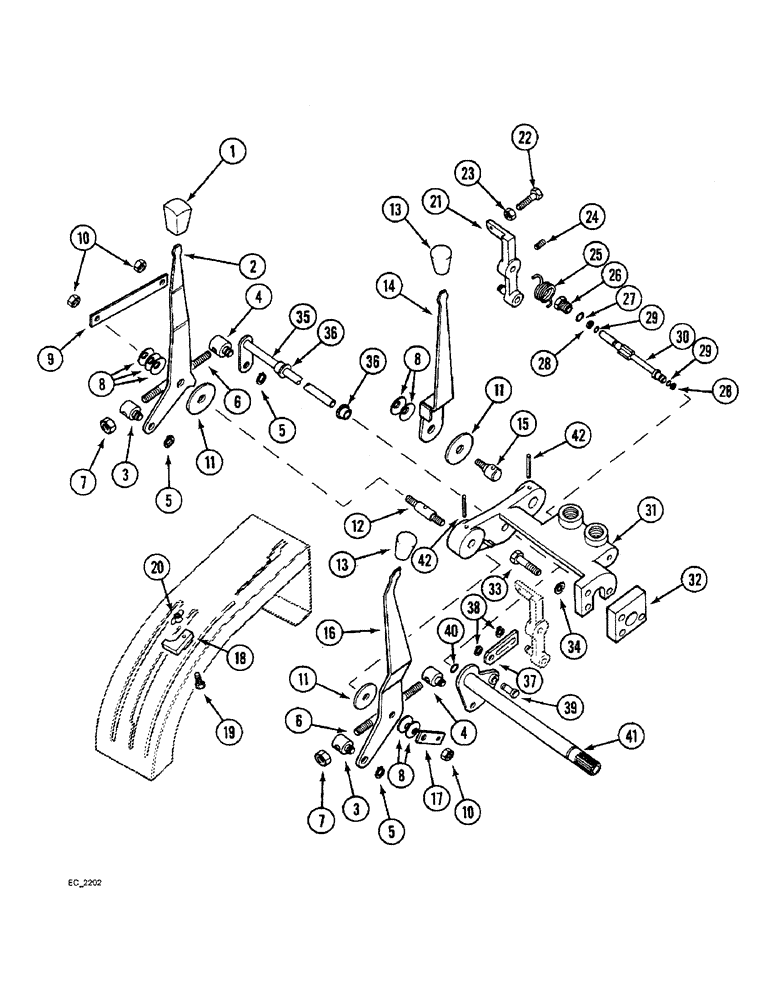

Запчасти Case IH 4240 (8-56) - DRAFT CONTROL, EXTERNAL LEVERS AND LINKAGE, WITHOUT CAB (08) - HYDRAULICS

1

400068R1

BUTTON

GRIP - load control

1шт.

2

94163C1

LEVER ASSY.

LEVER - load control

1шт.

3

400086R1

PIN

- connecting, hitch link front

2шт.

4

400087R1

PIN

- connecting, hitch link rear

2шт.

5

100-1143

SNAP RING,#43, Ext

Ring, Snap, #43, Ext

4шт.

6

129303A1

ROD,THREADED

STUD - connecting rod, hitch link

2шт.

7

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2шт.

8

536847R1

BELLEVILLE WASHER

WASHER - Belleville

7шт.

9

536849R1

PLATE

- outer retaining

1шт.

10

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Hex, self-locking 3/8"-16, GB

3шт.

11

380421R2

FRICTION WASHER

WASHER - friction, sensitivity control

3шт.

12

400081R1

BOLT,3/8" - 16 x 72.90mm, HT

- Hitch control lever pivot

1шт.

13

400072R1

BUTTON

KNOB - position, and speed control

2шт.

14

94165C1

LEVER ASSY.

LEVER ASSEMBLY - flow control adjusting

1шт.

15

527919R1

BOLT

BOLT - Flow lever pivot

1шт.

16

94164C2

LEVER ASSY.

LEVER - position control

1шт.

17

537600R1

PLATE

- inner retaining

1шт.

18

3118646R1

STOP

- position control

1шт.

19

28000R1

BOLT

BOLT - projection weld, 1/4 NC x 3/4 inch

1шт.

20

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

1шт.

21

529353R2

ARM ASSY.

ARM ASSEMBLY - flow control

1шт.

22

1502037C1

SET SCREW

SCREW - set, 1/4 NC x 1-1/2 inch, hex

1шт.

23

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

1шт.

24

65461C1

SET SCREW

SCREW - 1/4 inch NF, with nylon insert

1шт.

25

529352R1

SPRING

- return

1шт.

26

529356R1

PLUG

- variable flow control valve

1шт.

28

529355R1

WASHER

- back-up

2шт.

29

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

2шт.

30

529351R1

SPOOL

- variable flow control valve

1шт.

31

529349R3

SUPPORT

ASSEMBLY - hitch control shaft

1шт.

32

3129761R1

SPACER

- support assembly

1шт.

33

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

3шт.

34

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

35

94168C1

SHAFT

ASSEMBLY - load control

1шт.

36

374940R1

NYLON BEARING

BEARING - control lever shaft

2шт.

37

527926R1

LINK

- flow control over-ride

1шт.

38

100-3331

SNAP RING,#X31, .243" Dia, E-Type

Ring, Retaining, #X31, .243" Dia, E-Type

2шт.

39

527923R1

PIN

- link arm

1шт.

40

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

41

94167C1

SHAFT

ASSEMBLY - position control

1шт.

42

19716R1

PIN,4.75mm OD x 44.45mm L, Coiled

2шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
