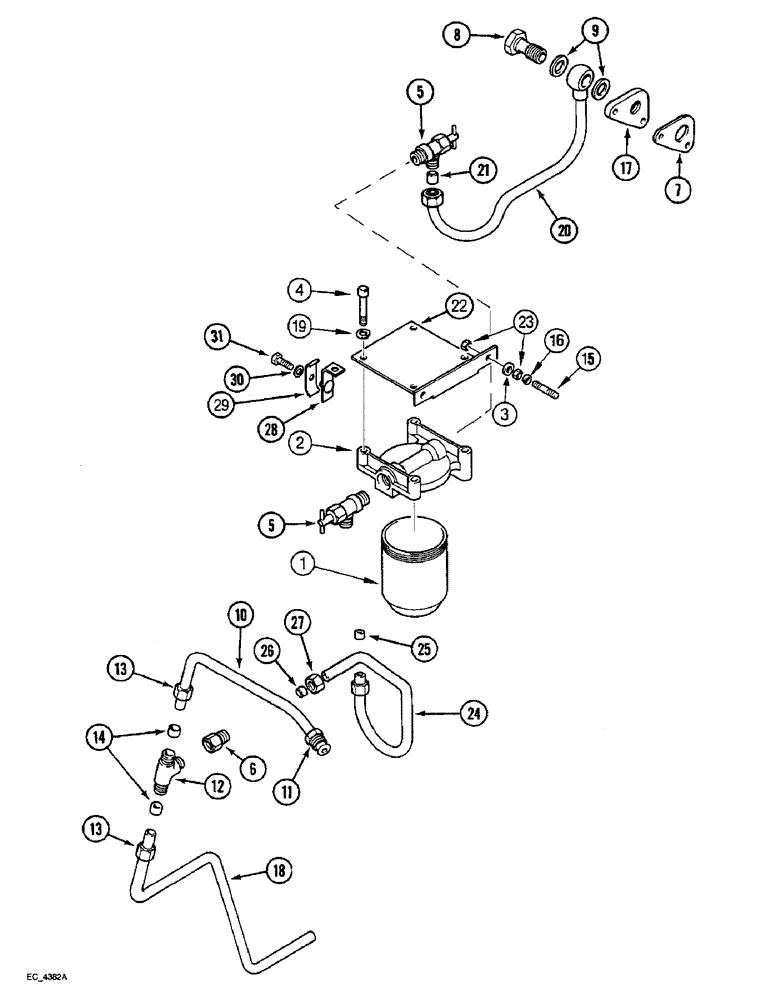

Запчасти Case IH 4240 (2-22) - COOLANT FILTER, MODELS 4230 AND 4240 ONLY (02) - ENGINE

1

A77544

FILTER

- water conditioning, precharge

1шт.

2

A152821

HEAD

- water filter

1шт.

3

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, hardened, 13/32 x 13/16 x 3/32 inch

2шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

5

121894C1

FAUCET,3/8" - 18 NPTF x 5/8" - 24

VALVE - shut-off

2шт.

6

3233208R1

UNION

- adaptor, straight

1шт.

7

3055306R3

GASKET,1.5mm Thk

- manifold, water collecting

1шт.

8

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

SCREW - hollow, 16 mm

1шт.

9

933155R1

SEALING RING,M16 x 20 x 1.5

2шт.

10

1329003C1

PIPE

- water pump carrier to tee union

1шт.

11

222-507

TUBE NUT,7/8"-18

NUT - union, 5/8 inch OD tube

1шт.

12

3401098R1

TEE,M15 Tube

1шт.

13

3143333R1

TUBE NUT,Coupling, M22 x 1.5

NUT - coupling

2шт.

14

3143334R1

OLIVE

SLEEVE - coupling

2шт.

15

3228188R1

STUD

- exhaust manifold

2шт.

16

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

2шт.

17

3218396R2

FLANGE

COVER - closing

1шт.

18

1329004C1

PIPE

- tee union to oil cooler

1шт.

19

492-11038

LOCK WASHER,3/8"

4шт.

20

3228212R93

PIPE

- coolant filter outlet, Includes: Ref. 21

1шт.

21

3228191R1

SEALING WASHER

SLEEVE - coupling

1шт.

22

3228211R1

SUPPORT

BRACKET - coolant filter

1шт.

23

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

4шт.

24

1329005C91

PIPE

- tee, union to coolant filter, Includes: Ref. 25 - 27

1шт.

25

3228191R1

SEALING WASHER

SLEEVE - coupling

1шт.

26

905646R1

RING

SLEEVE - coupling

1шт.

27

3058452R1

TUBE NUT,Coupling, M16 x 1.5

NUT - pipe

1шт.

28

143798A1

SUPPORT

BRACKET - oil cooler pipes (4240)

1шт.

29

99788C1

CLAMP

- tube, oil cooler pipes (4240)

1шт.

30

892-11006

LOCK WASHER,M6

WASHER, LOCK, (4240) M6

1шт.

31

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (4240)

1шт.
