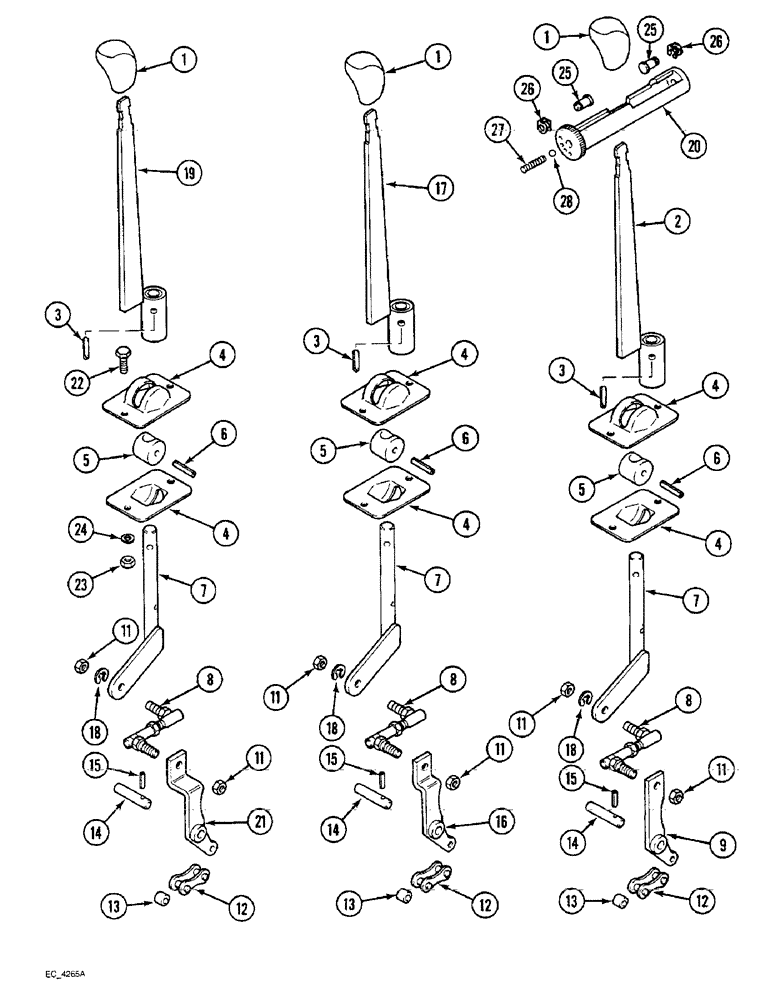

Запчасти Case IH 4240 (8-40) - REMOTE AUXILIARY VALVE CONTROL, 1ST, 2ND AND 3RD BANK, WITH CAB (08) - HYDRAULICS

1

116756A1

BUTTON

KNOB - auxiliary lever control

3шт.

2

140745A2

LEVER ASSY.

LEVER - first bank remote auxiliary valve

1шт.

3

1500163C1

SPLIT PIN/SAFETY PIN

PIN - coiled spring, 5 x 22 mm

1шт.

4

3226334R2

CLAMP

CLAMP - control lever

1шт.

5

3229389R1

BUSHING

PAD - pivot block

1шт.

6

1500163C1

SPLIT PIN/SAFETY PIN

PIN - coiled spring, 5 x 22 mm

1шт.

7

116491A3

LEVER ASSY.

LEVER - remote valves

1шт.

8

137986A1

JOINT

- ball

1шт.

9

116436A1

LEVER

- first auxiliary valve

1шт.

11

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

12

241-1315

LINK, CONNECTING

LINK - connecting, single pitch, No. 50, 5/8 inch pitch

1шт.

13

94274C1

NYLON BEARING,5.15mm ID x 8.04mm OD x 8mm L

BEARING - auxiliary valve spool link

1шт.

14

99609C1

PIN

- straight, 3/8 x 1.45 inch

1шт.

15

38-1816

LOCK PIN,1/8" x 1", Slotted

Pin, 1/8" x 1", Slotted

1шт.

16

116435A1

LEVER

- second auxiliary valve

1шт.

17

140747A2

LEVER ASSY.

LEVER - complete, second bank remote auxiliary valve

1шт.

18

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

19

140749A2

LEVER ASSY.

LEVER - complete, third bank remote auxiliary valve

1шт.

20

1530971C2

LOCK

- remote lever

1шт.

21

116437A1

LEVER

- third bank

1шт.

22

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 6 x 20 mm, class 8

1шт.

23

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

24

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

25

T103011

PIN,6mm OD x 17mm L

- lockout

1шт.

26

3221347R2

CIRCLIP

RING - retaining

1шт.

27

1531484C1

SPRING

- lockout

1шт.

28

511-1060

BALL,6mm Dia

WASHER - slide cup, 6 mm

1шт.
