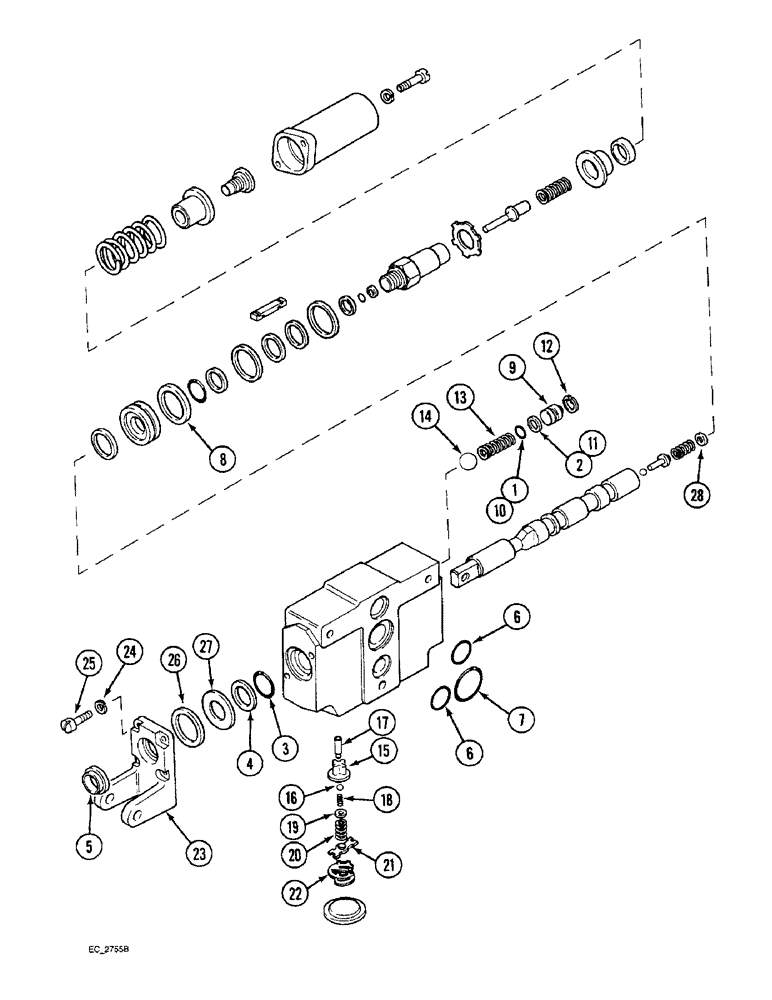

Запчасти Case IH 4240 (8-36) - REMOTR AUXILIARY VALVE ASSEMBLY, WITH ONE OR TWO CHECK VALVES (08) - HYDRAULICS

1287384C91

VALVE

ASSEMBLY - double acting, with one check valve, Includes: Ref. 1 - 22

1шт.

1287385C92

VALVE

ASSEMBLY - double acting, with two check valves, Includes: Ref. 1 - 22

1шт.

1328394C1

SEAL KIT

KIT - service, seals, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

O-RING - 11 ID x 2 mm wide

2шт.

2

NSS

NOT SOLD SEPARAT

RING - back up

2шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 18 ID x 3 mm wide

1шт.

4

NSS

NOT SOLD SEPARAT

RING - back up

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

6

1328382C1

O-RING,2.5mm Thk x 18mm ID

- 18 x 2.5 mm

2шт.

7

1328393C1

O-RING,2.5mm Thk x 26mm ID

- 26 x 2.5 mm

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - flat

1шт.

1958016C1

REPAIR KIT

KIT - service, check valve (Valve 1287384C91), Includes: Ref. 9 - 14

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 11 ID x 2 mm wide

1шт.

11

NSS

NOT SOLD SEPARAT

RING - back up

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

14

NSS

NOT SOLD SEPARAT

BALL - check valve

1шт.

1958017C1

PACKAGE, REPAIR

KIT - repair, check valve (Valve 1287384C91), Includes: Ref. 15 - 22

1шт.

1958017C1

PACKAGE, REPAIR

KIT - repair, check valve (Valve 1287385C91), Includes: Ref. 15 - 22

2шт.

15

NSS

NOT SOLD SEPARAT

CONE - valve

1шт.

16

NSS

NOT SOLD SEPARAT

BALL - check valve

1шт.

17

NSS

NOT SOLD SEPARAT

PIN - adjusting

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

19

NSS

NOT SOLD SEPARAT

SHIM - check valve

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

21

NSS

NOT SOLD SEPARAT

RETAINER - check valve

1шт.

22

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

23

1958026C2

SUPPORT

BRACKET - auxiliary valve (Order also 864-6012)

1шт.

24

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

25

864-6012

HEX SOC SCREW,M6 x 12mm, Cl 8.8

For Support Holes With Recess Hex Soc Hd, M6 x 12, 8.8

1шт.

25

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

SCREW, , For Support Holes Without Recess Hex Soc Hd, M6 x 16, 8.8

1шт.

26

122964A1

WASHER

- main spool

1шт.

27

122963A1

BACK-UP RING

DISC - support

1шт.

28

1328389C1

SHIM

- 0.3 mm thick

1шт.

28

1328390C1

SHIM

- 0.4 mm thick

1шт.

28

1328388C1

SHIM

- 0.5 mm thick

1шт.

28

1328391C1

SHIM KIT

SHIM - 0.8 mm thick

1шт.

IF YOU FOLLOW DOWN PARTS SHOWN (SHIM, SPRING AND POPPET) THERE IS STEEL BALL SHOWN (4 mm) PART IS 511-1040

1шт.
