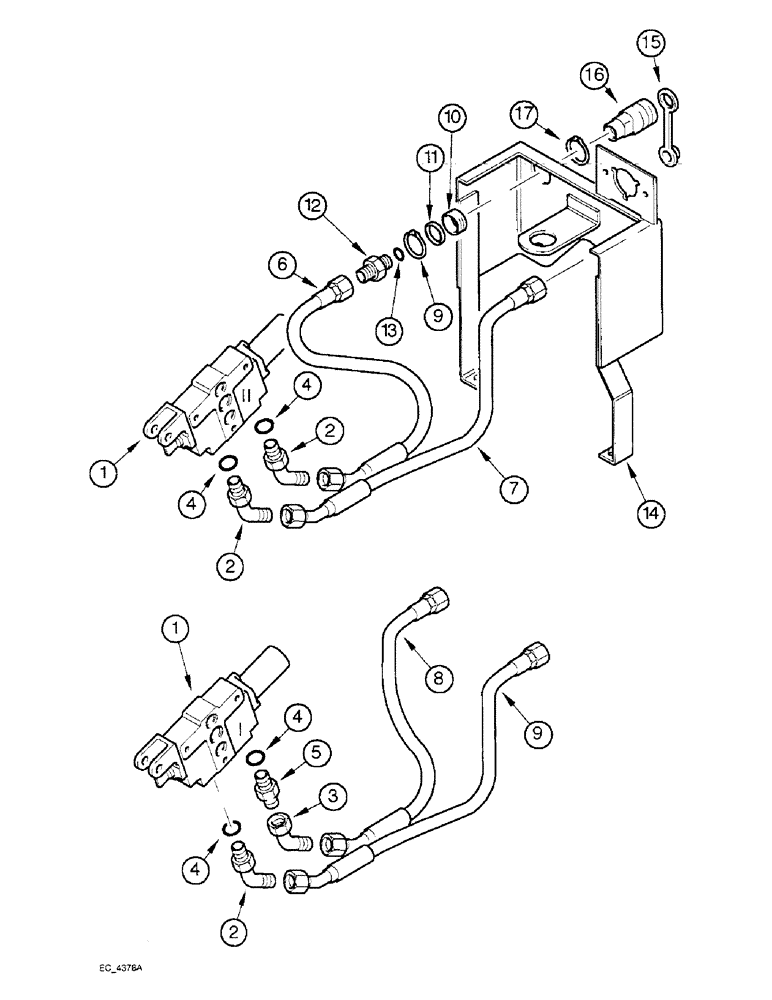

Запчасти Case IH 4240 (8-32) - REMOTE AUXILIARY VALVES, 1ST, 2ND AND 3RD BANK TUBES AND COUPLINGS, WITH CAB, AND BREAK-AWAY (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - double acting, without check valve (Used for 1st, 2nd or 3rd bank position) (See Figure 8-56)

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY - double acting, with one check valve (Used for 1st, 2nd or 3rd bank position) (See Figure 8-36)

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY - double acting, with two check valves (Used for 1st, 2nd or 3rd bank position) (See Figure 8-36)

1шт.

2

93636C1

ELBOW

- 45 degree, 7/8 inch NF flare x 22 mm - 1.5

1шт.

3

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

86165C1

FITTING

UNION - straight

1шт.

6

177187A1

HOSE

ASSEMBLY - remote valves to coupling, 3rd bank right

1шт.

6

177185A1

HOSE

ASSEMBLY - remote valves to coupling, 2nd bank right

1шт.

7

177186A1

HOSE

ASSEMBLY - remote valves to coupling, 3rd bank left

1шт.

7

177184A1

HOSE

ASSEMBLY - remote valves to coupling, 2nd bank left

1шт.

8

177183A1

HOSE

ASSEMBLY - remote valves to coupling, 1st bank right

1шт.

8

177182A1

HOSE

ASSEMBLY - remote valves to coupling, 1st bank left

1шт.

10

A139805

RETAINER

- coupling, breakaway

1шт.

11

178400A1

SPACER

- coupling, breakaway

1шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-Ring boss, breakaway, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Breakaway

1шт.

14

125845A1

SUPPORT ASSY.

SUPPORT - couplings, breakaway

1шт.

128362A1

DECAL

- auxiliary couplings, Ports 1, 2, 3 (Not shown), breakaway

1шт.

15

A137135

PLUG

- dust protective, coupling, breakaway

1шт.

16

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway, self-sealing, breakaway

1шт.

17

104-11150

SNAP RING,#150, 1.408", Ext

RING - snap, breakaway

1шт.
