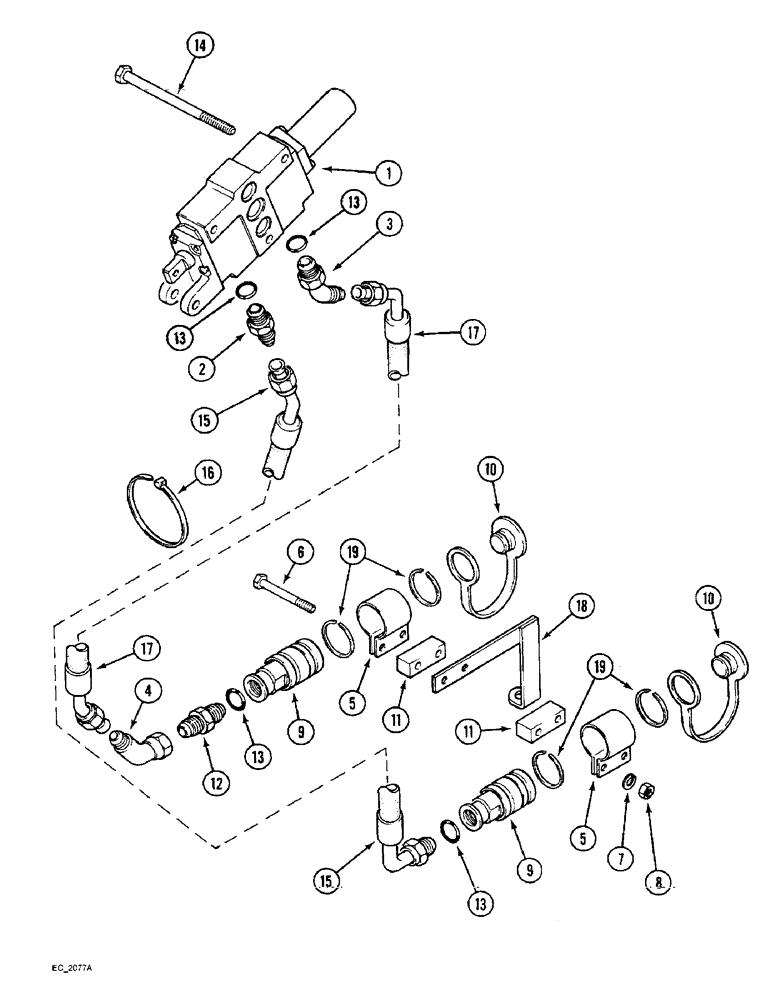

Запчасти Case IH 4240 (8-30) - REMOTE AUXILIARY VALVES, 3RD BANK TUBES AND COUPLINGS, WITHOUT CAB (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - double acting, without check valve (See Figure 8-34)

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY - double acting, with check valve (See Figure 8-36)

1шт.

2

86165C1

FITTING

UNION - straight

1шт.

3

93636C1

ELBOW

- 45 degree, 7/8 inch NF flare x 22 mm - 1.5

1шт.

4

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

- 45 degree, 7/8-14 inch flare x swivel

1шт.

5

3114106R2

CLAMP,38.1mm

- coupling

2шт.

6

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

2шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

9

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway

2шт.

10

373220R1

PLUG

- dust, breakaway coupling

2шт.

11

3129557R1

SPACER

- coupling

2шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

815-8160

BOLT,Hex, M8 x 1.25 x 160mm, Cl 8.8

- hex, 8 - 1.25 x 160 mm

3шт.

15

128859A1

HOSE

ASSEMBLY - front outlet, 3rd bank

1шт.

16

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

1шт.

17

128858A1

HOSE

ASSEMBLY - rear outlet, 3rd bank

1шт.

18

1956705C1

PLATE

ASSEMBLY - coupling

1шт.

19

104-11150

SNAP RING,#150, 1.408", Ext

RING - snap, retaining

2шт.
