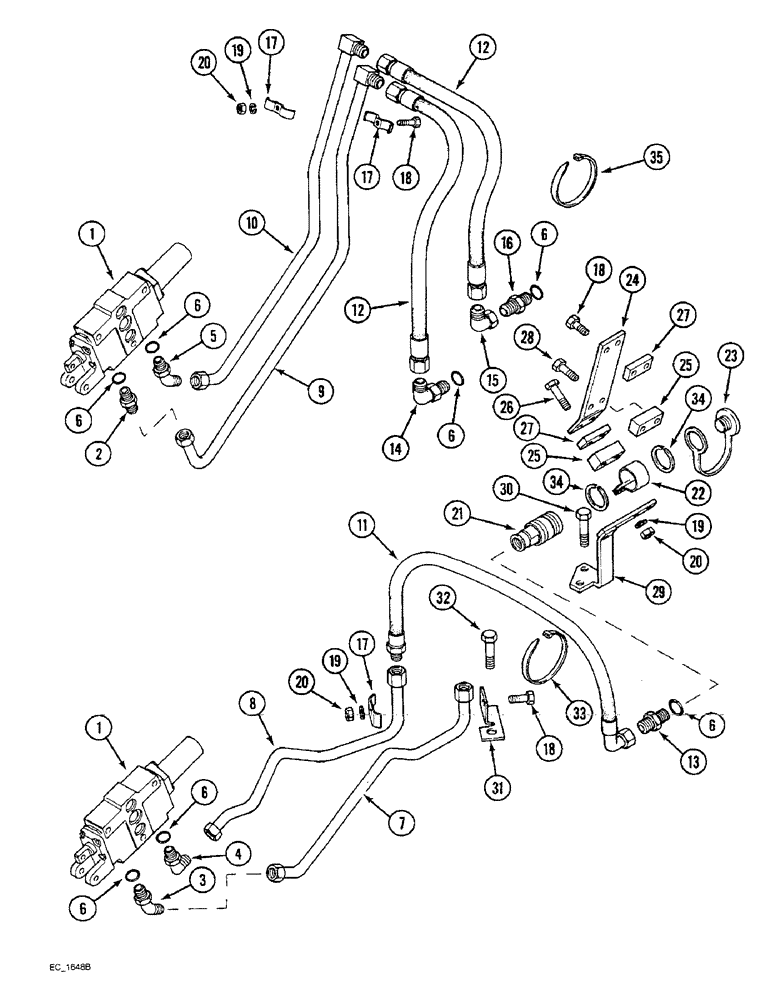

Запчасти Case IH 4240 (8-28) - REMOTE AUXILIARY VALVES, 1ST AND 2ND BANK TUBES AND COUPLINGS, WITHOUT CAB (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - double acting, without check valve (Used for 1st or 2nd bank position) (See Figure 8-34)

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY - double acting, with one check valve (Used for 1st or 2nd bank position) (See Figure 8-36)

1шт.

2

86165C1

FITTING

UNION - straight

1шт.

3

93636C1

ELBOW

- 45 degree, 7/8 inch NF flare x 22 mm - 1.5 (1st bank)

1шт.

4

86703C1

ELBOW

- 90 degree, 7/8 inch NF flare x 22 mm - 1.5 (1st bank)

1шт.

5

93636C1

ELBOW

- 45 degree, 7/8 inch NF flare x 22 mm - 1.5 (2nd bank)

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

99649C1

TUBE ASSY.

TUBE ASSEMBLY - lower, 1st bank front outlet

1шт.

8

99648C1

TUBE ASSY.

TUBE ASSEMBLY - raise, 1st bank rear outlet

1шт.

9

1536573C1

HYD TUBE,0.625" OD, 595, 340 mm Length

TUBE ASSEMBLY - raise, 2nd bank front outlet

1шт.

10

1536572C1

HYD TUBE,0.625" OD, 386, 510 mm Length

TUBE ASSEMBLY - lower, 2nd bank rear outlet

1шт.

11

128857A1

HOSE,12.7mm ID x 689mm L

ASSEMBLY - 1st bank, outlet, Serial Range: tube-coupling

2шт.

12

128860A1

HOSE

ASSEMBLY - 2nd bank, outlet, Serial Range: tube-coupling

2шт.

13

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, 1st bank 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

14

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x Adj O-Ring boss, 2nd bank

1шт.

15

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel, 2nd bank

1шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-Ring boss, 2nd bank

2шт.

17

535301R1

CLAMP

- tube, rear outlet tube

1шт.

18

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

21

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway

1шт.

22

3114106R2

CLAMP,38.1mm

- coupling

1шт.

23

373220R1

PLUG

- dust, breakaway coupling

1шт.

24

3129558R1

PLATE

- coupling (2nd bank)

1шт.

25

3129557R1

SPACER

- coupling (2nd bank)

1шт.

26

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch (2 bank fit)

2шт.

26

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (1st bank only fit)

2шт.

27

1500503C1

SPACER

- coupling (2nd bank)

1шт.

28

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch (2nd bank)

2шт.

29

535298R1

SUPPORT

BRACKET ASSEMBLY - mounting, rear manifold (1st bank)

1шт.

30

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1st bank Hex, 1/2"-13 x 2 1/4", G5

2шт.

31

535300R1

BRACKET

- rear outlet tubes (1st bank)

1шт.

32

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1st bank Hex, 1/2"-13 x 2", G5

1шт.

33

306132C1

CABLE TIE,14.5" L

STRAP - tie, cable, 4.0 inch max bundle (1st bank)

1шт.

34

104-11150

SNAP RING,#150, 1.408", Ext

RING - snap, retaining

1шт.

35

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie, 8 inch long (2nd bank)

1шт.
