Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION

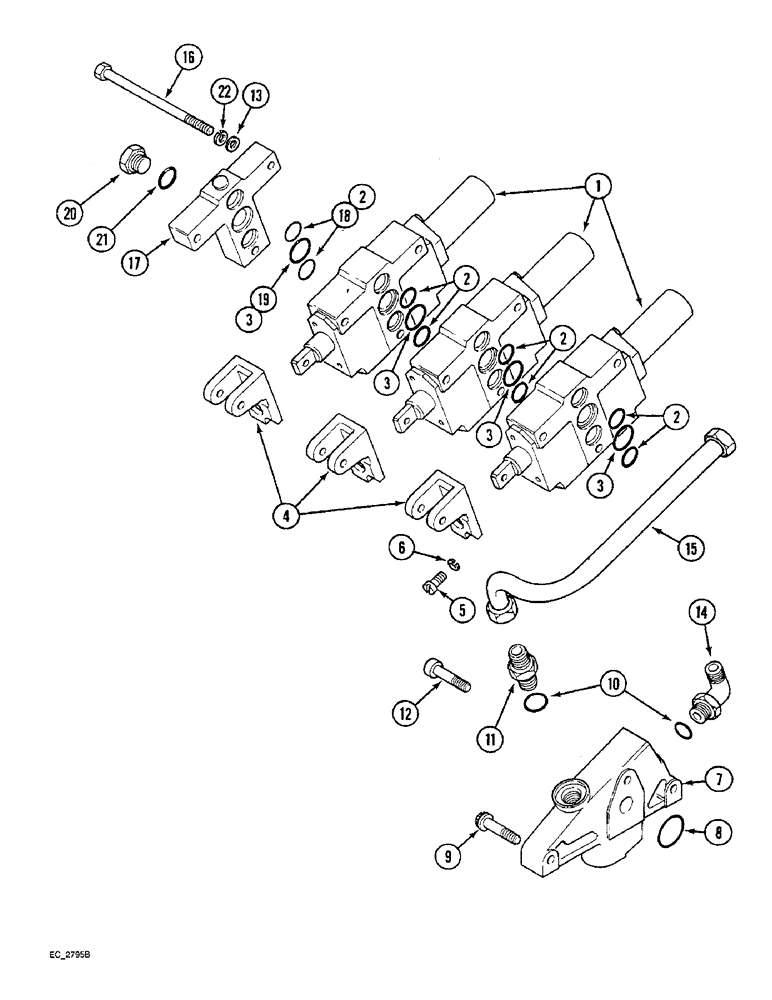

VALVE ASSEMBLY - double acting, without check valve (Used for 1st, 2nd, or 3rd bank position) (See Figure 8-34), Includes: Ref. 2 and 3
1шт.
1
REF
INSTRUCTION
VALVE ASSEMBLY - double acting, with one check valve (Used for 1st, 2nd, or 3rd bank position) (See Figure 8-36), Includes: Ref. 2 and 3
1шт.
2
1328382C1
O-RING,2.5mm Thk x 18mm ID
- 18 x 2.5 mm
2шт.
3
1328393C1
O-RING,2.5mm Thk x 26mm ID
- 26 x 2.5 mm
1шт.
4
1958026C2
SUPPORT
BRACKET - auxiliary valve
1шт.
5
864-6012
HEX SOC SCREW,M6 x 12mm, Cl 8.8
For Support Holes With Recess Hex Soc Hd, M6 x 12, 8.8
1шт.
5
864-6016
HEX SOC SCREW,M6 x 16mm, Cl 8.8
SCREW, , For Support Holes Without Recess Hex Soc Hd, M6 x 16, 8.8
1шт.
6
892-11006
LOCK WASHER,M6
WASHER, LOCK, M6
1шт.
7
94070C1
PLATE
BLOCK - control valve transfer
1шт.
THIS IS A BOSCH VALVE AND POWER BEYOND IS ALREADY BUILT INTO THIS CONTROL VALVE TRANSFER BLOCK.
1шт.
8
238-5124
O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro
1шт.
9
326-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8
- hex, 3/8 NC x 1-3/4 inch, grade 8
2шт.
10
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
2шт.
11
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
ADAPTER - straight, 7/8-14 inch flare x O-Ring boss
1шт.
12
61-33828
HEX SOC SCREW,3/8"-16 x 1 3/4"
BOLT - hex socket, 3/8 NC x 1-3/4 inch
1шт.
13
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
- flat, 9 x 17 x 1.6 mm
3шт.
14
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 90 degree, 7/8-14 inch flare x Adj O-Ring boss
1шт.
15
99530C1
PIPE ASSY.
TUBE ASSEMBLY - auxiliary valve return
1шт.
16
815-8080
BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8
- hex, 8 - 1.25 x 80 mm (1 valve fit)
3шт.
16
814-8120
BOLT,Hex, M8 x 1.25 x 120mm, Cl 8.8
- hex, 8 - 1.25 x 120 mm (2 valve fit)
3шт.
16
815-8160
BOLT,Hex, M8 x 1.25 x 160mm, Cl 8.8
- hex, 8 - 1.25 x 160 mm (3 valve fit)
3шт.
1971164C1
COVER ASSY
COVER ASSEMBLY - end, Includes: Ref. 17 - 21
1шт.
17
1971165C1
COVER
- end
1шт.
89464C92
COVER
- valve end, Includes: Ref. 18 and 19
1шт.
18
1328382C1
O-RING,2.5mm Thk x 18mm ID
- 18 x 2.5 mm
2шт.
19
1328393C1
O-RING,2.5mm Thk x 26mm ID
- 26 x 2.5 mm
1шт.
20
1971184C1
PLUG
- end cover
1шт.
21
1971185C1
O-RING,13.3mm ID x 2.4mm Width
- 13.3 ID x 2.4 mm wide
1шт.
22
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
3шт.
Выбрано товаров: 29
