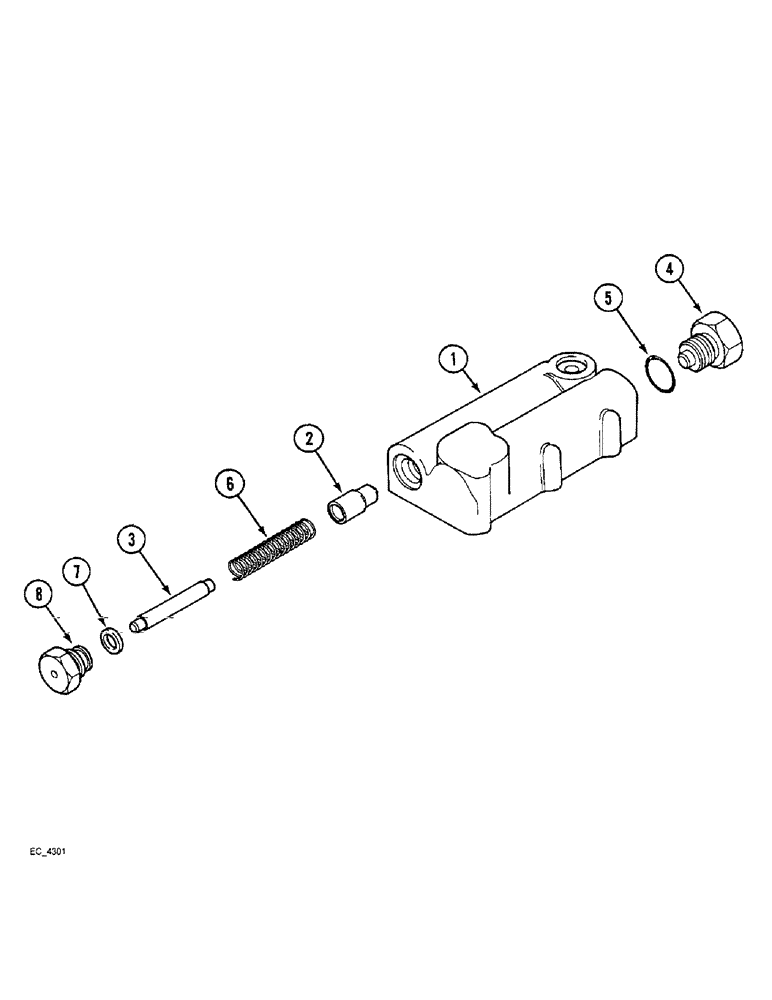

Запчасти Case IH 4240 (8-22) - REGULATOR VALVE ASSEMBLY, FORWARD AND REVERSE (08) - HYDRAULICS

110312A2

VALVE

- regulator, forward and reverse, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - regulator valve (Order valve assembly 110312A2)

1шт.

2

399882R1

POPPET

- poppet, pressure regulator

1шт.

3

399881R2

PIN

- pressure regulator valve

1шт.

4

86398C2

PLUG

- pressure regulator valve

1шт.

6

88426C1

SPRING

- pressure regulator valve

1шт.

7

275288A1

SHIM

1шт.

8

1954070C1

PLUG

- regulator valve

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
