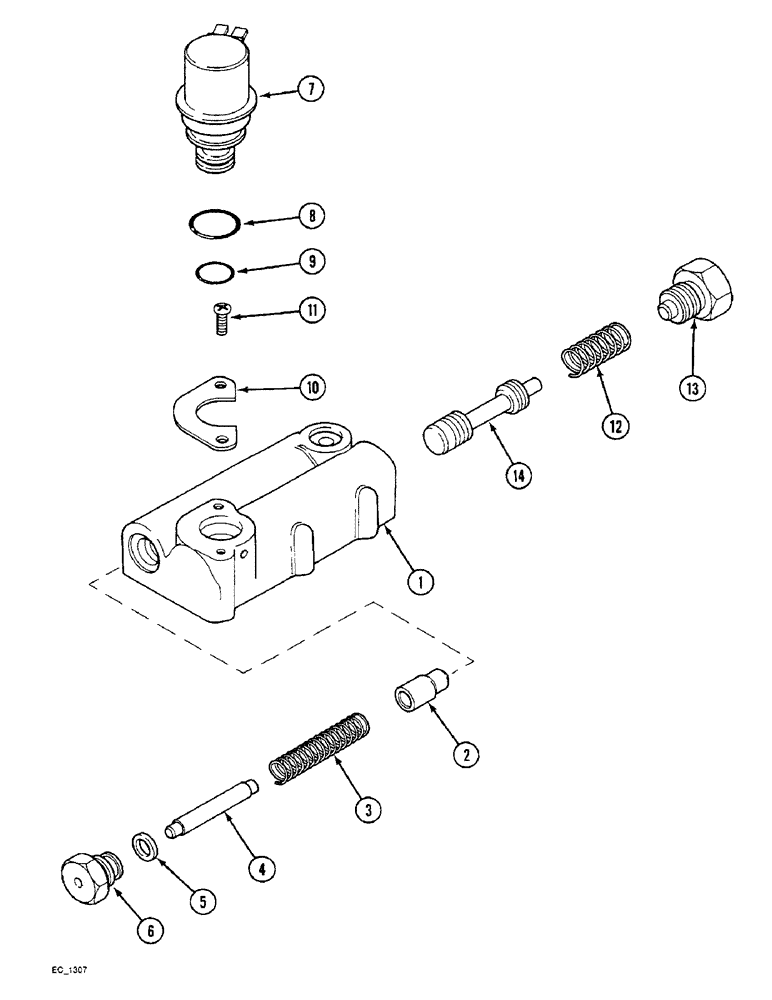

Запчасти Case IH 4240 (8-20) - REGULATOR VALVE ASSEMBLY, TWO SPEED POWER SHIFT (08) - HYDRAULICS

110313A3

PILOT VALVE

VALVE - regulator, power shift, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - regulator valve (Order valve assembly 110313A3)

1шт.

2

399882R1

POPPET

- poppet, pressure regulator

1шт.

3

88426C1

SPRING

- pressure regulator valve

1шт.

4

399881R2

PIN

- pressure regulator valve

1шт.

5

275288A1

SHIM

1шт.

6

1954070C1

PLUG

- regulator valve

1шт.

7

1958120C1

SOLENOID VALVE

VALVE - solenoid, Includes: Ref. 8 and 9

1шт.

8

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

9

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

1шт.

10

1289695C1

COLLAR

CLAMP - solenoid valve

1шт.

11

940-148

SCREW,Pan Cross Recess, M4 x 8mm, Cl 4.8

- pan head cross recessed, 4 x 8 mm

2шт.

12

1289693C3

SPRING

- compression

1шт.

13

1954069C1

PLUG

- regulator valve

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - regulator valve (Order valve assembly 110313A3)

1шт.
