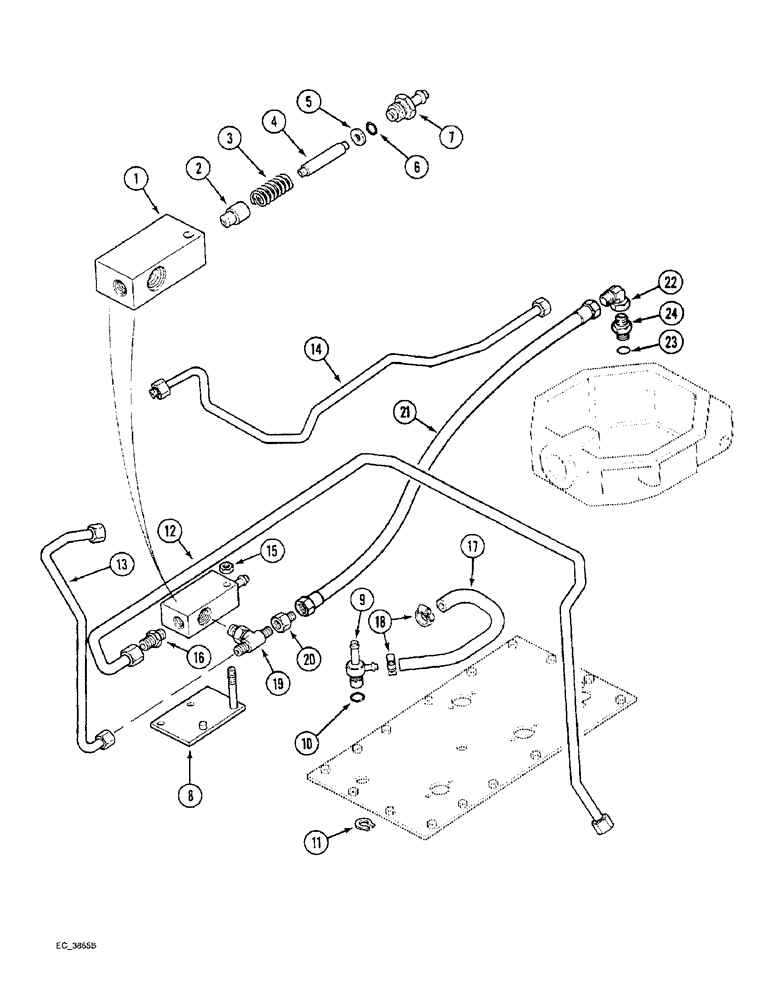

Запчасти Case IH 4240 (8-16) - REGULATOR VALVE AND CONNECTIONS, CREEP, WITHOUT CAB (08) - HYDRAULICS

1343334C2

VALVE

- regulator, Includes: Ref. 1 - 7

1шт.

1

1343333C1

VALVE BODY

BODY ASSEMBLY - regulator valve

1шт.

2

399882R1

POPPET

- poppet, regulator

1шт.

3

88426C1

SPRING

- pressure regulator valve

1шт.

4

399881R2

PIN

- pressure regulator valve

1шт.

5

275288A1

SHIM

- spring retainer

1шт.

7

1343336C1

PLUG

- regulator valve

1шт.

8

1343335C1

LARGE PLATE

PLATE ASSEMBLY - valve mounting

1шт.

9

1343344C1

PIPE

TUBE ASSEMBLY - brake dump

1шт.

10

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

11

100-1168

SNAP RING,#68, Ext

Ring, Snap, #68, Ext

1шт.

12

1343337C1

HYD TUBE,0.5" OD, 473, 398 mm Length

TUBE ASSEMBLY - power steering return

1шт.

13

1343339C2

PIPE,0.5" OD, 401, 68 mm Length

TUBE ASSEMBLY - power steering return

1шт.

14

127283A1

HYD TUBE

TUBE ASSEMBLY - oil cooler return, rear

1шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.

16

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, 3/4-16 inch flare

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - valve bleed 250 mm, (Order 427683C1 and, Serial Range: cut-length)

1шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

- bulk, 1/4 inch ID x 1 foot

1шт.

18

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

2шт.

19

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch Adj O-Ring branch x flare x flare

1шт.

20

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

ADAPTER - reducing, 1/2 tube OD x 9/16-18 inch flare

1шт.

21

124612A2

HYDRAULIC HOSE

HOSE ASSEMBLY - drop box

1шт.

22

218-5229

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

- 90 degree

1шт.

23

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

- 13/32 ID x 5/64 inch

1шт.

24

123627A1

FITTING

CONNECTOR -, Serial Range: elbow-dropbox

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
