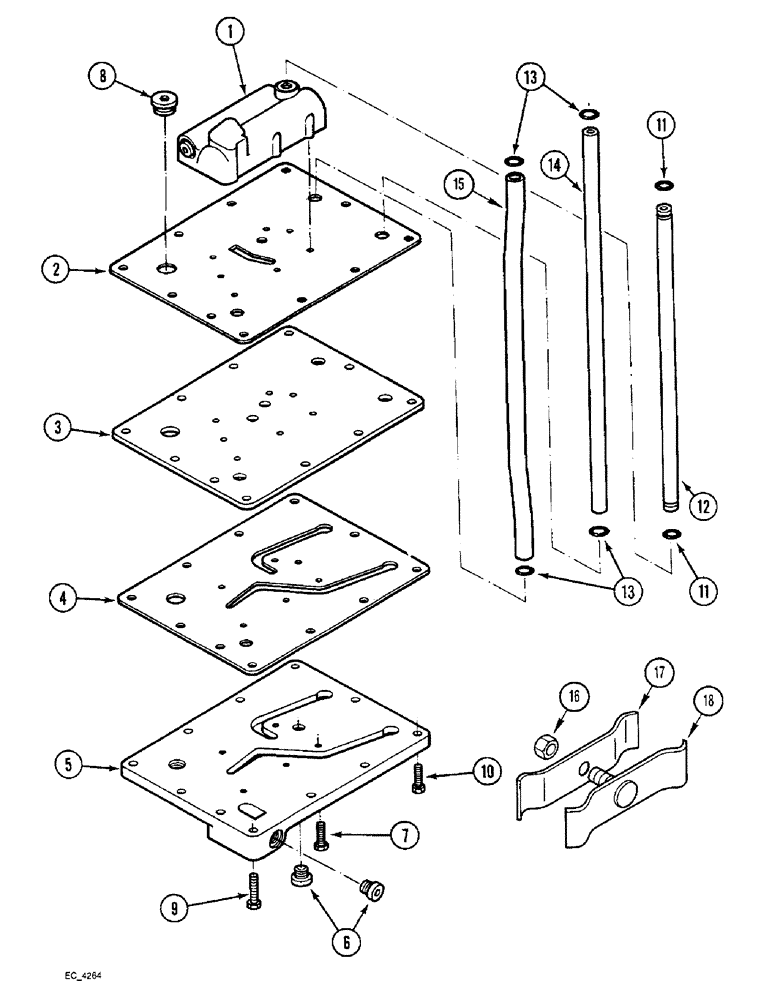

Запчасти Case IH 4240 (8-14) - REGULATOR VALVE MOUNTING PLATE, FORWARD AND REVERSE (08) - HYDRAULICS

1

110312A2

VALVE

- regulator, forward and reverse (See Figure 8-22)

1шт.

2

83009C3

GASKET

- separator plate

1шт.

3

83010C3

LARGE PLATE

PLATE - separator

1шт.

4

110316A1

GASKET

- core plate

1шт.

5

110317A1

PLATE

- core (With pressure regulator valve)

1шт.

6

86258C1

PLUG,M12 x 1.5

- 12 mm - 1.75

2шт.

7

615-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 30 mm

5шт.

8

87953C1

PLUG

- 22 mm - 2.50

1шт.

9

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

9шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

12

83401C1

PIPE

TUBE - oil inlet

1шт.

13

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.

14

402545R1

PRESSURE PIPE

TUBE - pump pressure

2шт.

15

115976A1

PIPE,12 mm OD, 370.25 mm Length

TUBE - pump pressure

1шт.

16

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

17

118974A1

SHIN

CLAMP - tube

1шт.

18

119218A2

SHIN

CLAMP ASSEMBLY - tube

1шт.
