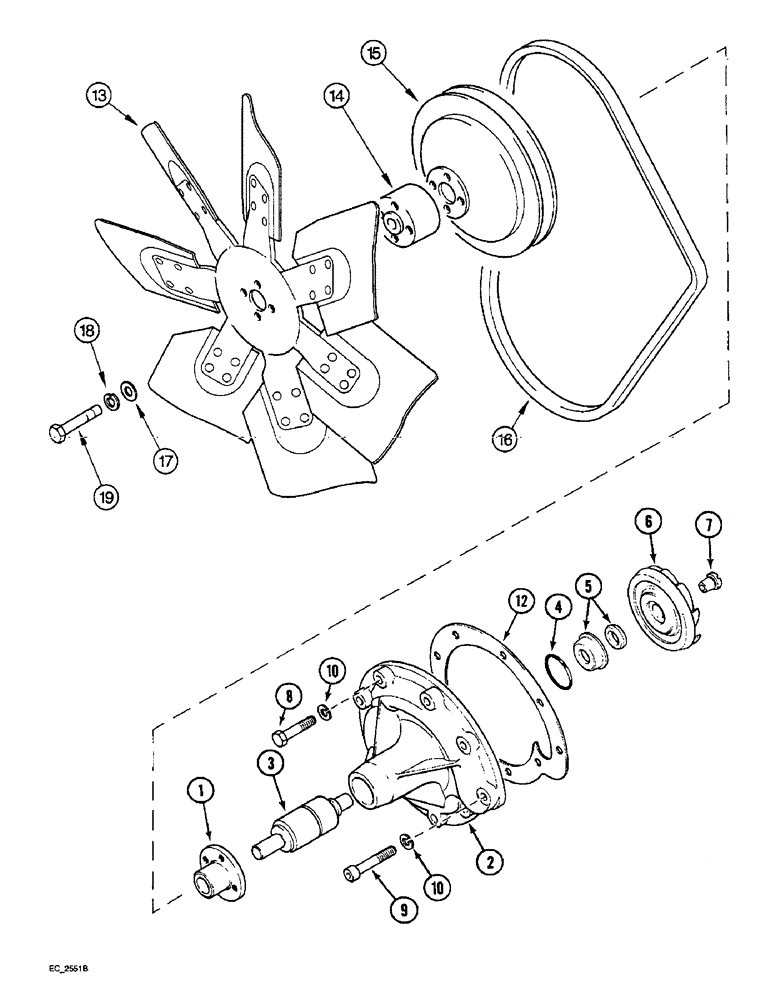

Запчасти Case IH 4240 (2-16) - WATER PUMP AND FAN (02) - ENGINE

3136053R92

PUMP, WATER

PUMP ASSEMBLY - water (4210), Includes: Ref. 1 - 7

1шт.

3136053R92GV

WATER PUMP

Value, Water Pump Assy.

1шт.

735102C91

REMAN-WATER PUMP

PUMP ASSEMBLY - water (4210), Includes: Ref. 1 - 7

1шт.

1928123C1

CORE-WATER PUMP

RETURN NUMBER - water pump (Use this part number to return water pump core for credit) (4210), Includes: Ref. 1 - 7

1шт.

3132739R93

PUMP, WATER

PUMP ASSEMBLY - water (4230/40), Includes: Ref. 1 - 7

1шт.

3132739R92GV

WATER PUMP

Value, Pump Assy.

1шт.

735099C91

REMAN-WATER PUMP

PUMP ASSEMBLY - water, remanufactured (4230/40), Includes: Ref. 1 - 7

1шт.

1928119C1

CORE-WATER PUMP

RETURN NUMBER - water pump (Use this part number to return water pump core for credit) (4230/40), Includes: Ref. 1 - 7

1шт.

1

3132146R1

HUB

- pulley

1шт.

2

3132677R41

BODY

- pump, Includes: Ref. 3

1шт.

3

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

- pump

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - water pump (Order kit 3055285R94)

1шт.

Part of reconditioning gasket Kit P/N 3055285R94

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - complete with sealing ring (Order kit 3055285R94)

1шт.

Part of reconditioning gasket Kit P/N 3055285R94

1шт.

6

787579R2

IMPELLER

- pump (4230/40)

1шт.

6

3055211R2

IMPELLER

- pump (4210)

1шт.

7

3055308R1

PLUG

- closing

1шт.

8

26-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

- hex, 5/16 NC x 1-1/2 inch, grade 8

1шт.

9

61-33122

HEX SOC SCREW,5/16"-18 x 1 3/8"

SCREW - cap, hex socket, 5/16 NC x 1-3/8 inch

1шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

3055177R3

GASKET

- water pump

1шт.

Part of reconditioning gasket Kit P/N 3055285R94

1шт.

3055285R94

GASKET KIT

KIT - reconditioning (Includes: Ref. 4, 5 and 12)

1шт.

13

136845A1

FAN

- engine cooling, without air conditioning

1шт.

14

137276A1

SPACER

- pulley, fan without air conditioning, Serial Range: -JJE0910719

1шт.

14

181750A1

SPACER

- pulley, fan without air conditioning, Start Serial: JJE0910720

1шт.

15

401124R2

PULLEY

- water pump, fan without air conditioning

1шт.

16

3129140R1

V-BELT,13.70 mm W

Fan, without air conditioning 13.70 mm W

1шт.

16

1537104C1

V-BELT,12.70 mm W x 1600.00 mm L

Fan, 4240 Without Cab, Air Conditioning 12.70 mm W x 1600.00 mm L

1шт.

17

496-11028

WASHER,9/32" x 5/8" x .065, HDN

- flat, hardened, 9/32 x 5/8 x 1/16 inch, fan without air conditioning

1шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Fan without air conditioning 1/4"

1шт.

19

14-452

BOLT,Hex, 1/4" - 28 x 3-1/4", Gr 5

- hex, 1/4 x 3/4 inch (4240), fan without air conditioning, Serial Range: -JJE0910719

1шт.

19

414-456

BOLT,Hex, 1/4" - 28 x 3-1/2", Gr 5

- hex, 1/4 NF x 3-1/2 inch (4210/4230), fan without air conditioning, Serial Range: -JJE0910719

1шт.

19

414-444

BOLT,Hex, 1/4" - 28 x 2-3/4", Gr 5

- hex, 1/4 NF x 2-3/4 inch, fan without air conditioning, Start Serial: JJE0910720

1шт.

13

136844A1

FAN

- engine cooling, with airconditioning

1шт.

14

137276A1

SPACER

- pulley, fan with air conditioning, Serial Range: -JJE0910719

1шт.

14

181750A1

SPACER

- pulley, fan with air conditioning, Start Serial: JJE0910720

1шт.

15

84624C1

PULLEY

- water pump (2 groove), fan with air conditioning

1шт.

16

3129140R1

V-BELT,13.70 mm W

Fan, with air conditioning 13.70 mm W

1шт.

17

496-11028

WASHER,9/32" x 5/8" x .065, HDN

- flat, hardened, 9/32 x 5/8 x 1/16 inch, fan with air conditioning

1шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Fan with air conditioning 1/4"

1шт.

19

414-456

BOLT,Hex, 1/4" - 28 x 3-1/2", Gr 5

- hex, 1/4 NF x 3-1/2 inch, fan with air conditioning, Serial Range: -JJE0910719

1шт.

19

414-448

BOLT,Hex, 1/4" - 28 x 3", Gr 5

- hex, 1/4 NF x 3 inch, fan with air conditioning, Start Serial: JJE0910720

1шт.
