Запчасти Case IH 4240 (8-10) - HYDRAULIC POWER SUPPLY, MULTIPLE CONTROL VALVE (08) - HYDRAULICS

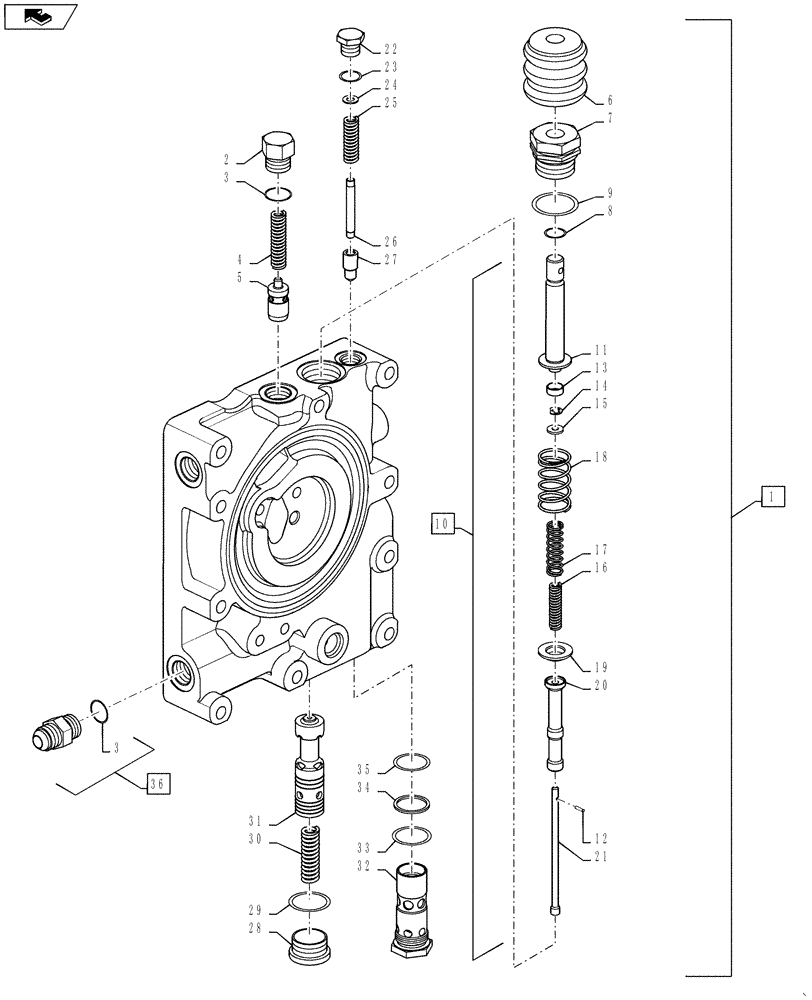

Схема запчастей Case IH 4240 - (8-10) - HYDRAULIC POWER SUPPLY, MULTIPLE CONTROL VALVE (08) - HYDRAULICS
21
20
12
23
22
3
25
4
3
30
15
31
35
32
2
33
24
27
36
1
home
28
11
5
26
18
13
6
7
34
9
16
8
29
19
14
10
17

Артикул

Название

Примечание

Количество

1

94281C98

VALVE

ASSEMBLY - multiple control, Includes: Ref. 1 - 36

1шт.

2

529492R2

PLUG

cooler by-pass

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

4

1502544C1

SPRING

by-pass valve

1шт.

5

527482R1

VALVE,By-Pass

1шт.

6

530780R1

BOOT

dust, IPTO control

1шт.

7

530781R2

GUIDE

control valve stem

1шт.

8

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

9

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

10

530775R94

VALVE

ASSEMBLY - control, Includes: Ref. 11 - 21

1шт.

11

530777R3

STEM

control valve

1шт.

12

405456R1

PIN

dowel, control valve

1шт.

13

530778R1

RETAINER

pin

1шт.

14

100-3321

SNAP RING,#X21, .185" Dia, E-Type

1шт.

15

95-61020

WASHER,13/64" x 3/4" x .060"

1шт.

16

399878R2

SPRING

control valve (Heavy)

1шт.

17

381760R1

SPRING

control valve (Light)

1шт.

18

530776R1

SPRING

control valve return

1шт.

19

405453R1

RETAINER

IPTO valve

1шт.

20

405452R2

VALVE

control

1шт.

21

405454R2

PIN

control valve guide

1шт.

22

573983R1

PLUG

regulator valve

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

363454R1

WASHER,8.33mm ID x 12.3mm OD x 0.81mm Thk

SHIM

1шт.

25

549850R1

SPRING

pressure regulator valve

1шт.

26

399881R2

PIN

pressure regulator valve

1шт.

27

399882R1

POPPET

poppet, pressure regulator

1шт.

28

218-5212

PLUG,1-1/16" - 12 ORB

1шт.

29

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

30

1345986C1

SPRING

flow divider

1шт.

31

1345985C1

SPOOL

flow divider

1шт.

32

399858R92

VALVE

ASSEMBLY - pilot relief

1шт.

33

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

34

378985R2

BACK-UP RING

backup

1шт.

35

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

36

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Inc. Ref 3

1шт.

Выбрано товаров: 36
