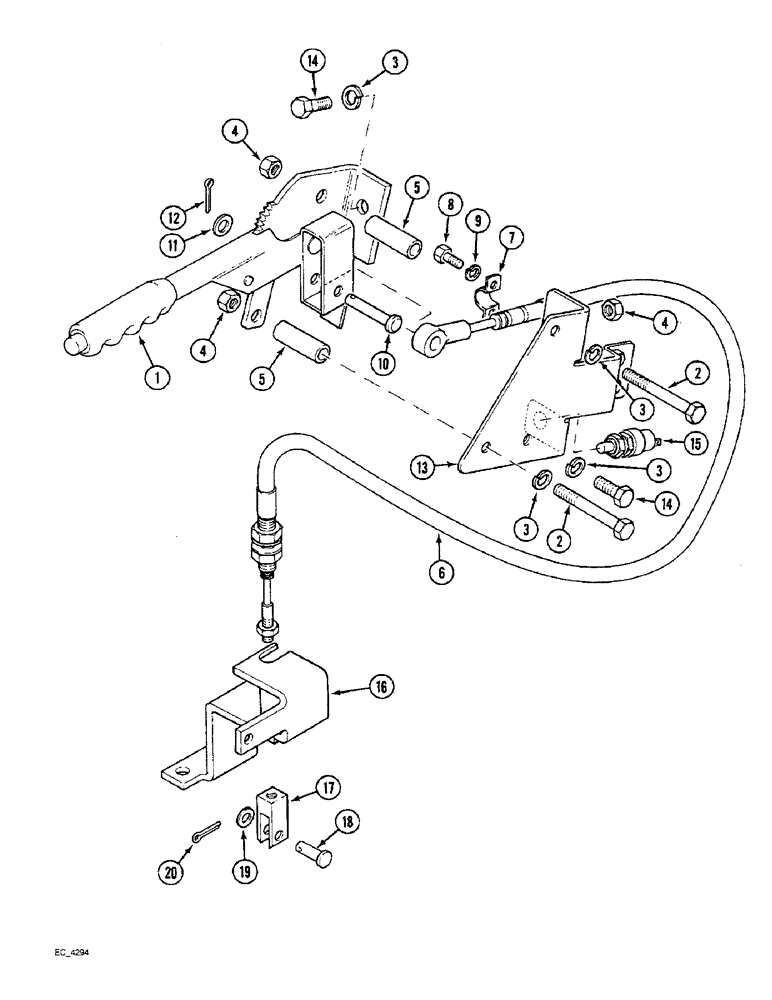

Запчасти Case IH 4240 (7-20) - PARK BRAKE, MFD TRACTOR, TRACTOR WITHOUT CAB (07) - BRAKES

1

127579A1

BRAKE LEVER

HANDLE - control

1шт.

2

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

- hex, 10 - 1.5 x 80 mm

2шт.

3

892-11010

LOCK WASHER,M10

4шт.

4

825-1410

NUT,M10, Cl 8

3шт.

5

11531N

SPACER,3/8" Pipe x 2"

tubular, 3/8 x 2 inch long

2шт.

6

134780A1

CABLE

- park brake

1шт.

7

1344178C1

CLAMP

- cable

1шт.

8

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

9

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

10

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

PIN, CLEVIS, , Hardened 3/8" x 1 9/16"

1шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

12

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

13

136026A2

SUPPORT

BRACKET - lever support

1шт.

14

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

15

3147137R1

SWITCH

SWITCH - differential lock

1шт.

16

135787A2

SUPPORT

BRACKET - cable, lower

1шт.

17

119382A2

YOKE

CLEVIS - cable, connect

1шт.

18

729-830

CLEVIS PIN,M8 x 30

PIN - clevis, hardened, 8 x 30 mm

1шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

20

733-2012

COTTER PIN,M2 x 12

PIN, SPLIT (COTTER), M2 x 12

1шт.
