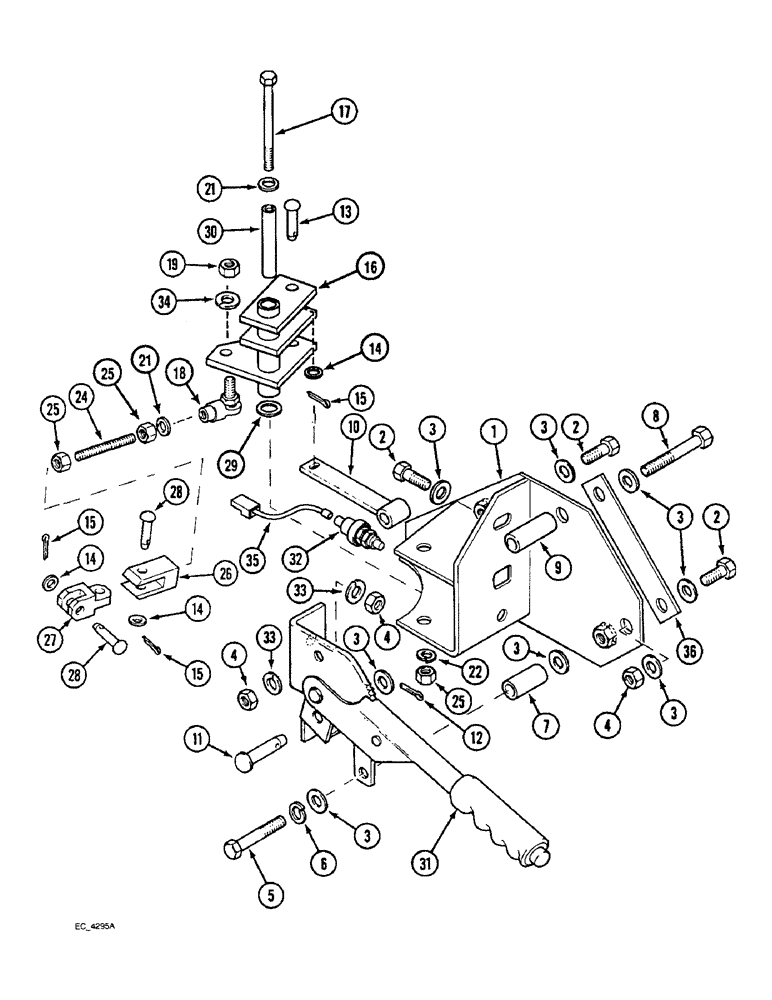

Запчасти Case IH 4240 (7-18) - PARK BRAKE, TWO WHEEL DRIVE TRACTOR, TRACTOR WITHOUT CAB (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
175013A2
SUPPORT ASSY.
BRACKET - park brake lever
1шт.
2
614-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
3шт.
3
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE
10шт.
4
829-1410
NUT,M10 x 1.5, Cl 10.9
3шт.
5
814-10060
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
1шт.
6
892-11010
LOCK WASHER,M10
1шт.
7
144518A1
SPACER
- pipe, 3/8 x 1-5/8 inch
1шт.
8
814-10080
BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8
- hex, 10 - 1.5 x 80 mm
1шт.
9
144517A1
SPACER
- pipe, 3/8 x 2 inch
1шт.
10
127944A1
LINK
- brake
1шт.
12
432-612
COTTER PIN,3/32" x 3/4"
PIN , SPLIT (COTTER), 3/32" x 3/4"
1шт.
13
729-835
CLEVIS PIN,M8 x 35
PIN - clevis, 8 mm x 35 mm
1шт.
14
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
- flat, 9 x 17 x 1.6 mm
3шт.
15
733-2012
COTTER PIN,M2 x 12
PIN, SPLIT (COTTER), M2 x 12
3шт.
16
127947A4
PIVOT ASSY.
PIVOT - control
1шт.
18
127951A1
BALL JOINT
JOINT - ball
1шт.
19
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
- hex, 8 mm - 1.25, class 10
1шт.
21
896-11008
WASHER,9mm ID x 17mm OD x 2mm Thk
- flat
2шт.
22
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
1шт.
24
127952A2
STEM
ROD - adjusting
1шт.
25
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
- hex, 8 mm - 1.25, class 10
3шт.
26
141291A1
CLEVIS
- park brake
1шт.
27
127954A1
CLEVIS
- park brake
1шт.
28
729-830
CLEVIS PIN,M8 x 30
PIN - clevis, hardened, 8 x 30 mm
2шт.
29
495-11053
WASHER,1/2", SAE
(17/32" x 1-1/16" x 3/32") 1/2", SAE
1шт.
30
136911A1
TUBE,12.7 mm OD, 74.5 mm Length
- pivot
1шт.
31
127579A1
BRAKE LEVER
HANDLE - control
1шт.
32
3147137R1
SWITCH
SWITCH - differential lock
1шт.
33
892-11010
LOCK WASHER,M10
2шт.
34
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
1шт.
35
179577A1
CABLE
- park brake switch
1шт.
36
175905A1
LARGE PLATE
BAR - support
1шт.
Выбрано товаров: 34
