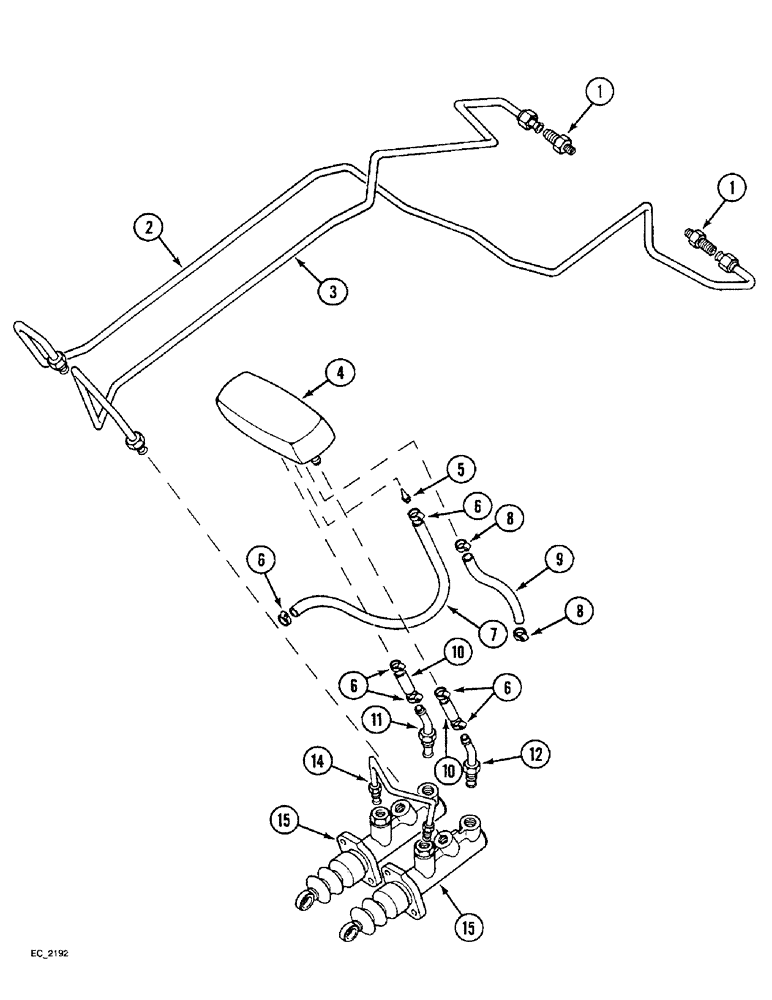

Запчасти Case IH 4240 (7-04) - BRAKE RESERVOIR AND PIPES, TRACTOR WITHOUT CAB (07) - BRAKES

1

3129671R1

FITTING

ADAPTER - brake pipe

2шт.

2

1956753C3

TUBE,8 mm OD

left

1шт.

3

1282573C2

BRAKE LINE

right

1шт.

4

3129644R1

RESERVOIR

- brake

1шт.

5

537518R1

SCREEN

- with orifice

1шт.

6

3125239R1

COLLAR

CLAMP - hose

6шт.

7

NSS

NOT SOLD SEPARAT

HOSE - brake reservoir supply 580 mm (Cut from bulk roll 1954143CX)

1шт.

8

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, #10, 0.56/1.06 Type F Worm

2шт.

9

1288340C1

HOSE

- reservoir dump, 250 mm

1шт.

10

NSS

NOT SOLD SEPARAT

HOSE - cylinder supply 40 mm (Cut from bulk roll 1954143CX)

2шт.

11

98804C1

BRAKE LINE

brake cylinder supply, right

1шт.

12

98805C1

BRAKE LINE

brake cylinder supply, left

1шт.

14

1287847C2

BRAKE LINE,4.78 mm OD, 79, 65 mm Length

equalizer

1шт.

15

1287843C92

MASTER CYLINDER

CYLINDER ASSEMBLY - brake master (See Figure 7-10)

2шт.

1954143CX

HOSE,7.92mm ID x 7620mm L, SAE 30R1

- bulk length, 5/16 x 25 foot

1шт.
