Запчасти Case IH 4240 (6-130) - REAR WHEEL WEIGHTS, SPLIT TYPE, 24 AND 26 IN., 28 AND 30 IN. WHEELS, 1ST AND 2ND POSITIONS (06) - POWER TRAIN

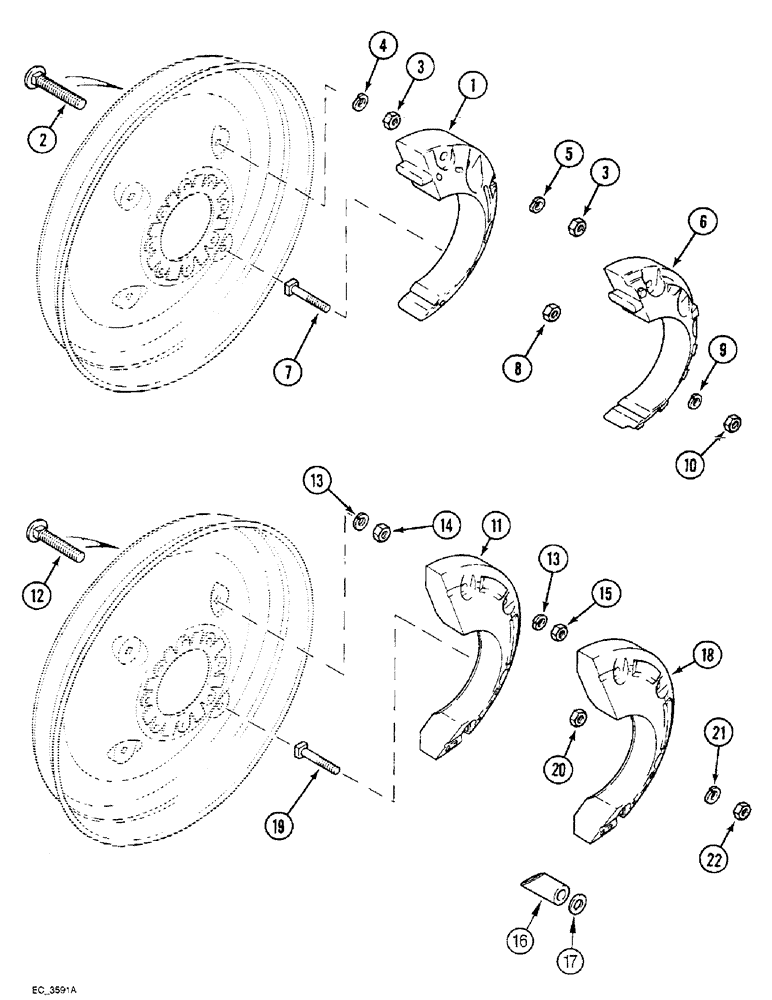

Схема запчастей Case IH 4240 - (6-130) - REAR WHEEL WEIGHTS, SPLIT TYPE, 24 AND 26 IN., 28 AND 30 IN. WHEELS, 1ST AND 2ND POSITIONS (06) - POWER TRAIN
21
19
1
14
10
12
4
8
15
13
22
9
20
17
3
5
16
3
11
18
13
6
7
2

Артикул

Название

Примечание

Количество

1

369509R1

WEIGHT

- rear wheels, 75 Lbs., 24 and 26 in. wheels, 1st position

4шт.

2

366646R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3 3/4", Gr 2

- rear wheel weight mounting, 24 and 26 in. wheels, 1st position

8шт.

3

425-1010

NUT,5/8"-11, G5

24 and 26 in. wheels, 1st position 5/8"-11, G5

16шт.

4

492-21062

LOCK WASHER,5/8"

24 and 26 in. wheels, 1st position 5/8"

8шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 24 and 26" wheels, 1st position 5/8"

8шт.

6

369509R1

WEIGHT

- rear wheels, 75 Lbs., 24 and 26 in. wheels, 2nd position

4шт.

7

369508R1

BOLT,5/8" - 11 x 5 3/4"

- rear wheel weight mounting, 24 and 26 in. wheels, 2nd position

8шт.

8

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC, 24 and 26 in. wheels, 2nd position

8шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 24 and 26" wheels, 2nd position 5/8"

8шт.

10

425-1010

NUT,5/8"-11, G5

24 and 26 in. wheels, 2nd position 5/8"-11, G5

8шт.

11

365321R2

WEIGHT

- rear wheels, 75 Lbs., 28 and 30 in. wheels, 1st position

4шт.

12

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch, 28 and 30 in. wheels, 1st position

8шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 28 and 30" wheels, 1st position 5/8"

8шт.

14

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC, 28 and 30 in. wheels, 1st position

8шт.

15

425-1010

NUT,5/8"-11, G5

28 and 30 in. wheels, 1st position 5/8"-11, G5

8шт.

16

135165A1

SPACER

28 and 30 in. wheels, 1st position

8шт.

17

495-11066

WASHER,5/8", SAE

- flat, 28 and 30 in. wheels, 1st position

8шт.

18

365321R2

WEIGHT

- rear wheels, 75 Lbs., 28 and 30 in. wheels, 2 nd position

4шт.

19

365332R2

SQUARE BOLT

BOLT - rear wheel weight mounting, 28 and 30 in. wheels, 2 nd position

8шт.

20

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC, 28 and 30 in. wheels, 2 nd position

8шт.

21

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 28 and 30" wheels, 2 nd position 5/8"

8шт.

22

425-1010

NUT,5/8"-11, G5

28 and 30 in. wheels, 2 nd position 5/8"-11, G5

8шт.

Выбрано товаров: 22
