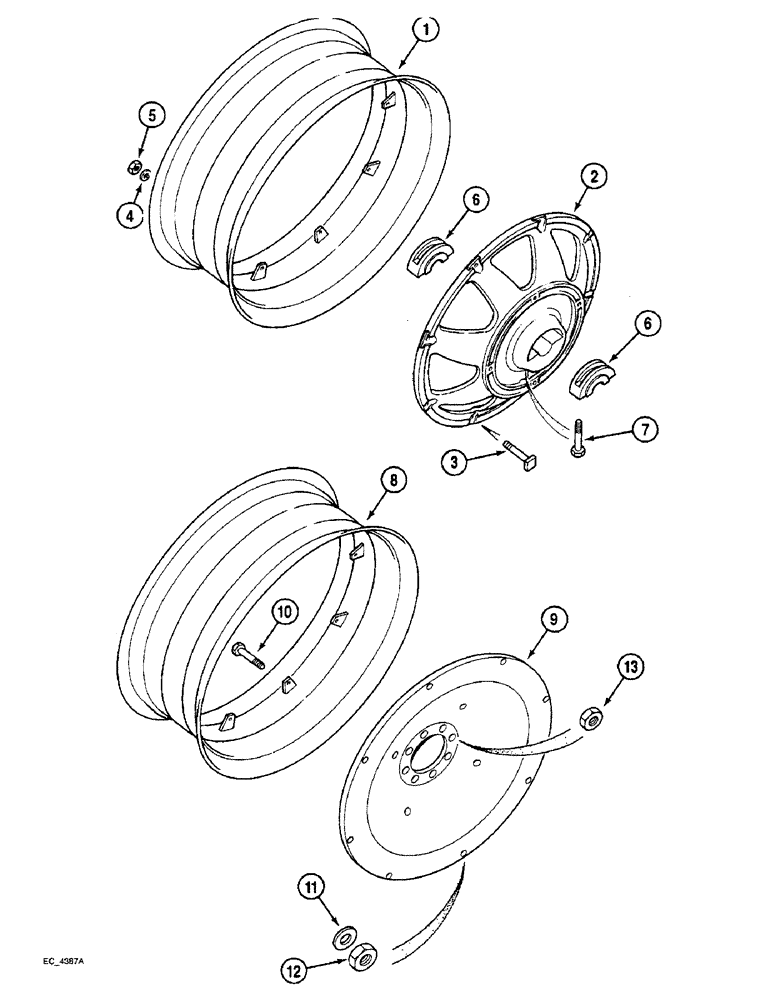

Запчасти Case IH 4240 (6-128) - REAR WHEELS, BAR TYPE REAR AXLE, 42 INCH WHEEL (06) - POWER TRAIN

1

392714R91

RIM

- wheel, WDB9-42 (For 12.4 x 42 tire)

2шт.

2

388336R1

DISC

- 5 inch offset (Cast)

2шт.

3

381727R2

WHEEL BOLT,Sq Hd, 5/8" - 18 x 2 3/4"

BOLT - rim clamp

16шт.

4

495-11066

WASHER,5/8", SAE

- flat

16шт.

5

425-1110

NUT,5/8"-18, G5

16шт.

6

389539R1

CLAMP

- rear wheel hub

4шт.

7

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT - special, hex head

8шт.

8

177503A1

RIM

- wheel, W9-42 (For 12.4 x 42 tire)

2шт.

9

1985680C2

DISC, WHEEL

DISC - wheel, 38 inch (Steel)

2шт.

10

614-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

- hex, full threads, 16 - 2.0 x 45 mm

8шт.

11

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

8шт.

12

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

8шт.

13

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, 16 mm

16шт.
