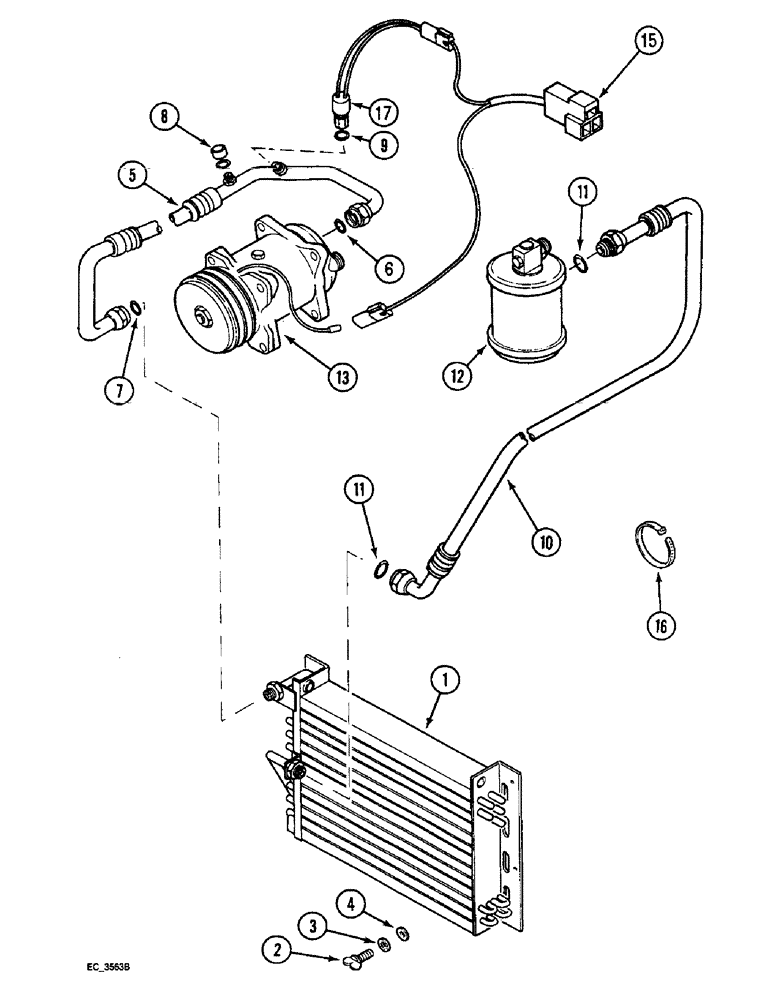

Запчасти Case IH 4240 (2-12) - AIR CONDITIONING, CONDENSER AND CONNECTIONS (02) - ENGINE

1

136909A2

CONDENSER

ASSEMBLY - air conditioning

1шт.

1a

87033212

VALVE

(Not Shown)

1шт.

2

1536993C1

THUMB SCREW,Winged, 5/16" - 18 x 12.70mm

- thumb, 5/16 inch NC, Serial Range: -JJE0910719

4шт.

2

905855R1

SCREW,Wing, M8 x 12mm

BOLT - wing, 8 x 12 mm, Start Serial: JJE0910720

4шт.

3

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch, Serial Range: -JJE0910719

4шт.

4

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Serial Range: -JJE0910719

4шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, Start Serial: JJE0910720

4шт.

5

134091A2

HOSE

- compressor to condenser (4210/30)

1шт.

5

220433A2

HOSE

- compressor to condenser (4240), Includes: Ref. 6 - 9

1шт.

6

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 14.0 mm ID

1шт.

7

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

- 10.82 mm ID

1шт.

8

122554A1

CAP

- sealing, 7/16-20 inch female 45 deg flare, high side port

1шт.

9

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- ID 7.65 mm

1шт.

10

134094A1

HOSE

- condenser to receiver, Includes: Ref. 11

1шт.

11

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- ID 7.65 mm

2шт.

12

1990758C2

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning

1шт.

13

1999755C2

COMPRESSOR

ASSEMBLY - air conditioning (See Figure 2-14)

1шт.

13

86993462R

REMAN-COMPRESSOR

4210, 4230, 4240 all (1/94-12/98); Reman For New P/N 1999755C2

1шт.

13

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

13

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

13

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

13

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove pulley, For Use w/ HFC134A Refrigerant

1шт.

13

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

15

140592A2

HARNESS

- air conditioning, front

1шт.

16

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

17

232948A1

SWITCH, A/C HIGH PRE

SWITCH, A/C HIGH PRESSURE

1шт.
