Запчасти Case IH 4240 (6-116) - POWER TAKE OFF CONTROL AND CONNECTIONS, TRACTOR WITH CAB (06) - POWER TRAIN

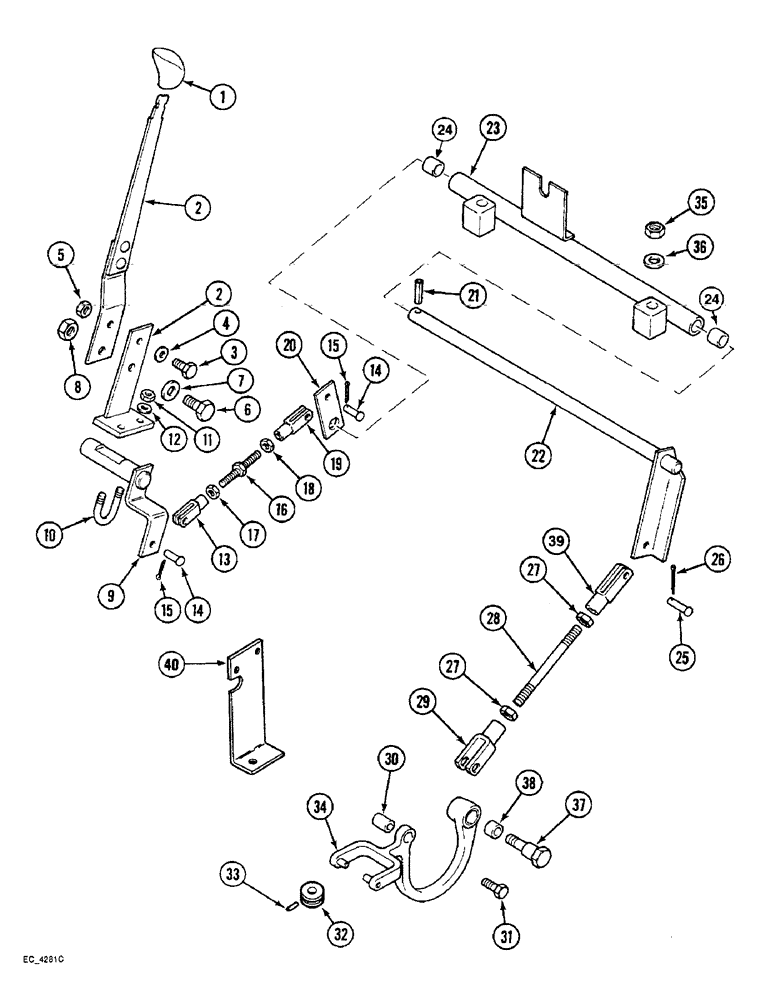

Схема запчастей Case IH 4240 - (6-116) - POWER TAKE OFF CONTROL AND CONNECTIONS, TRACTOR WITH CAB (06) - POWER TRAIN
2
5
24
35
25
18
11
31
14
40
14
29
17
23
33
24
16
13
20
1
38
7
15
39
34
12
21
27
4
3
37
32
22
30
9
10
36
26
6
19
15
28
27
8
2

Артикул

Название

Примечание

Количество

1

118702A2

BALL KNOB

KNOB - control

1шт.

2

128221A2

LEVER ASSY.

LEVER - control, Includes: Ref. 3 - 8

1шт.

3

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

5

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

1шт.

6

628-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 25 mm, class 10.9

1шт.

7

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

1шт.

8

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

1шт.

9

197645A1

ARM ASSY.

SHAFT - P.T.O. control

1шт.

10

3129349R1

U-BOLT,M8 x 1.25 x 36.25mm

BOLT - U-Type, 8 mm

1шт.

11

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm - 1.25, class 10.9

2шт.

12

3129414R1

SPACER

- pivot shaft, Includes: Ref. 13

1шт.

13

713-126

CLEVIS

- 6 mm x 24 mm

1шт.

14

729-616

CLEVIS PIN,M6 x 16

PIN - clevis, 6 mm x 16 mm

2шт.

15

733-1616

COTTER PIN,M1.6 x 16

PIN - cotter, 1.6 x 16 mm

2шт.

16

141700A1

STEM

TURNBUCKLE ASSEMBLY

1шт.

17

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

18

1536921C1

NUT

- hex, 6 mm class 10, left hand thread

1шт.

19

1536920C1

ADJUSTABLE CLEVIS

CLEVIS - 6 mm x 24 mm, left hand thread

1шт.

20

3129986R1

ARM ASSY.

ARM - crossover

1шт.

21

K657615

GROOVED PIN

PIN - grooved, 6 x 28 mm

1шт.

22

135839A2

PIVOT ASSY.

SHAFT - crossover

1шт.

23

134452A1

PIVOT ASSY.

PIVOT - control, shaft, Includes: Ref. 24

1шт.

24

528839R1

BUSHING

- control shaft support

2шт.

25

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

1шт.

26

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.

27

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

1шт.

28

135838A1

ROD,THREADED

ROD - control

1шт.

29

528837R1

CLEVIS,5/16" - 24

- IPTO control

1шт.

30

1970796C1

SPACER

- control clevis

1шт.

31

328-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 8

1шт.

32

530813R2

GUIDE BUSHING

COLLAR - IPTO

1шт.

33

38-21214

PIN,3/16" x 7/8", Coiled

1шт.

34

135837A1

LEVER

ASSEMBLY - IPTO, control (Replaces 530813R2)

1шт.

35

425-106

NUT,3/8"-16, Cl 5

2шт.

36

492-11038

LOCK WASHER,3/8"

2шт.

37

135925A1

BOLT,Hex, 3/8" - 16 - 14.22 - 14.30mm x 56mm L

BOLT - control arm pivot shaft

1шт.

38

135951A1

SPACER

- tube

1шт.

39

213-115

ADJUSTABLE CLEVIS,5/16" - 24

CLEVIS, ADJUSTABLE, 5/16"-24

1шт.

40

176469A1

SUPPORT

ANGLE - switch mounting

1шт.

Выбрано товаров: 40
