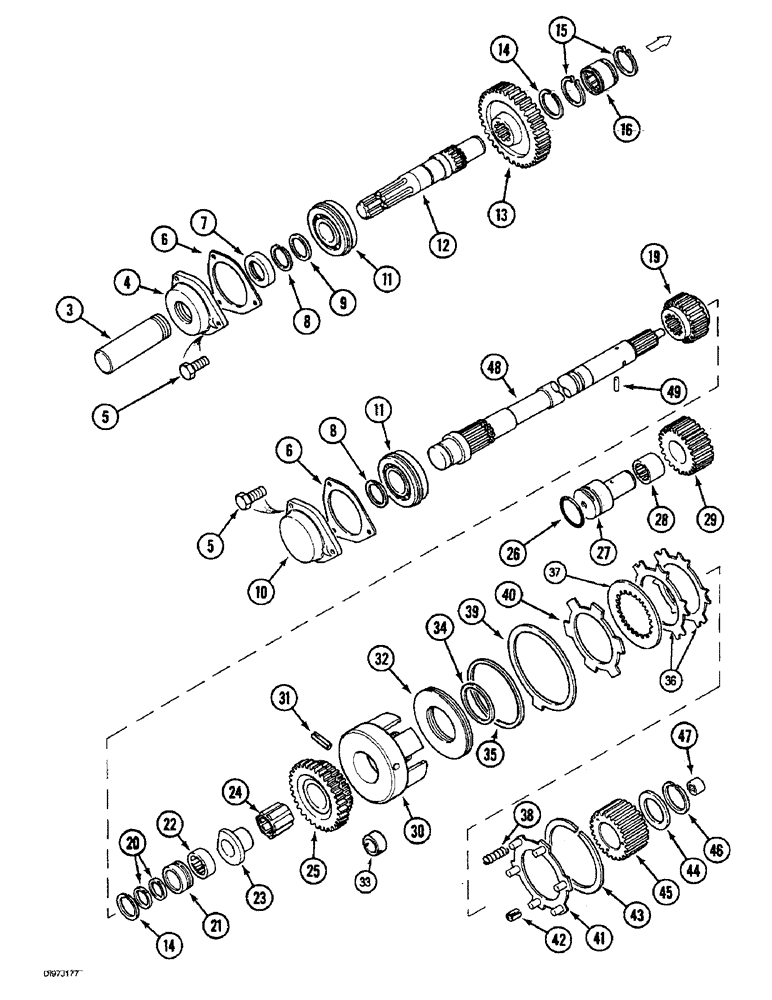

Запчасти Case IH 4240 (6-108) - INDEPENDENT POWER TAKE OFF, SINGLE AND DUAL SPEED (06) - POWER TRAIN

3

1537007C1

TUBE

CAP - protection, IPTO safety (Single speed)

1шт.

3

1537007C1

TUBE

CAP - protection, IPTO safety (Dual speed)

2шт.

4

1500086C1

FLANGED BEARING

- bearing, IPTO shaft (Single speed)

1шт.

4

1500086C1

FLANGED BEARING

- bearing, IPTO shaft (Dual speed)

2шт.

5

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

6шт.

6

1970891C1

GASKET

- rear frame IPTO flange

2шт.

7

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL - oil, output shaft (Single speed)

1шт.

7

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL - oil, output shaft (Dual speed)

2шт.

8

100-16156

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

2шт.

9

1500085C1

WASHER

- thrust

1шт.

10

66191C1

FLANGED BEARING

- bearing, IPTO shaft (Single speed)

1шт.

11

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

BEARING - ball (4210)

2шт.

11

132102A1

BEARING, ROLLER,40 mm ID x 90 mm OD x 23 mm

BEARING - ball (4230/4240 only)

2шт.

12

1500087C1

SHAFT

- upper, IPTO output

1шт.

13

1342557C2

PINION

GEAR - upper driven, 38 teeth

1шт.

14

101-11175

SNAP RING,#175, 1.640", Ext

RING - clutch release spring return, 1.64 inch

2шт.

15

100-11206

SNAP RING,#206, Ext

Ring, Snap, #206, Ext

2шт.

16

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

- needle, top shaft

1шт.

19

1342558C2

PINION

GEAR - drive, 21 teeth, lower shaft

1шт.

20

88574C1

SEAL,35.92mm ID x 40.12mm OD x 2.9mm Thk

- shaft sealing

2шт.

21

93506C1

BUSHING

- lower shaft

1шт.

22

93501C91

NEEDLE BEARING,37.03mm ID x 51.99mm OD x 21.94mm W

- needle

1шт.

23

82499C2

BUSHING

- double idler gear (MFD tractor)

1шт.

24

82667C91

NEEDLE BEARING,44.99mm ID x 59.01mm OD x 31.63mm W

- needle (MFD tractor)

1шт.

25

82666C3

PINION

GEAR - double idler

1шт.

26

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

27

401726R1

SHAFT

- IPTO idler

1шт.

28

A31213

NEEDLE BEARING,Needle, 34.91mm ID x 41.27mm OD x 31.75mm W

BEARING - idler shaft

1шт.

29

401727R1

PINION

GEAR - idler, 24 teeth

1шт.

30

82609C2

CLUTCH HOUSING

CUP - IPTO clutch

1шт.

31

38-32032

PIN,7.92mm OD x 50.8mm L

1шт.

32

401722R1

PISTON

- clutch

1шт.

33

240471A1

COLLAR

- idler gear retaining (Non PTO and Non MFD)

1шт.

34

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

- piston, inner

1шт.

Part of clutch (Heavy duty) service kit P/N 3125257R91

1шт.

Part of clutch Standard, service kit P/N NSS

1шт.

35

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING - piston, outer

1шт.

Part of clutch (Heavy duty) service kit P/N 3125257R91

1шт.

Part of clutch Standard, service kit P/N NSS

1шт.

36

3125147R1

DRIVEN PLATE

PLATE - clutch driven (Heavy duty)

5шт.

Part of clutch (Heavy duty) service kit P/N 3125257R91

1шт.

36

401716R3

DISC

PLATE - clutch driven (Standard)

5шт.

Part of clutch Standard, service kit P/N NSS

1шт.

37

3125322R2

DISC

PLATE - clutch driven (Heavy duty)

6шт.

Part of clutch (Heavy duty) service kit P/N 3125257R91

1шт.

37

66188C1

DRIVEN PLATE

PLATE - clutch separator (Standard)

8шт.

Part of clutch Standard, service kit P/N NSS

1шт.

38

66182C1

SPRING

- piston return

6шт.

Part of clutch (Heavy duty) service kit P/N 3125257R91

1шт.

Part of clutch Standard, service kit P/N NSS

1шт.

39

82349C3

RING

- IPTO brake

1шт.

40

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

- piston return

1шт.

41

66186C92

PLATE ASSY.

PLATE - clutch backing, Includes: Ref. 42

1шт.

42

38-32016

PIN,5/16" x 1", Coiled

6шт.

43

401720R1

CIRCLIP

RING - retaining, backing plate

1шт.

44

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

WASHER - thrust, clutch hub

1шт.

45

66183C2

HUB ASSY.,45T

HUB ASSEMBLY - clutch

1шт.

46

101-11206

SNAP RING,#206, 1.936", Ext

RING - retaining, external, 1.936 inch

1шт.

47

82351C91

NEEDLE BEARING

BEARING - needle, IPTO driven shaft

1шт.

48

99463C1

SHAFT

ASSEMBLY - driving, IPTO (Single speed), Includes: Ref. 49

1шт.

48

99462C1

SHAFT

ASSEMBLY - output, 1000 rpm, Includes: Ref. 49

1шт.

49

838-5410

LOCK PIN,M4 x 10, Slotted

PIN - slotted spring, 4 x 10 mm

1шт.

NSS

NOT SOLD SEPARAT

KIT - service, clutch (Standard) (Includes Ref. 34, 35, 401716R3, 66188C1, and 38) (Order components)

1шт.

3125257R91

PACKAGE

KIT - service, clutch (Heavy duty) Includes: Ref. 34, 35, 36, 37 and 38

1шт.
