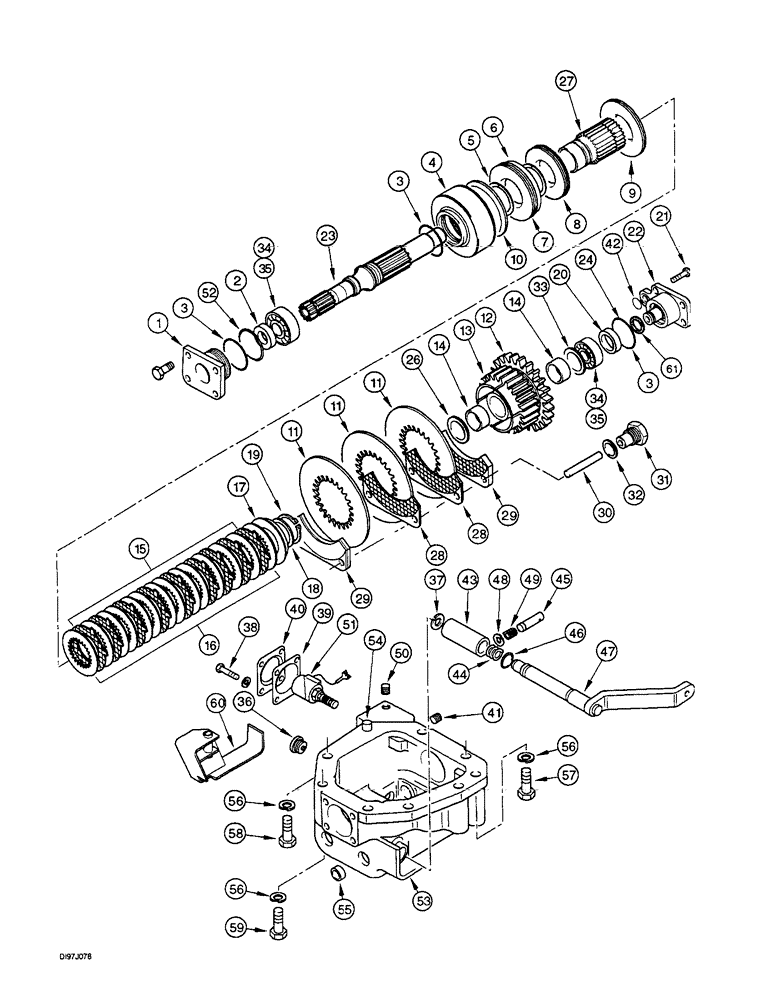

Запчасти Case IH 4240 (6-104) - MECHANICAL FRONT DRIVE, TRANSFER GEARBOX (06) - POWER TRAIN

116624A5

TRANSFER BOX

HOUSING ASSEMBLY - transfer gear, Includes: Ref. 1 - 37

1шт.

1

100757A1

COVER

- front

1шт.

2

100752A1

SEALING RING,32mm ID x 50mm OD x 14mm Thk

RING - spacer, oil

1шт.

3

238-5138

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

3шт.

4

139268A1

HOUSING

- piston

1шт.

5

800-1155

RETAINER,55mm ID

RING - snap, 55 mm

2шт.

6

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

1шт.

7

139269A1

PISTON

- clutch, Serial Range: -JJE0926261

1шт.

7

239195A1

PISTON

- clutch, Start Serial: JJE0926262

1шт.

8

139271A1

BELLEVILLE SPRING

SPRING - Belleville

2шт.

9

139272A1

CLUTCH DISC

PLATE - clutch

1шт.

10

139313A1

CIRCLIP

RING - retaining

1шт.

11

139273A1

PLATE

- brake, separator

3шт.

139275A1

SPROCKET ASSY.

GEAR ASSEMBLY - driven, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - driven (Order 139275A1)

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - clutch (Order 139275A1)

1шт.

14

139279A1

BRONZE BUSHING

BUSHING - bronze

2шт.

15

139280A1

CLUTCH DISC

PLATE - clutch, friction

9шт.

16

139281A1

DISC

PLATE - clutch, separation

14шт.

17

139282A1

LARGE PLATE

PLATE - reaction

1шт.

18

139283A1

SHIM

- 0.50 mm

1шт.

18

139284A1

SHIM

- 0.20 mm

1шт.

18

139285A1

SHIM,65.2mm ID x 74.8mm OD x 0.1mm Thk

- 0.10 mm

1шт.

18

139286A1

SHIM

- 2.00 mm

1шт.

19

800-1165

SNAP RING,M65, Ext

RING - retaining, 65 mm

1шт.

20

139287A1

OIL SEAL

SEAL - oil, Serial Range: -JJE0926261

1шт.

21

614-8022

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 22 mm

8шт.

22

140759A1

COVER ASSY

COVER - rear, Serial Range: -JJE0926261

1шт.

22

239198A1

COVER ASSY

COVER - intermediate, Start Serial: JJE0926262

1шт.

23

139289A1

DRIVE SHAFT

SHAFT - main, Serial Range: -JJE0926261

1шт.

23

239199A1

DRIVE SHAFT

SHAFT - main, Start Serial: JJE0926262

1шт.

26

139309A1

THRUST WASHER

WASHER - thrust

1шт.

27

139291A1

COUNTERSHAFT

SHAFT - intermediate, Serial Range: -JJE0926261

1шт.

27

239196A1

COUNTERSHAFT

SHAFT - intermediate

1шт.

28

139292A1

BRAKE PAD

PAD - brake, internal

2шт.

29

139293A1

BRAKE PAD

PAD - brake, external

2шт.

30

139294A1

GUIDE

PIN - guide

2шт.

31

139295A1

PLUG

- pin, retaining

2шт.

32

139310A1

SEALING WASHER

O-RING - seal

2шт.

33

139296A1

THRUST WASHER

WASHER - thrust

2шт.

100742A1

BEARING ASSY

BEARING - ball, Includes: Ref. 34 and 35

2шт.

34

NSS

NOT SOLD SEPARAT

BEARING - cup (Order 100742A1)

1шт.

35

NSS

NOT SOLD SEPARAT

BEARING - cone (Order 100742A1)

1шт.

36

100557A1

PLUG, DRAIN,M30 x 2

PLUG - drain

1шт.

37

800-5125

CIRCLIP,M25, External

RING - retaining external, 25 mm

1шт.

116624A5

TRANSFER BOX

HOUSING ASSEMBLY - transfer gear, Includes: Ref. 38 - 55

1шт.

38

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

4шт.

39

100759A1

GASKET

- side cover solenoid

1шт.

40

100758A1

COVER

- side plate, solenoid

1шт.

41

139312A1

PLUG,Expansion, 6mm OD

- 6 mm

2шт.

42

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

43

139298A1

SHAFT

- cam

1шт.

44

139300A1

SPRING

1шт.

45

139301A1

PIN

- actuating

2шт.

46

238-5122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1шт.

47

139302A1

BRAKE LEVER

LEVER ASSEMBLY - brake

1шт.

48

800-1114

SNAP RING,M14, Ext

RING - snap, 14 mm

2шт.

49

139306A1

SPRING LOCK

SPRING - pin, return

2шт.

50

K395020

PLUG

2шт.

51

100739A1

SOLENOID

VALVE - solenoid

1шт.

52

100754A1

SHIM

- 0.1 mm

1шт.

52

139308A1

SHIM

- 0.15 mm

1шт.

52

100755A1

SHIM

- 0.3 mm

1шт.

52

100756A1

SHIM

- 0.5 mm

1шт.

53

140758A2

HOUSING ASSY.

HOUSING ASSEMBLY - main, Includes: Ref. 54 and 55

1шт.

54

37-1816

DOWEL,1/2" x 1"

PIN - dowel, 1/2 x 1 inch, hardened

2шт.

55

641-3020

PLUG,M20, Conical

- cup, 20 mm

2шт.

56

396-21053

WASHER,17/32" x 1 1/16" x .134"

9шт.

57

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

SCREW - 1/2 x 3-1/4 inch

3шт.

58

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

59

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

- hex, 1/2 x 4-1/4 inch

4шт.

59

326-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

1шт.

60

141894A2

GUARD

SHIELD - tube, MFD

1шт.

Shield is attached to housing with the following parts 61-35052 allen screw and washer 396-21053.

1шт.

61

239197A1

OIL SEAL

SEAL - oil, Start Serial: JJE0926262

1шт.
