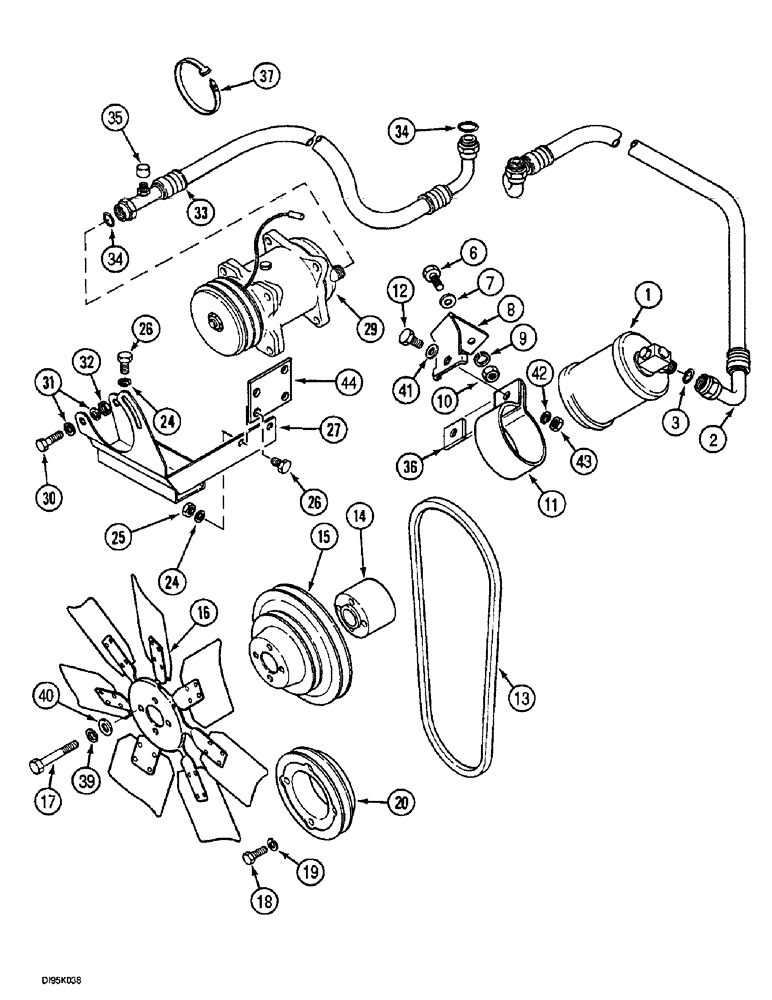

Запчасти Case IH 4240 (2-10) - AIR CONDITIONING, COMPRESSOR AND CONNECTIONS (02) - ENGINE

1

1990758C2

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning

1шт.

2

134093A1

HOSE

-, Serial Range: receiver-cab

1шт.

3

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- ID 7.65 mm

1шт.

6

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 6 x 20 mm, class 8

2шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

8

134072A2

SUPPORT

- receiver

1шт.

9

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

10

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

11

T102980

CLAMP

BRACKET - receiver/dryer

1шт.

12

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

2шт.

13

84657C1

V-BELT,0.50" W x 67.00" L

V-BELT, , Freon Compressor 0.50" W x 67.00" L

1шт.

14

137276A1

SPACER

- pulley

1шт.

15

84624C1

PULLEY

- water pump, (2 groove)

1шт.

16

136844A1

FAN

- engine cooling

1шт.

17

414-456

BOLT,Hex, 1/4" - 28 x 3-1/2", Gr 5

- hex, 1/4 NF x 3-1/2 inch, Serial Range: -JJE0910719

4шт.

17

414-444

BOLT,Hex, 1/4" - 28 x 2-3/4", Gr 5

- hex, 1/4 NF x 2-3/4 inch, Start Serial: JJE0910720

4шт.

18

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20

84623C1

PULLEY

- crankshaft

1шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

27

84485C2

SUPPORT

BRACKET - Freon compressor

1шт.

29

1999755C2

COMPRESSOR

ASSEMBLY - air conditioning (See Figure 2-14)

1шт.

29

86993462R

REMAN-COMPRESSOR

4210, 4230, 4240 all (1/94-12/98); Reman For New P/N 1999755C2

1шт.

29

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

29

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

29

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

29

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

29

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

30

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

31

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

6шт.

32

329-106

NUT,3/8"-16, G8

3шт.

33

134092A1

HOSE

- cab base to compressor (4210/30)

1шт.

33

220434A1

HOSE

- cab base to compressor (4240), Includes: Ref. 34 and 35

1шт.

34

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 14.0 mm ID

1шт.

35

122553A1

CAP

- sealing

1шт.

36

T103390

WASHER

- spacer

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

39

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

40

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), Hardened 1/4", SAE

4шт.

41

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

42

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

43

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

226682A1

SUPPORT

PLATE - mounting, air cleaner (4240 with air cond) (Not shown)

1шт.
