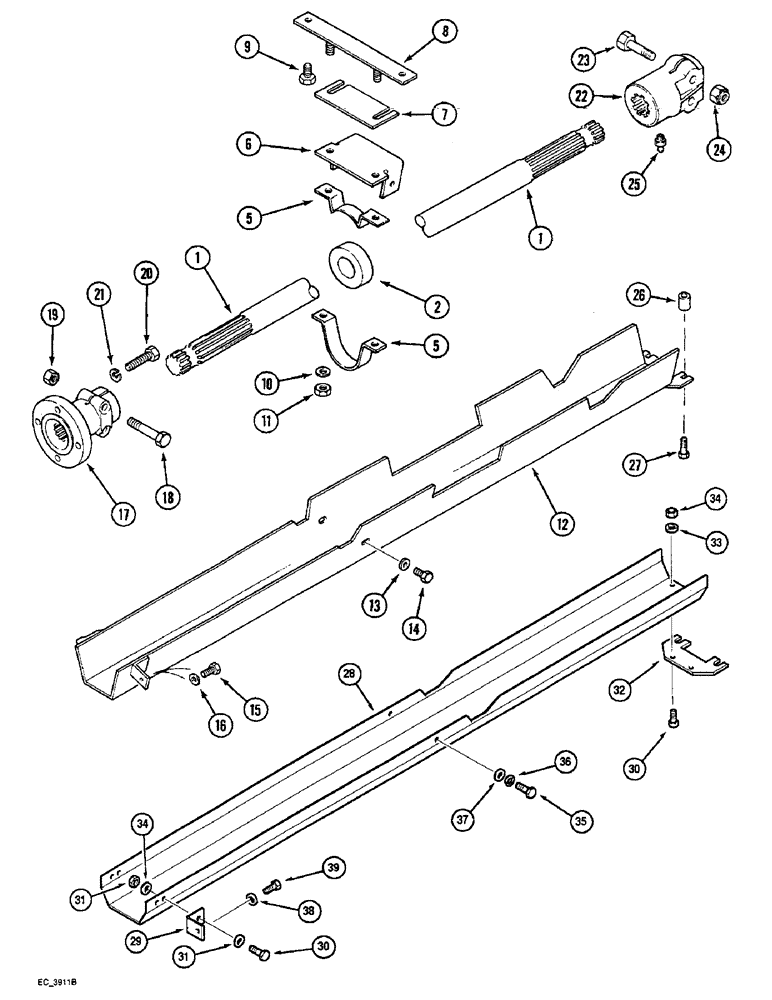

Запчасти Case IH 4240 (6-102) - MECHANICAL FRONT DRIVE, DRIVE SHAFT AND SHIELD (06) - POWER TRAIN

1

1335031C1

DRIVE SHAFT

SHAFT - drive, use on tractor with 4 cylinder engine

1шт.

2

1537681C1

BALL BEARING,32.01mm ID

- ball

1шт.

2

226878A1

BEARING ASSY,32.01mm ID

Bearing Assy w/ CTC of hole=106.0mm /4.173"

1шт.

5

1537682C1

CLAMP BRACKET

HOUSING - bearing, CTC of hole=95.00mm /3.740"

1шт.

6

82211C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - bearing

1шт.

7

82226C1

SHIM

- 0.5 mm thick

1шт.

7

82227C1

SHIM

- 1.0 mm thick

1шт.

7

82228C1

SHIM

- 2.0 mm thick

1шт.

8

89485C3

BAR ASSY.

BAR ASSEMBLY - bearing support

1шт.

9

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

11

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10

2шт.

12

1537321C1

GUARD ASSY.

SHIELD - drive shaft, use on tractor with 4 cylinder engine

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

15

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

17

1537306C2

FLANGE

- 24 splines

1шт.

18

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

20

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

4шт.

21

892-11010

LOCK WASHER,M10

4шт.

22

1537839C1

SPLINED COUPLING,24T

COUPLING - drive shaft, transfer gear box

1шт.

23

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

24

K965414

NUT

- M10

2шт.

25

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

1шт.

26

1537849C1

SPACER

- shield mounting

2шт.

27

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

- hex, 1/2 x 4-1/4 inch

2шт.

1537318C2

GUARD ASSY.

SHIELD ASSEMBLY - plastic (With cab), Includes: Ref. 28 - 34

1шт.

189228A1

GUARD ASSY.

SHIELD ASSEMBLY - plastic (Without cab), Includes: Ref. 28 - 34

1шт.

28

189146A1

GUARD

SHIELD - plastic (With cab)

1шт.

28

189229A1

GUARD

SHIELD - plastic (Without cab)

1шт.

29

189147A1

ANGLE

- bracket

2шт.

30

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

32

1536604C1

SUPPORT

rear

1шт.

33

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

34

829-1406

NUT,Hex, M6 x 1, Cl 10.9

6шт.

35

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

36

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

37

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

38

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

39

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.
