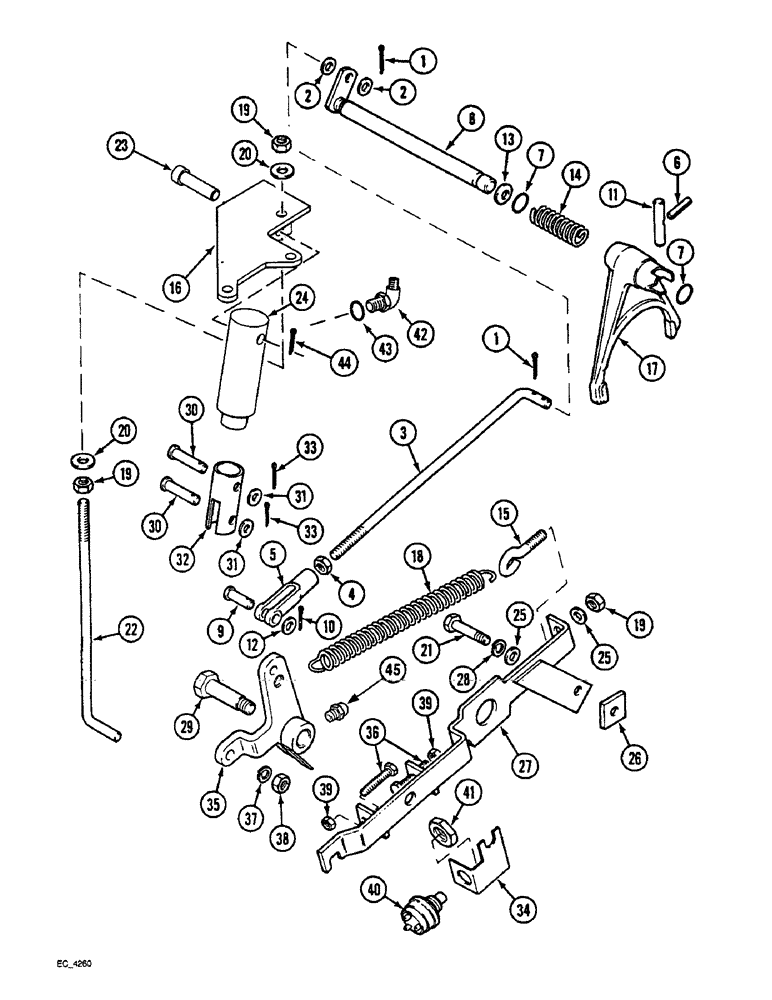

Запчасти Case IH 4240 (6-096) - DIFFERENTIAL LOCK, TRACTOR WITH CAB (06) - POWER TRAIN

1

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

2

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch

2шт.

3

123677A2

STEM

ROD - differential lock, Includes: Ref. 4 and 5

1шт.

4

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

5

753984R1

CLEVIS,3/8" - 16

- rod end

1шт.

6

38-2810

PIN,1/8" x 5/8", Coiled

1шт.

7

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

8

128874A1

SHAFT ASSY.

SHAFT ASSEMBLY - differential lock

1шт.

9

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened 3/8" x 1 1/16"

1шт.

10

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

11

1500388C2

PIN

- differential lock

1шт.

12

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch

1шт.

13

495-81020

WASHER,17/32" x 1" x .030"

- flat, 17/32 x 1 x 1/32 inch

1шт.

13

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

- flat, 23/32 x 1-1/4 x 3/64 inch

1шт.

14

527878R1

SPRING

- actuating, fork

1шт.

15

123976A1

BOLT,3/8" - 16 x 50mm

BOLT - eye

1шт.

16

136751A1

SUPPORT

BRACKET - cylinder mounting

1шт.

17

1500386C1

FORK

- differential lock shaft

1шт.

18

3121849R2

SPRING

- return, pedal

1шт.

19

425-106

NUT,3/8"-16, Cl 5

3шт.

20

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

21

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

22

131783A2

STEM

ROD - support bracket

1шт.

23

27-8276

CLEVIS PIN,1/2" x 2.766"

PIN - button head, 1/2 x 2-3/4 inch

1шт.

24

REF

INSTRUCTION

CYLINDER - differential lock (See page 6-100)

1шт.

25

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

26

1330751C1

SPACER

- differential lock

1шт.

27

113934A4

SUPPORT

BRACKET - differential lock

1шт.

28

492-11038

LOCK WASHER,3/8"

1шт.

29

1500071C1

BOLT,Pivot, Hex, 9/16" - 12 x 57.50mm

- Bellcrank pivot

1шт.

30

729-1045

CLEVIS PIN,M10x 45

PIN - clevis, 10 mm x 45 mm

2шт.

31

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

32

117234A1

CLEVIS

LINK - differential lock

1шт.

33

733-3220

COTTER PIN,M3.2 x 20

PIN, SPLIT (COTTER), M3.2 x 20

2шт.

34

1537124C1

SUPPORT

BRACKET - switch mounting

1шт.

35

113932A4

LEVER ASSY.

LEVER - differential lock

1шт.

37

892-11010

LOCK WASHER,M10

1шт.

38

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

39

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

40

231262A1

SWITCH

- plunger, 18 mm

1шт.

41

1332725C1

NUT

M18

1шт.

42

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x Adj O-Ring boss, Includes: Ref. 43

1шт.

44

32-418

COTTER PIN,1/16" x 1 1/8"

PIN, SPLIT (COTTER), 1/16" x 1 1/8"

1шт.

45

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

36

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

2шт.

43

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
