Запчасти Case IH 4240 (6-090) - FORWARD AND REVERSE LOCKOUT CONTROLS, TRACTOR WITH CAB (06) - POWER TRAIN

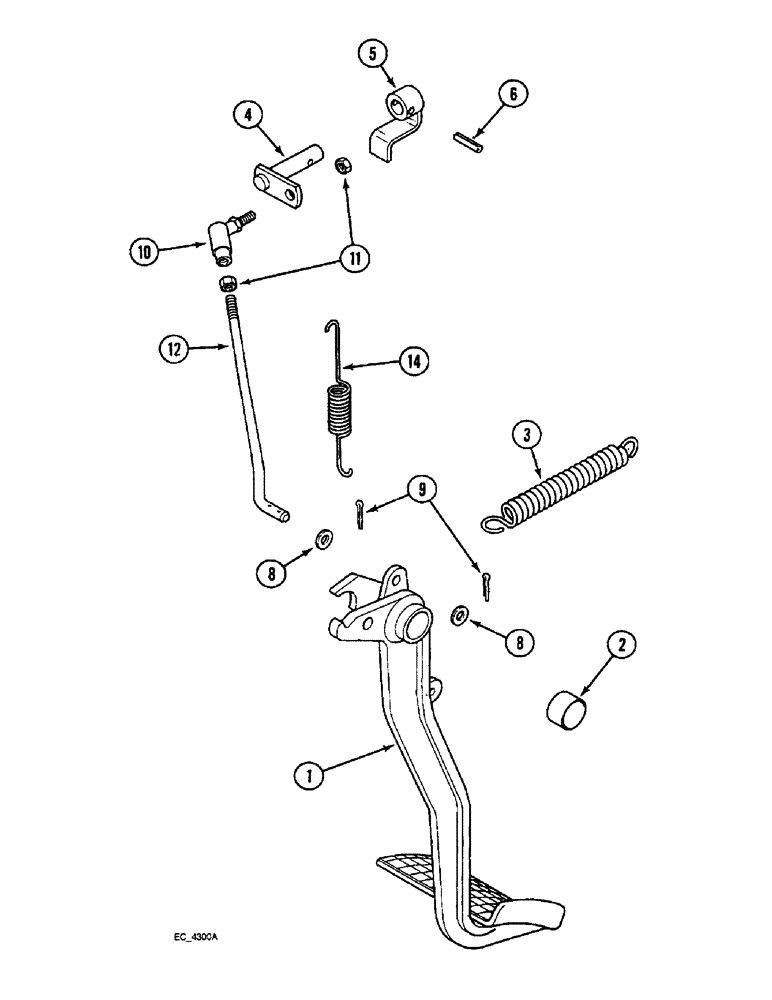

Схема запчастей Case IH 4240 - (6-090) - FORWARD AND REVERSE LOCKOUT CONTROLS, TRACTOR WITH CAB (06) - POWER TRAIN
2
8
6
11
1
14
3
9
10
12
5
4
8

Артикул

Название

Примечание

Количество

1

1343120C3

PEDAL ASSY.

PEDAL ASSEMBLY - clutch, (Forward and reverse attachment), Includes: Ref. 2

1шт.

2

3226548R1

BUSHING

- pedal, clutch pedal

1шт.

3

2783696R1

SPRING

- tension

1шт.

4

1985224C3

SHAFT

ASSEMBLY - lockout pivot

1шт.

5

1985227C1

ARM

ASSEMBLY - lockout pivot

1шт.

6

38-31212

PIN,3/16" x 3/4", Coiled

1шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

9

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

10

A19105

BALL JOINT

JOINT - ball, 5/16 inch NF

1шт.

11

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

12

1985229C2

STEM

ROD - lockout

1шт.

14

104746A1

SPRING

- lockout

1шт.

Выбрано товаров: 12
