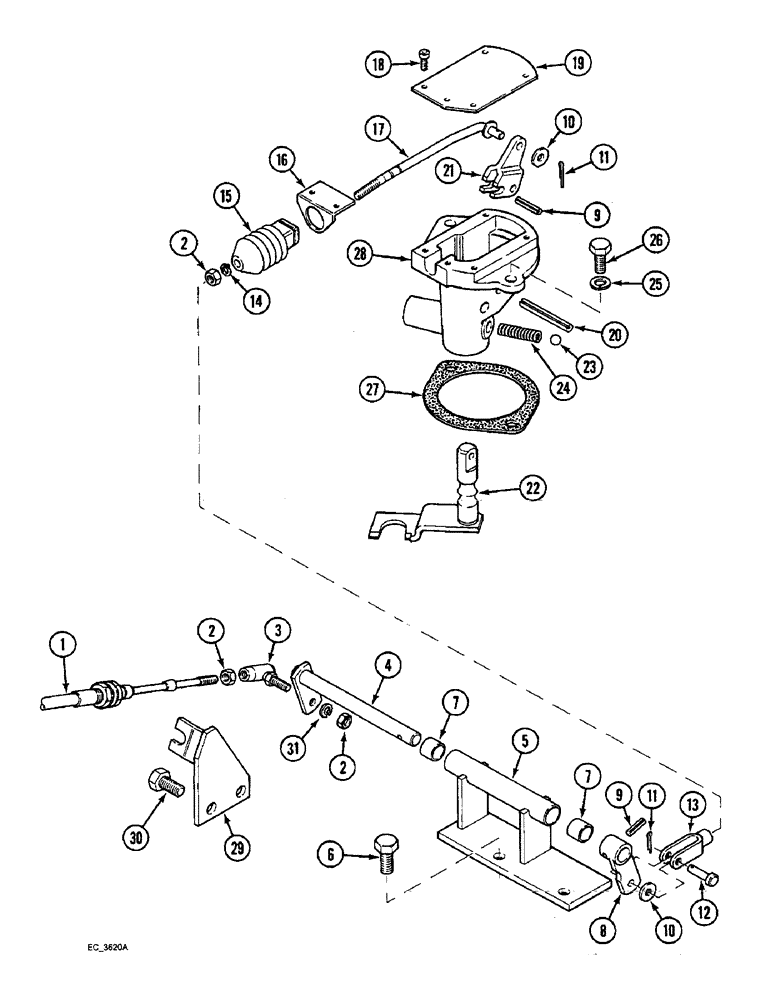

Запчасти Case IH 4240 (6-088) - FORWARD AND REVERSE CONTROLS, LOWER, TRACTOR WITH CAB (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
1343006C1
FLEXIBLE CONTROL
CABLE - control, forward and reverse
1шт.
2
425-114
NUT,1/4"-28, G5
3шт.
3
276835R91
BALL JOINT,1/4" - 28 x 1"
JOINT - ball C type, 1/4 inch
3шт.
4
1343000C1
SHAFT
- pivot, lower
1шт.
5
1975396C2
SUPPORT
BRACKET ASSEMBLY - lower pivot
1шт.
6
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
7
3234944R1
BUSHING
- cylinder
2шт.
8
1343003C1
ARM
- lower, inner
1шт.
9
38-31212
PIN,3/16" x 3/4", Coiled
2шт.
10
95-11028
WASHER,1/4"
- flat, 9/32 x 5/8 x 1/16 inch
2шт.
12
427-4077
CLEVIS PIN,1/4" x .770"
PIN, CLEVIS, , Hardened 1/4" x .770"
1шт.
13
1985286C1
ADJUSTABLE CLEVIS
CLEVIS - adjustalbe, 1/4 NF x 1-11/16 inch
1шт.
14
100-3325
SNAP RING,#25, .207" Dia, E-Type
Ring, Retaining, #25, .207" Dia, E-Type
2шт.
15
1343099C1
BELLOWS
BOOT - dust protection
1шт.
16
1343122C1
SUPPORT
BRACKET - mounting, dust boot
1шт.
17
1975392C2
STEM
ROD ASSEMBLY - Bellcrank control
1шт.
18
940-148
SCREW,Pan Cross Recess, M4 x 8mm, Cl 4.8
- pan head cross recessed, 4 x 8 mm
5шт.
19
1975395C1
COVER
- forward
1шт.
20
19795R1
PIN,1/4" x 1 3/4", Coiled
1шт.
21
1975389C1
DRIVE, ANGLE
BELLCRANK - forward and reverse control internal
1шт.
22
1975385C1
LEVER ASSY.
LEVER - forward and reverse control
1шт.
23
211-1014
BALL,7/16" Dia
- chrome alloy steel, 7/16 inch, grade 24
1шт.
24
402596R1
SPRING
- control
1шт.
25
92-11031
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
26
413-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
- hex, 5/16 NC x 5/8 inch
2шт.
27
1343019C1
GASKET
- control shaft support
1шт.
28
1975388C1
HOUSING
SUPPORT - forward and reverse shaft
1шт.
29
1343007C1
SUPPORT
BRACKET - lower cable support
1шт.
30
413-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
2шт.
31
92-11025
LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk
WASHER, LOCK, 1/4"
2шт.
Выбрано товаров: 31
