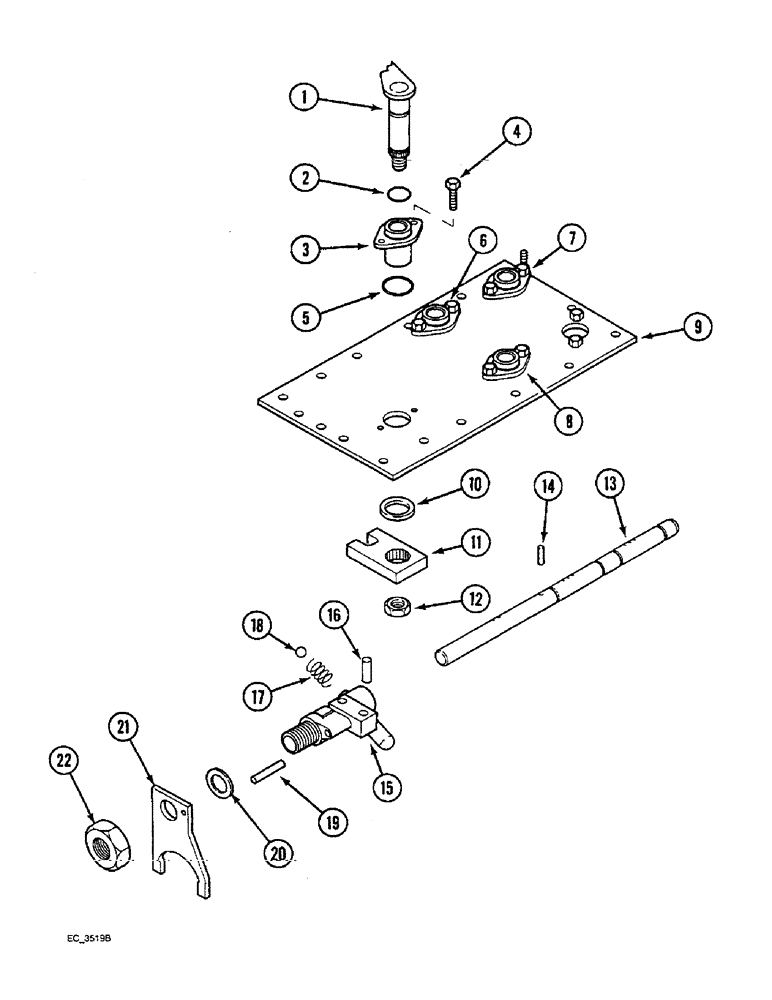

Запчасти Case IH 4240 (6-084) - CREEPER SHIFT CONTROL, INTERNAL (06) - POWER TRAIN

1

1343243C1

ARM ASSY.

ARM ASSEMBLY - creep shift actuating (Without cab) (See Figure 6-78)

1шт.

1

1343171C1

ARM ASSY.

ARM ASSEMBLY - actuating, shift (With cab) (See Figure 6-82)

1шт.

2

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

3129165R2

HOUSING

- speed shift arm, creeper

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

5

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1шт.

6

3129165R2

HOUSING

- speed shift arm, pivot interlock

1шт.

7

3129165R2

HOUSING

- speed shift arm, actuating 1st/2nd

1шт.

8

3129165R2

HOUSING

- speed shift arm, actuating 3rd/4th

1шт.

9

REF

INSTRUCTION

COVER - (With creeper) (Order components) (See Figure 6-6, 8)

1шт.

10

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

- flat, 23/32 x 1-1/4 x 3/64 inch

1шт.

11

1343174C1

ARM

- creeper shift

1шт.

12

131-208

SPECIAL NUT,1/2"-13

NUT - heavy hex, self - locking, 1/2 inch NC

1шт.

13

138434A2

RAIL

- creep shift

1шт.

14

38-21620

PIN,1/4" x 1 1/4", Coiled

1шт.

15

1343312C1

HUB ASSY.

HUB ASSEMBLY - shift fork, Includes: Ref. 16

1шт.

16

837-10030

DOWEL,M10 x 30

PIN - dowel, 10 x 32 mm

1шт.

17

103062C1

SPRING

- poppet ball, compression

1шт.

18

211-1013

BALL,10.31mm OD, Gr 24

- chrome alloy steel, 13/32 inch, grade 24

1шт.

19

38-11612

LOCK PIN,1/4" x 3/4", Slotted

Pin, 1/4" x 3/4", Slotted

1шт.

20

1343166C3

SHIM

- creep shift fork

1шт.

21

1343165C3

SHIFTER FORK

FORK - creep shift

1шт.

22

218-1249

BHD LOCK NUT,1-3/16" - 12

NUT - hex, lock, bulkhead, 1-3/16-12 inch NF

1шт.
