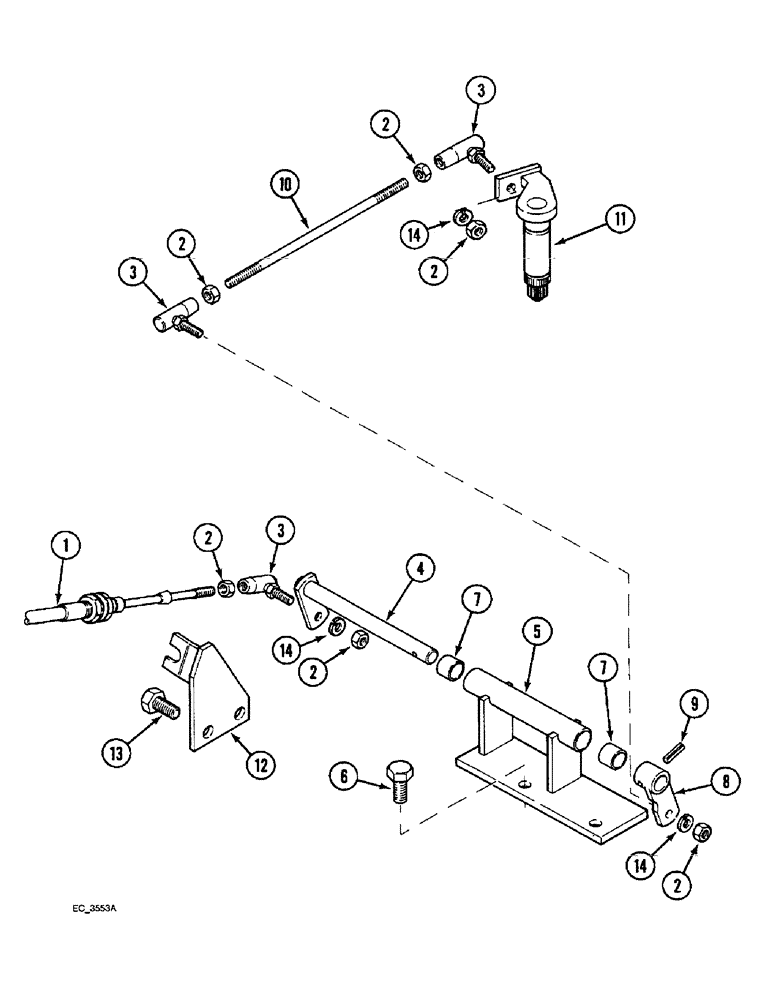

Запчасти Case IH 4240 (6-082) - CREEPER CONTROLS, LOWER, TRACTOR WITH CAB (06) - POWER TRAIN

1

1343006C1

FLEXIBLE CONTROL

CABLE - control, creeper

1шт.

2

425-114

NUT,1/4"-28, G5

6шт.

3

276835R91

BALL JOINT,1/4" - 28 x 1"

JOINT - ball C type, 1/4 inch

3шт.

4

1343000C1

SHAFT

- pivot, lower

1шт.

5

1975396C2

SUPPORT

BRACKET ASSEMBLY - lower pivot

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

3234944R1

BUSHING

- cylinder

2шт.

8

1343003C1

ARM

- lower, inner

1шт.

9

38-31212

PIN,3/16" x 3/4", Coiled

1шт.

10

1343170C1

STEM

ROD - creeper actuator

1шт.

11

1343171C1

ARM ASSY.

ARM ASSEMBLY - actuating, creeper speed

1шт.

12

1343007C1

SUPPORT

BRACKET - lower cable support

1шт.

13

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

14

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

3шт.
