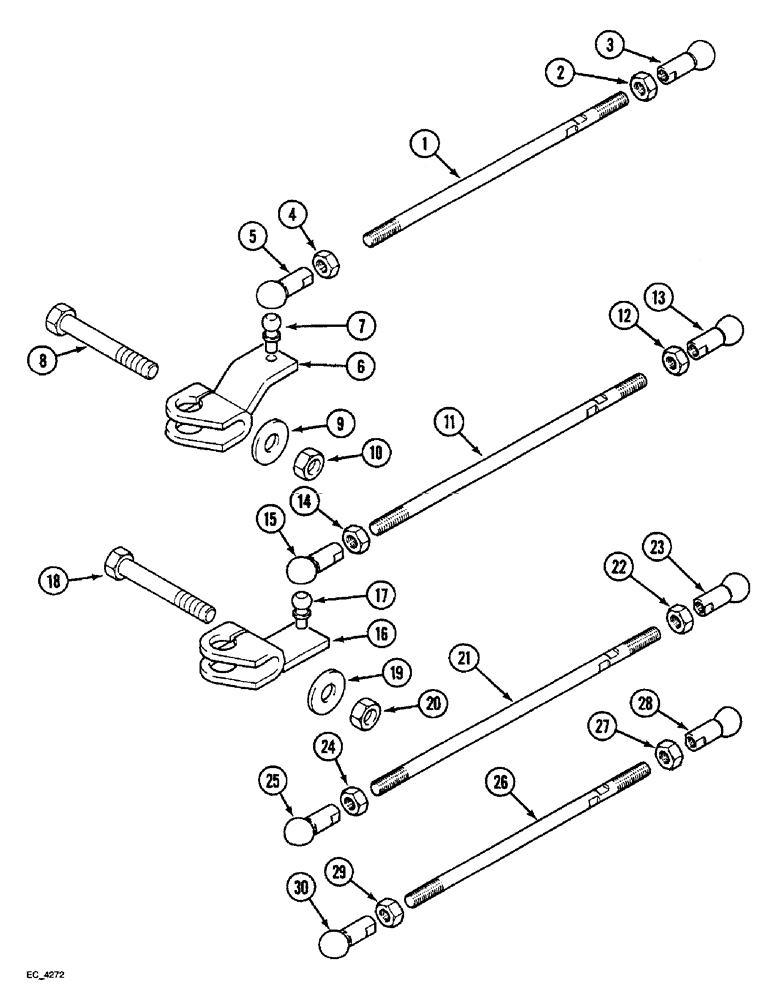

Запчасти Case IH 4240 (6-074) - TRANSMISSION SHIFT CONTROL, EXTERNAL, TRACTOR WITH CAB (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - range, lo/rev, Includes: Ref. 1 - 5

1шт.

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - range, lo/hi, Includes: Ref. 1 - 5

1шт.

1

117798A1

STEM

ROD ASSEMBLY - range, lo/rev

1шт.

1

118560A2

STEM

ROD ASSEMBLY - range, lo/hi (With forward and reverse)

1шт.

2

906014R1

THIN NUT,Thin, M10 x 1.5, Cl 04, LH

- hex, left hand thread, 10 mm

1шт.

3

125218A2

BALL JOINT

SOCKET - ball joint, left hand thread, 10 mm

1шт.

4

934300R1

THIN NUT,Thin, M10 x 1.5, Cl 04

- hex, 10 mm

1шт.

5

125217A2

BALL JOINT

SOCKET - ball joint, 10 mm

1шт.

6

179150A3

LEVER ASSY.

LEVER ASSEMBLY - range, lo/rev, Includes: Ref. 7

1шт.

7

3234708R1

BALL STUD

BALL - rev

1шт.

8

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

10

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

1шт.

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - range, hi, Includes: Ref. 11 - 15

1шт.

11

117799A1

STEM

ROD - range, hi

1шт.

12

906014R1

THIN NUT,Thin, M10 x 1.5, Cl 04, LH

- hex, left hand thread, 10 mm

1шт.

13

125218A2

BALL JOINT

SOCKET - ball joint, left hand thread, 10 mm

1шт.

14

934300R1

THIN NUT,Thin, M10 x 1.5, Cl 04

- hex, 10 mm

1шт.

15

125217A2

BALL JOINT

SOCKET - ball joint, 10 mm

1шт.

16

179147A3

LEVER ASSY.

LEVER ASSEMBLY - range, hi, Includes: Ref. 17

1шт.

17

3234708R1

BALL STUD

BALL - left hand thread

1шт.

18

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

20

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

1шт.

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - speed, 1/2, Includes: Ref. 21 - 25

1шт.

21

117800A1

STEM

ROD - range, 1/2

1шт.

22

906014R1

THIN NUT,Thin, M10 x 1.5, Cl 04, LH

- hex, left hand thread, 10 mm

1шт.

23

125218A2

BALL JOINT

SOCKET - ball joint, left hand thread, 10 mm

1шт.

24

934300R1

THIN NUT,Thin, M10 x 1.5, Cl 04

- hex, 10 mm

1шт.

25

125217A2

BALL JOINT

SOCKET - ball joint, 10 mm

1шт.

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - speed, 3/4, Includes: Ref. 26 - 30

1шт.

26

117801A1

STEM

ROD - range, 3/4

1шт.

27

906014R1

THIN NUT,Thin, M10 x 1.5, Cl 04, LH

- hex, left hand thread, 10 mm

1шт.

28

125218A2

BALL JOINT

SOCKET - ball joint, left hand thread, 10 mm

1шт.

29

934300R1

THIN NUT,Thin, M10 x 1.5, Cl 04

- hex, 10 mm

1шт.

30

125217A2

BALL JOINT

SOCKET - ball joint, 10 mm

1шт.
