Запчасти Case IH 4240 (6-066) - TRANSMISSION SPEED SHIFT CONTROL, INTERNAL, TRACTOR WITH CAB (06) - POWER TRAIN

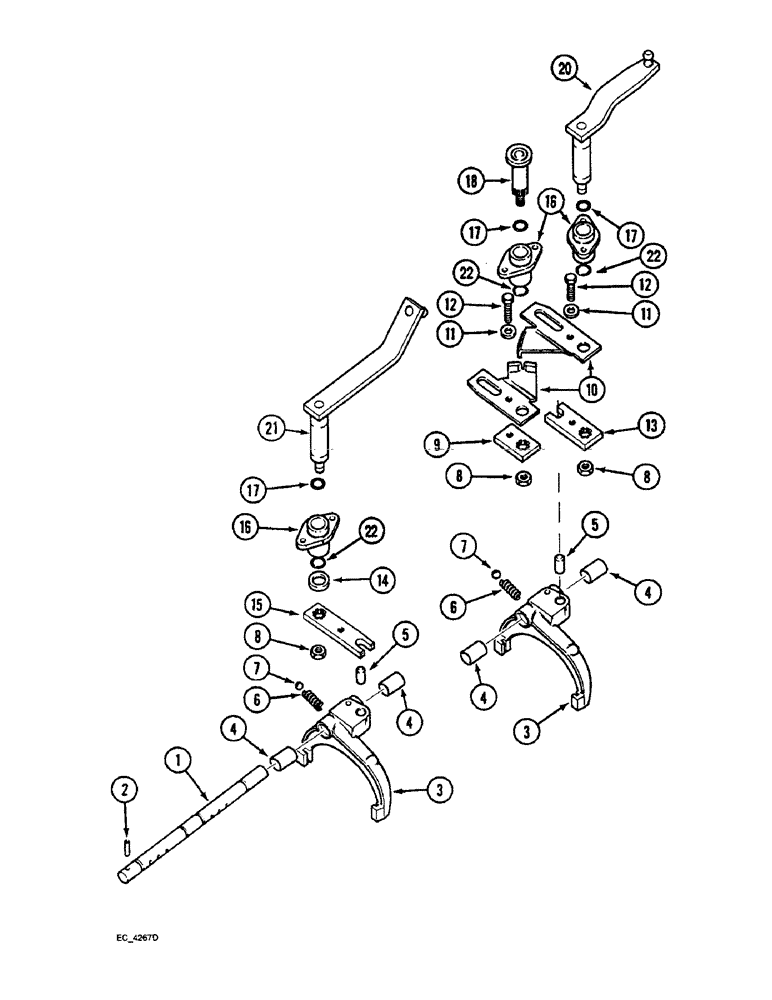

Схема запчастей Case IH 4240 - (6-066) - TRANSMISSION SPEED SHIFT CONTROL, INTERNAL, TRACTOR WITH CAB (06) - POWER TRAIN
16
13
21
22
3
4
22
5
5
20
9
4
8
4
7
3
6
10
11
8
8
17
4
6
16
11
2
18
17
12
14
22
17
15
1
12
7

Артикул

Название

Примечание

Количество

1

138328A2

RAIL

- speed shift fork

1шт.

2

38-21620

PIN,1/4" x 1 1/4", Coiled

1шт.

3

194982A1

SHIFTER FORK

FORK ASSEMBLY - gear shift, speed train, Includes: Ref. 4 and 5

2шт.

4

193380A1

BUSHING

- 3/4 x 3/8 inch

4шт.

5

1500656C1

DOWEL

PIN - Chamfered Dowel, 1/2 x 2-1/4 inch

1шт.

6

103062C1

SPRING

- poppet ball, shift, detent

2шт.

7

211-1013

BALL,10.31mm OD, Gr 24

- chrome alloy steel, 13/32 inch, grade 24

2шт.

8

131-208

SPECIAL NUT,1/2"-13

NUT - heavy hex, self-locking, 1/2 inch NC

3шт.

9

1277031C1

LARGE PLATE

PLATE - interlock arm support

1шт.

10

1500249C2

LARGE PLATE

PLATE - interlock

2шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

12

628-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

13

3129167R2

ARM

- speed shift, 1st/2nd

1шт.

14

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

- flat, 23/32 x 1-1/4 x 3/64 inch

1шт.

15

3129171R2

ARM

- speed shift, 3rd/4th

1шт.

16

3129165R2

HOUSING

- speed shift arm

3шт.

17

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

18

1277030C1

PIVOT ASSY.

PIVOT - interlock

1шт.

20

115903A1

ARM ASSY.

ARM - speed shift actuating, 1st/2nd

1шт.

21

115905A1

ARM ASSY.

ARM - speed shift actuating, 3rd/4th

1шт.

22

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

3шт.

Выбрано товаров: 21
