Запчасти Case IH 4240 (6-058) - TRANSMISSION SPEED SHIFT CONTROL, TRACTOR WITHOUT CAB (06) - POWER TRAIN

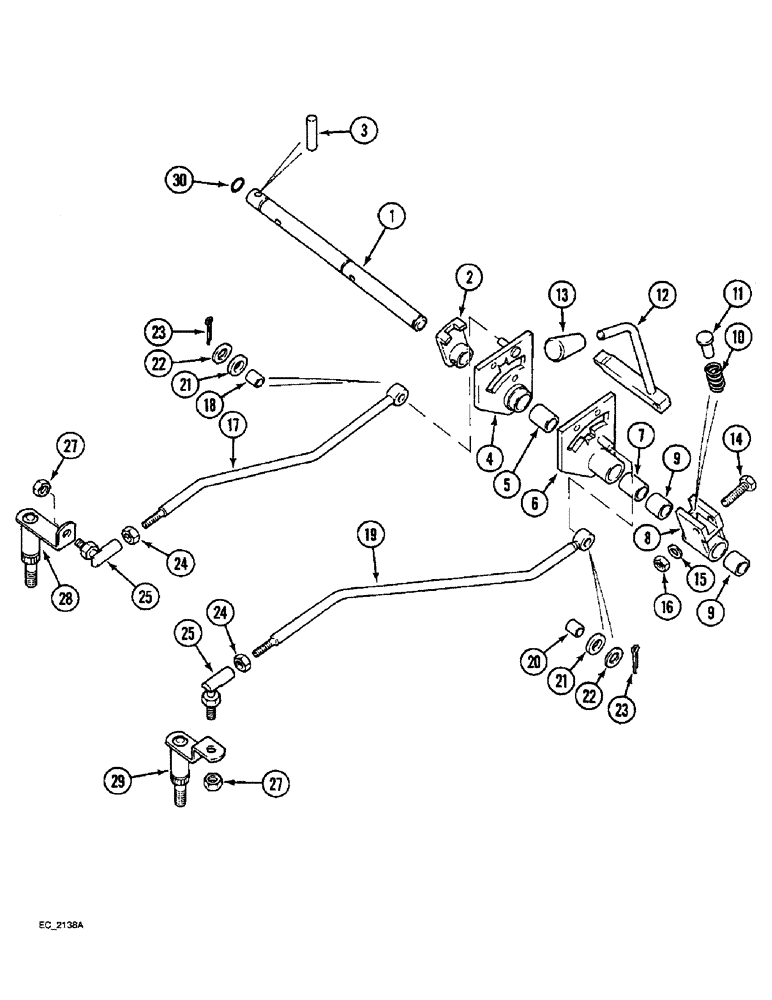

Схема запчастей Case IH 4240 - (6-058) - TRANSMISSION SPEED SHIFT CONTROL, TRACTOR WITHOUT CAB (06) - POWER TRAIN
18
3
4
23
30
2
17
23
8
5
27
7
9
16
9
25
10
12
11
15
24
24
27
14
21
22
19
29
13
6
25
20
28
22
1

Артикул

Название

Примечание

Количество

1

3129155R2

SHAFT

- idle, range shift lever (Without forward and reverse)

1шт.

1

3129270R1

SHAFT

- idle, range shift lever (With forward and reverse)

1шт.

2

3129218R2

PLATE

GATE ASSEMBLY - shift

1шт.

3

38-32028

PIN,7.92mm OD x 44.45mm L

2шт.

4

3129211R92

LEVER

ASSEMBLY - speed shift, 1st/2nd, Includes: Ref. 5

1шт.

5

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

1шт.

6

3129217R92

LEVER

ASSEMBLY - speed shift, 3rd/4th, Includes: Ref. 7

1шт.

7

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

1шт.

8

3129214R93

HOUSING ASSY.

HOUSING ASSEMBLY - selector arm Includes: Ref. 9

1шт.

9

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

- housing

2шт.

10

71486C1

SPRING

- compression

1шт.

11

439-158

HEADED PIN,5/16" x 1/2"

PIN - headed, 5/16 x 1/2 inch, grade 2

1шт.

12

3129265R5

LEVER

ASSEMBLY - speed shift

1шт.

13

1265215C1

BALL KNOB

KNOB - speed shift lever

1шт.

14

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

- Selector arm pivot

1шт.

15

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

1шт.

16

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

17

3129222R91

ROD ASSY.

ROD ASSEMBLY - speed shift, 1st/2nd, Includes: Ref. 18

1шт.

18

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

- rod end

1шт.

19

3129226R92

ROD ASSY.

ROD ASSEMBLY - speed shift, 3rd/4th, Includes: Ref. 20

1шт.

20

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

- rod end

1шт.

21

83723R1

WAVE WASHER

- spring

2шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

23

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

24

1500536C1

JAM NUT

- hex, jam 7/16 inch NF

2шт.

25

1500497C1

BALL JOINT

JOINT - ball, 7/16 inch

2шт.

27

274841

BEARING CONE,2.9528" ID x 0.9843"

NUT - hex lock, 7/16 inch NF

2шт.

27

131-181

LOCK NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8 inch NF (Optional to 274841)

2шт.

28

3129166R1

ARM ASSY.

ARM ASSEMBLY - speed shift actuating, 1st/2nd (See Figure 6-64)

1шт.

29

3129172R2

ARM ASSY.

ARM ASSEMBLY - speed shift actuating, 3rd/4th (See Figure 6-64)

1шт.

30

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

Выбрано товаров: 31
