Запчасти Case IH 4240 (6-056) - CLUTCH HYDRAULIC CYLINDERS, TRACTOR WITH CAB, CLUTCH MASTER CYLINDER (06) - POWER TRAIN

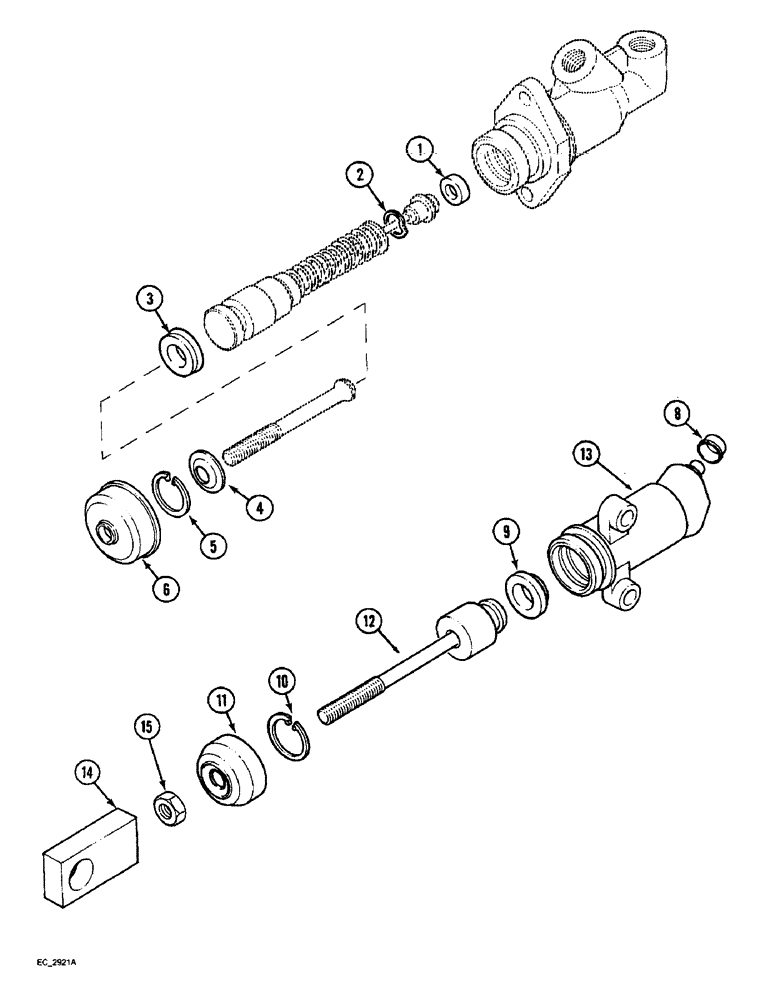

Схема запчастей Case IH 4240 - (6-056) - CLUTCH HYDRAULIC CYLINDERS, TRACTOR WITH CAB, CLUTCH MASTER CYLINDER (06) - POWER TRAIN
12
3
13
2
10
15
11
1
14
6
4
8
5
9

Артикул

Название

Примечание

Количество

3129807R92

MASTER CYLINDER

CYLINDER - clutch master, Includes: Ref. 1 - 6

1шт.

86011371R

REMAN-MASTER CYLINDE

4210, 4230, 4240, All CASE IH TRACTOR (NORTH AMERICA), Cylinder Clutch Master, W/ Cab (1/94-12/98), Reman for New PN 3129807R92

1шт.

86011371C

CORE-MASTER CYLINDER

Return Number

1шт.

N7602

GASKET KIT

KIT - service, clutch master cylinder (Replaces 80327C91), Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL - valve, clutch master cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - spring, clutch master cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - gland, clutch master cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - retaining, clutch master cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, clutch master cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - dust, clutch master cylinder

1шт.

3129799R92

MASTER CYLINDER

CYLINDER - clutch slave, Includes: Ref. 8 - 15

1шт.

3129800R92

MASTER CYLINDER

CYLINDER - slave, Includes: Ref. 8 - 13

1шт.

80318C91

GASKET KIT

KIT - service, slave cylinder, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

CAP - dust, clutch slave cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - gland, clutch slave cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

RING - retaining, clutch slave cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

COVER - dust, clutch slave cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

ROD - piston, clutch slave cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - cylinder, clutch slave cylinder

1шт.

14

3129801R1

CLEVIS

EYE - connecting, clutch slave cylinder

1шт.

15

824-1410

NUT,M10, Cl 5

- hex, clutch slave cylinder

1шт.

Выбрано товаров: 21
